Magnitude |
:2.7 |
| Date & Time (UTC) | 2016-06-22 19:00:20.9 |
| Date & Time (Local) | 1395/4/2 23:30:20.9 |

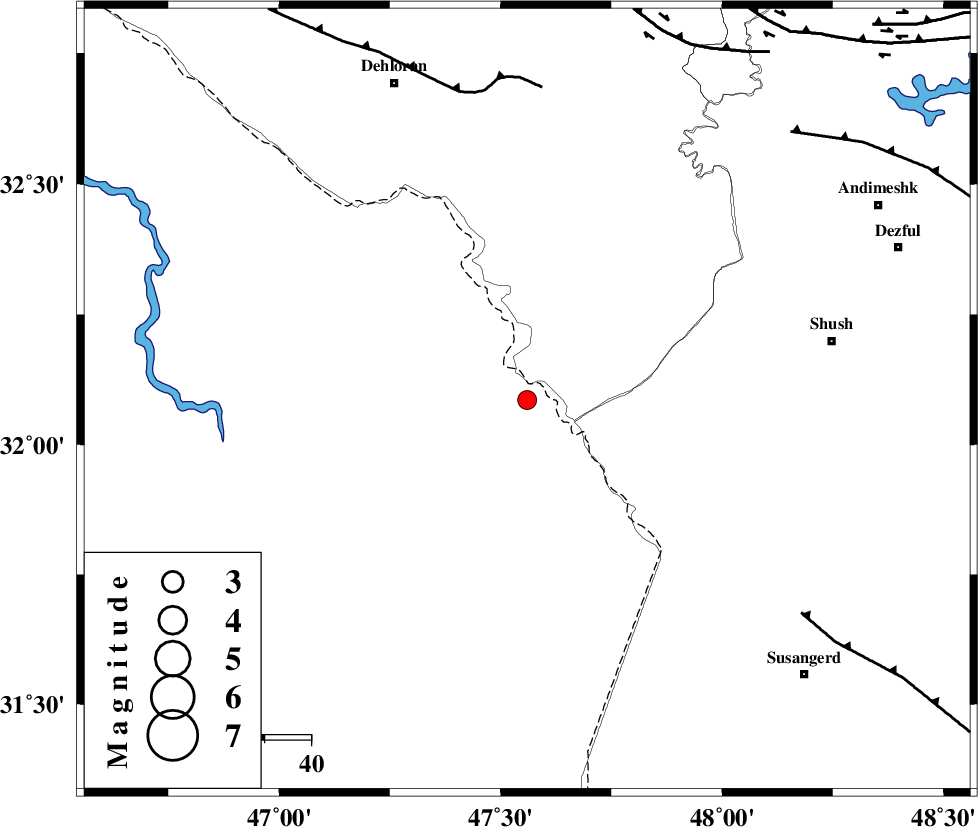

| Location | Lat:32.086 Lon: 47.56 |
| Region | Iraq, 66 km South-West of Shush |
Nearest Cities |
|
| 54 km South East of Musian, Ilam Province | |
| 57 km North West of Bostan, Khoozestan Province | |
| 66 km South West of Shush, Khoozestan Province | |
| 69 km West of Amaleh teimur, Khoozestan Province | |
| 73 km South East of Dehloran, Ilam Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| MFF6 (Length: 144 km) , Distance to epicenter: 66 km | |
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 74 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 80 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | >9.6 km |
| Error in Longitude | 8 km |
| Error in Depth | 13.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 106986 | IIEES | SNGE | N | 21 | 0.44 | 2016-06-22 19:01:58 | 2016-06-25 09:12:00 | n |
| 106987 | IIEES | SNGE | E | 16.8 | 0.54 | 2016-06-22 19:01:59 | 2016-06-25 09:12:00 | n |
| 106988 | IIEES | ASAO | E | 11.1 | 0.55 | 2016-06-22 19:02:00 | 2016-06-25 09:12:00 | n |
| 106989 | IIEES | ASAO | N | 12.1 | 0.61 | 2016-06-22 19:02:16 | 2016-06-25 09:12:00 | n |
| 106990 | IIEES | GHVR | E | 8.9 | 0.38 | 2016-06-22 19:02:11 | 2016-06-25 09:12:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pn | E | 2016-06-22 19:01:04 | 0.02 | y | 290 | 50 | |||
| IIEES | SNGE | Z | Pn | E | 2016-06-22 19:01:09 | 0 | y | 334 | 357 | |||
| IIEES | SNGE | N | Sg | E | 2016-06-22 19:01:54 | 0 | y | 334 | 357 | |||
| IIEES | ASAO | Z | Pn | E | 2016-06-22 19:01:12 | 0.04 | y | 357 | 39 | |||
| IIEES | GHVR | Z | Pn | E | 2016-06-22 19:01:22 | -0.12 | y | 434 | 51 | |||
| IIEES | NASN | Z | Pn | E | 2016-06-22 19:01:30 | 0.06 | y | 500 | 79 | |||
