Magnitude |
:3.3 |
| Date & Time (UTC) | 2016-06-28 12:03:24.8 |
| Date & Time (Local) | 1395/4/8 16:33:24.8 |

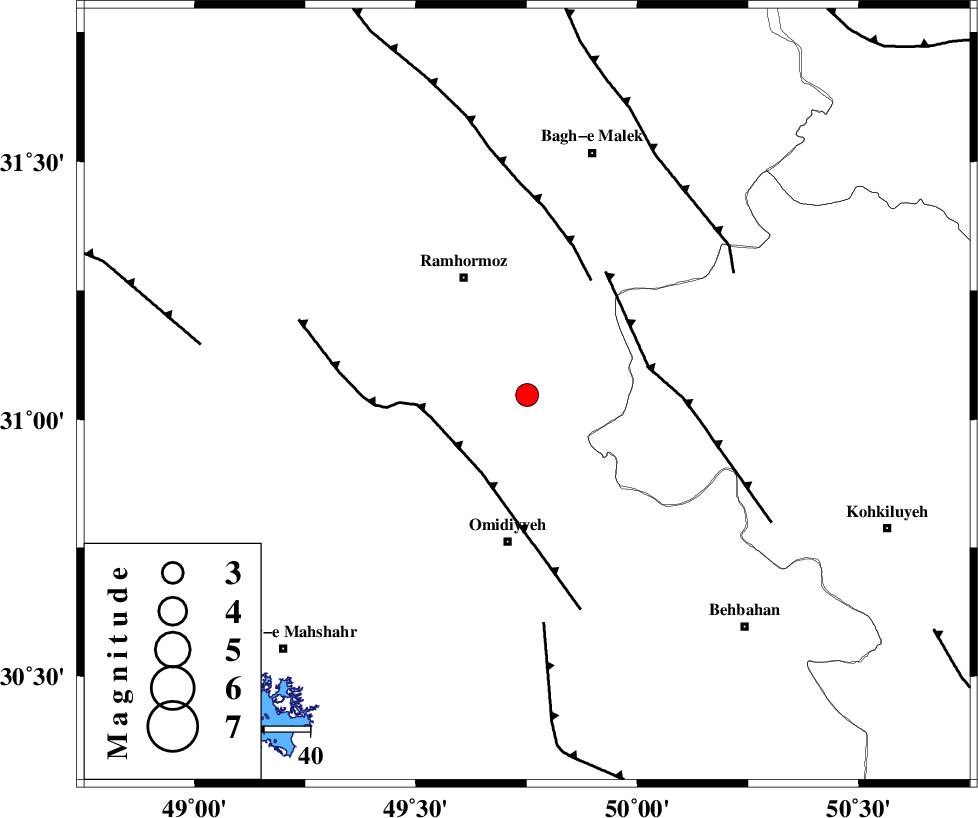

| Location | Lat:31.047 Lon: 49.751 |
| Region | Khoozestan Province, 32 km North of Omidiyeh |
Nearest Cities |
|
| 5 km of Soltanabad, Khoozestan Province | |
| 21 km North of Jayzan, Khoozestan Province | |
| 29 km South East of Ramhormoz, Khoozestan Province | |
| 30 km North West of Jolaki, Khoozestan Province | |
| 31 km North East of Meshrageh, Khoozestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| AGHAJARI_F (Length: 88 km) , Distance to epicenter: 19 km | |
| MFF4 (Length: 62 km) , Distance to epicenter: 27 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 28 km | |
| Number of Phases | 12 |
| RMS | 0.2 |
| Number of Stations | 11 |
| Error in Latitude | >2.8 km |
| Error in Longitude | 4.9 km |
| Error in Depth | 7.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 107102 | IIEES | AHRM | N | 69.9 | 0.52 | 2016-06-28 12:04:59 | 2016-06-29 08:55:00 | n |
| 107103 | IIEES | KHMZ | E | 134 | 0.53 | 2016-06-28 12:04:52 | 2016-06-29 08:55:00 | n |
| 107104 | IIEES | ASAO | N | 41.5 | 0.58 | 2016-06-28 12:05:23 | 2016-06-29 08:55:00 | n |
| 107105 | IIEES | ASAO | E | 35.6 | 0.64 | 2016-06-28 12:05:25 | 2016-06-29 08:55:00 | n |
| 107106 | IIEES | GHVR | E | 26.3 | 0.76 | 2016-06-28 12:05:31 | 2016-06-29 08:55:00 | n |
| 107107 | IIEES | SNGE | E | 36.6 | 0.44 | 2016-06-28 12:05:31 | 2016-06-29 08:55:00 | n |
| 107108 | IIEES | SNGE | N | 23.2 | 0.44 | 2016-06-28 12:05:31 | 2016-06-29 08:55:00 | n |
| 107109 | IIEES | DAMV | E | 12.1 | 0.58 | 2016-06-28 12:06:14 | 2016-06-29 08:55:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pn | E | 2016-06-28 12:04:07 | -0.01 | y | 284 | 148 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-06-28 12:04:09 | 0.06 | y | 299 | 4 | |||
| IIEES | KHMZ | E | Sg | E | 2016-06-28 12:04:49 | -0.07 | y | 299 | 4 | |||
| IIEES | NASN | Z | Pn | E | 2016-06-28 12:04:16 | 0.18 | y | 348 | 55 | |||
| IIEES | ASAO | Z | Pn | E | 2016-06-28 12:04:21 | 0.43 | y | 389 | 4 | |||
| IIEES | GHVR | Z | Pn | E | 2016-06-28 12:04:22 | -0.14 | y | 406 | 20 | |||
| IIEES | YZKH | Z | Pn | E | 2016-06-28 12:04:32 | 0.08 | y | 482 | 71 | |||
| IIEES | SNGE | Z | Pn | E | 2016-06-28 12:04:34 | -0.24 | y | 502 | 334 | |||
| IIEES | DAMV | Z | Pn | E | 2016-06-28 12:04:40 | 0.04 | y | 549 | 22 | |||
| IIEES | CHTH | Z | Pn | E | 2016-06-28 12:04:41 | -0.06 | y | 554 | 13 | |||
| IIEES | TABS | Z | Pn | E | 2016-06-28 12:05:05 | -0.53 | y | 751 | 65 | |||
| IIEES | SHRO | Z | Pn | E | 2016-06-28 12:05:11 | -0.12 | y | 801 | 45 | |||
