Magnitude |
:2.5 |
| Date & Time (UTC) | 2016-06-28 20:31:19.6 |
| Date & Time (Local) | 1395/4/9 01:01:19.6 |

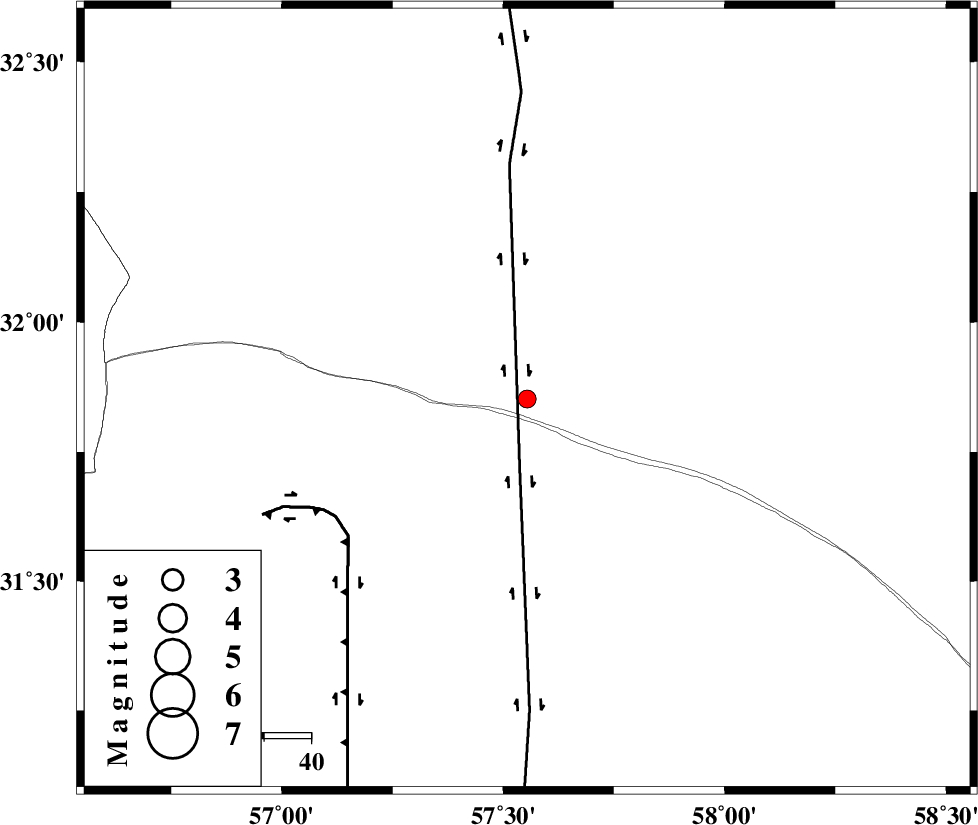

| Location | Lat:31.852 Lon: 57.554 |
| Region | Yazd Province, 96 km North-East of Ravar |
Nearest Cities |
|
| 35 km South East of Hoz-e qorban, Yazd Province | |
| 93 km North East of Dehali, Kerman Province | |
| 96 km North East of Ravar, Kerman Province | |
| 127 km North East of Asfih, Yazd Province | |
| 128 km North East of Ahmadi, Kerman Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| NAYBAND_F (Length: 258 km) , Distance to epicenter: 15 km | |
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 48 km | |
| ESFARDIAR_F (Length: 94 km) , Distance to epicenter: 117 km | |
| Number of Phases | 8 |
| RMS | 0.2 |
| Number of Stations | 6 |
| Error in Latitude | >2.3 km |
| Error in Longitude | 3.4 km |
| Error in Depth | 5.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 107151 | IIEES | KRBR | E | 27.9 | 0.21 | 2016-06-28 20:32:22 | 2016-06-29 08:55:00 | n |
| 107152 | IIEES | YZKH | E | 20.7 | 0.25 | 2016-06-28 20:32:40 | 2016-06-29 08:55:00 | n |
| 107153 | IIEES | YZKH | N | 13.9 | 0.42 | 2016-06-28 20:32:40 | 2016-06-29 08:55:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BSRN | Z | Pg | E | 2016-06-28 20:31:44 | 0.03 | y | 149 | 85 | |||
| IIEES | TABS | Z | Pg | E | 2016-06-28 20:31:52 | -0.18 | y | 203 | 349 | |||
| IIEES | TABS | E | Sg | E | 2016-06-28 20:32:17 | 0.25 | y | 203 | 349 | |||
| IIEES | KRBR | Z | Pn | E | 2016-06-28 20:31:54 | 0.12 | y | 221 | 200 | |||
| IIEES | YZKH | Z | Pn | E | 2016-06-28 20:32:06 | 4.1 | n | 4 | 286 | 283 | ||
| IIEES | SHRT | Z | Pn | E | 2016-06-28 20:32:07 | 0 | y | 325 | 51 | |||
| IIEES | NASN | Z | Pn | E | 2016-06-28 20:32:38 | 14.14 | n | 4 | 459 | 284 | ||
| IIEES | SHRO | Z | Pn | E | 2016-06-28 20:32:26 | -0.32 | y | 483 | 343 | |||
