Magnitude |
:2.7 |
| Date & Time (UTC) | 2016-07-04 11:05:01.8 |
| Date & Time (Local) | 1395/4/14 15:35:01.8 |
| Location | Lat:30.472 Lon: 50.167 |
| Region | Khoozestan Province, 16 km South of Behbahan |
Nearest Cities |
|
| 16 km South of Behbahan, Khoozestan Province | |
| 17 km North East of Darunak, Khoozestan Province | |
| 18 km North of Sardasht, Khoozestan Province | |
| 22 km South West of Mansuriyeh, Khoozestan Province | |
| 27 km South of Dodange-ye bozorg, Khoozestan Province | |
| Depth | 18 km |
| Agency | |

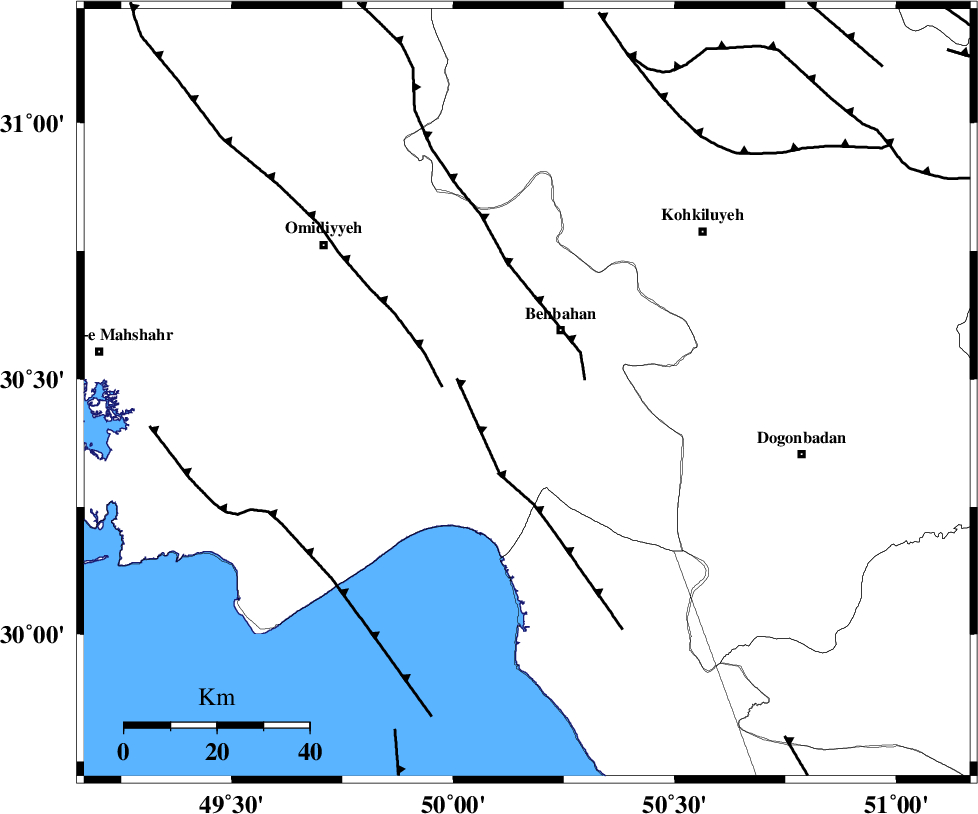

Faults within 150 km: |
|
| RAG_E_SEFID_F (Length: 84 km) , Distance to epicenter: 26 km | |
| AGHAJARI_F (Length: 88 km) , Distance to epicenter: 33 km | |
| MFF4 (Length: 62 km) , Distance to epicenter: 39 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 6 |
| Error in Latitude | >3 km |
| Error in Longitude | 5.5 km |
| Error in Depth | 9.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 107348 | IIEES | KHMZ | E | 8.3 | 0.63 | 2016-07-04 11:06:48 | 2016-07-05 05:54:00 | n |
| 107349 | IIEES | ASAO | N | 5.8 | 0.63 | 2016-07-04 11:07:16 | 2016-07-05 05:54:00 | n |
| 107350 | IIEES | SNGE | E | 4.2 | 0.48 | 2016-07-04 11:07:22 | 2016-07-05 05:54:00 | n |
| 107351 | IIEES | SNGE | N | 4.8 | 0.27 | 2016-07-04 11:07:27 | 2016-07-05 05:54:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pn | E | 2016-07-04 11:05:34 | -0.06 | y | 209 | 148 | |||
| IIEES | AHRM | N | Sg | E | 2016-07-04 11:06:01 | 0.03 | y | 209 | 148 | |||
| IIEES | NASN | Z | Pn | E | 2016-07-04 11:05:53 | -0.14 | y | 360 | 43 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-07-04 11:05:54 | 0.2 | y | 363 | 357 | |||
| IIEES | ASAO | Z | Pn | E | 2016-07-04 11:06:05 | 0.29 | y | 452 | 358 | |||
| IIEES | YZKH | Z | Pn | E | 2016-07-04 11:06:07 | -0.03 | y | 471 | 62 | |||
| IIEES | SNGE | Z | Pn | E | 2016-07-04 11:06:20 | -0.37 | y | 576 | 333 | |||
