Magnitude |
:2.2 |
| Date & Time (UTC) | 2016-07-11 10:44:44.1 |
| Date & Time (Local) | 1395/4/21 15:14:44.1 |
| Location | Lat:31.269 Lon: 56.375 |
| Region | Kerman Province, 42 km -West of Ravar |
Nearest Cities |
|
| 13 km of Jor, Kerman Province | |
| 14 km North of Toghroljerd, Kerman Province | |
| 18 km South of Kuhbanan, Kerman Province | |
| 29 km North West of Dasht-e khak, Kerman Province | |
| 38 km North West of Ahmadi, Kerman Province | |
| Depth | 14 km |
| Agency | |

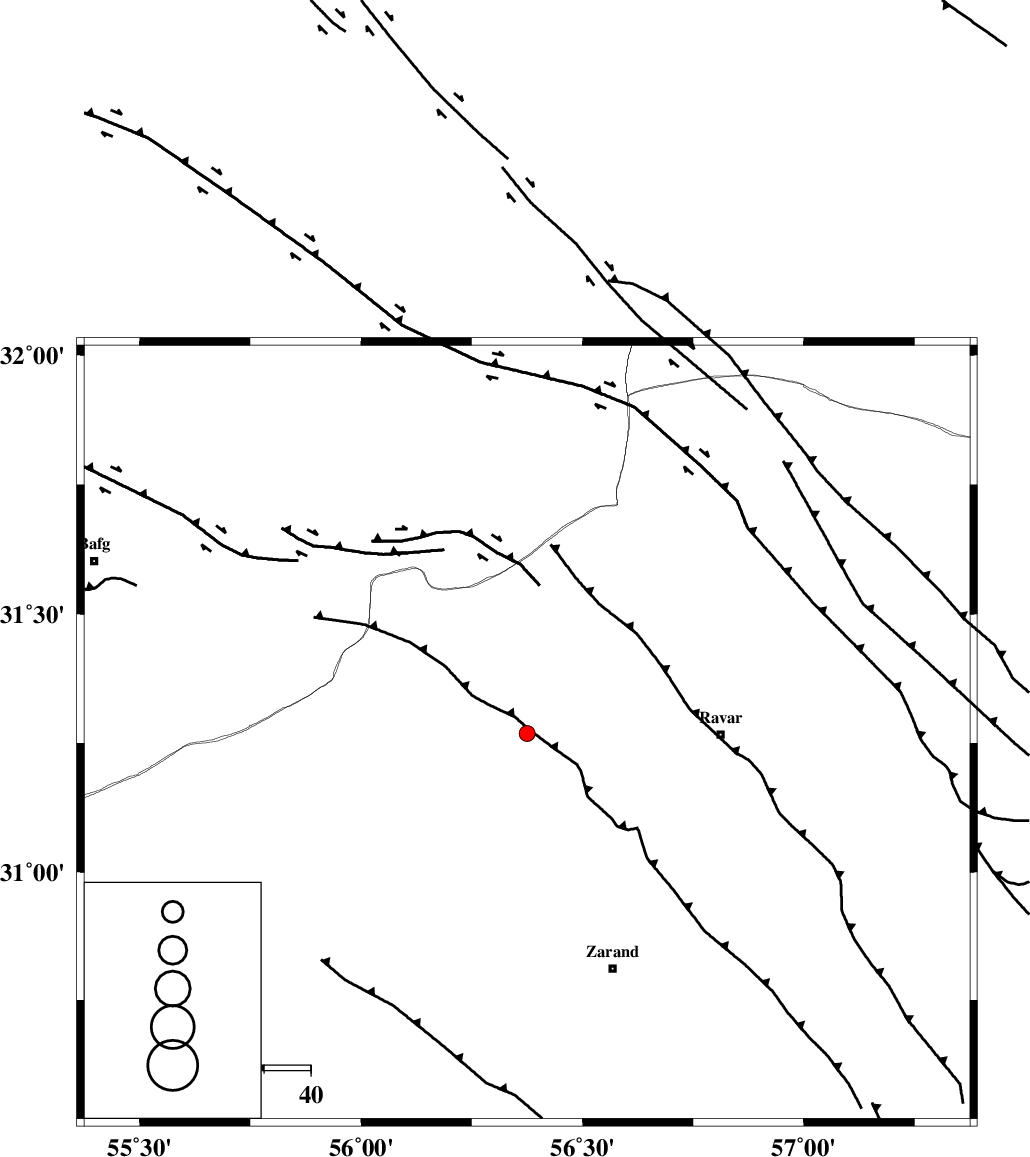

Faults within 150 km: |
|
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 12 km | |
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 50 km | |
| DARIVAN_F (Length: 131 km) , Distance to epicenter: 57 km | |
| Number of Phases | 7 |
| RMS | 0.3 |
| Number of Stations | 6 |
| Error in Latitude | >3.9 km |
| Error in Longitude | 4.1 km |
| Error in Depth | 7.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 107540 | IIEES | KRBR | N | 40.4 | 0.15 | 2016-07-11 10:45:27 | 2016-07-12 06:57:00 | n |
| 107541 | IIEES | KRBR | E | 33.8 | 0.18 | 2016-07-11 10:45:28 | 2016-07-12 06:57:00 | n |
| 107542 | IIEES | YZKH | E | 21.8 | 0.28 | 2016-07-11 10:45:45 | 2016-07-12 06:57:00 | n |
| 107543 | IIEES | YZKH | N | 26 | 0.39 | 2016-07-11 10:45:48 | 2016-07-12 06:57:00 | n |
| 107544 | IIEES | NASN | N | 3 | 0.43 | 2016-07-11 10:46:35 | 2016-07-12 06:57:00 | n |
| 107545 | IIEES | NASN | E | 2.8 | 0.43 | 2016-07-11 10:46:39 | 2016-07-12 06:57:00 | n |
| 107546 | IIEES | SHRO | E | 1.9 | 0.63 | 2016-07-11 10:47:26 | 2016-07-12 06:57:00 | n |
| 107547 | IIEES | SHRO | N | 1.2 | 0.49 | 2016-07-11 10:47:29 | 2016-07-12 06:57:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2016-07-11 10:45:08 | 0.01 | y | 147 | 165 | |||
| IIEES | YZKH | Z | Pn | E | 2016-07-11 10:45:18 | 0.18 | y | 210 | 307 | |||
| IIEES | YZKH | N | Sg | E | 2016-07-11 10:45:43 | -0.24 | y | 210 | 307 | |||
| IIEES | BSRN | Z | Pn | E | 2016-07-11 10:45:25 | -0.25 | y | 272 | 73 | |||
| IIEES | TABS | Z | P | E | 2016-07-11 10:45:25 | -0.1 | y | 273 | 15 | |||
| IIEES | NASN | Z | Pn | E | 2016-07-11 10:45:38 | 0.01 | y | 377 | 298 | |||
| IIEES | SHRO | Z | Pn | E | 2016-07-11 10:45:57 | 0.6 | y | 527 | 356 | |||
