Magnitude |
:3.5 |
| Date & Time (UTC) | 2016-07-15 17:20:15.1 |
| Date & Time (Local) | 1395/4/25 21:50:15.1 |

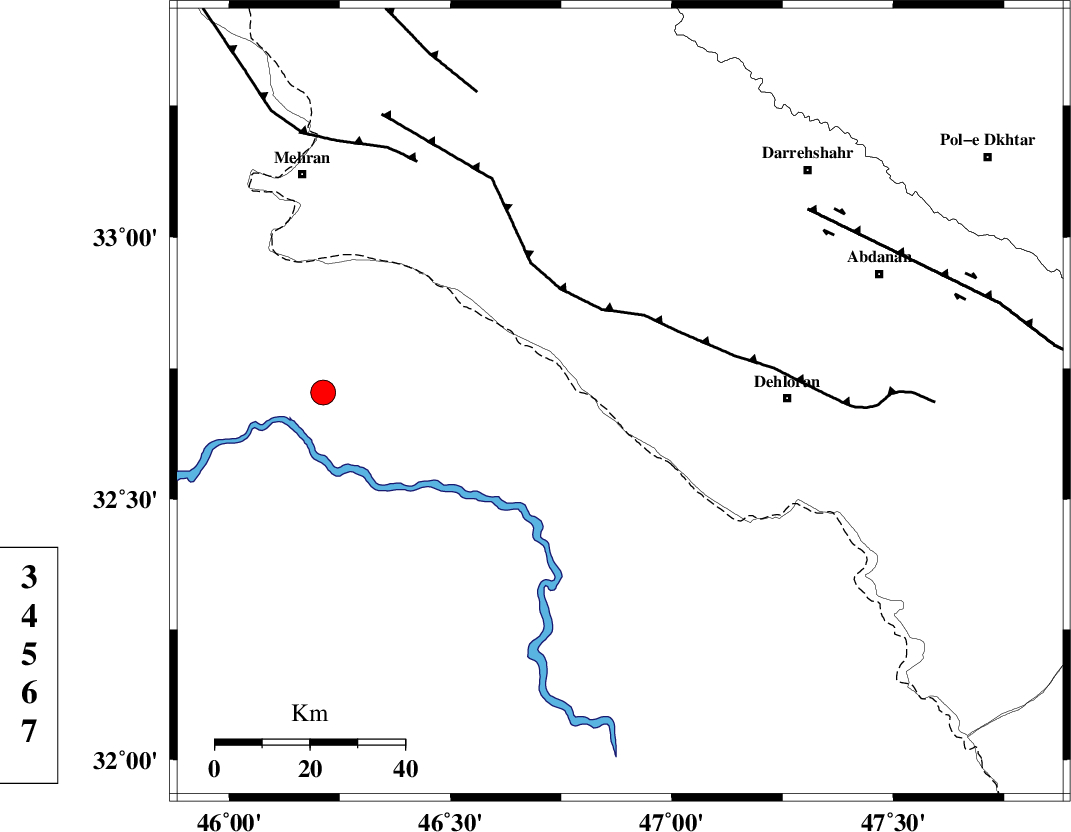

| Location | Lat:32.685 Lon: 46.883 |
| Region | Ilam Province, 35 km -West of Dehloran |
Nearest Cities |
|
| 18 km South of Bishehzar, Ilam Province | |
| 35 km West of Dehloran, Ilam Province | |
| 47 km North West of Musian, Ilam Province | |
| 61 km South of Meymeh, Ilam Province | |
| 61 km South West of Abdanan, Ilam Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MFF6 (Length: 144 km) , Distance to epicenter: 19 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 57 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 67 km | |
| Number of Phases | 16 |
| RMS | 0.4 |
| Number of Stations | 14 |
| Error in Latitude | >6.4 km |
| Error in Longitude | 4.8 km |
| Error in Depth | 7.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 107582 | IIEES | ASAO | E | 92.1 | 0.69 | 2016-07-15 17:22:05 | 2016-07-16 05:40:00 | n |
| 107583 | IIEES | ASAO | N | 76.3 | 0.59 | 2016-07-15 17:22:16 | 2016-07-16 05:40:00 | n |
| 107584 | IIEES | GHVR | E | 79.8 | 0.64 | 2016-07-15 17:22:19 | 2016-07-16 05:40:00 | n |
| 107585 | IIEES | NASN | E | 16.8 | 0.5 | 2016-07-15 17:22:40 | 2016-07-16 05:40:00 | n |
| 107586 | IIEES | NASN | N | 18.1 | 0.33 | 2016-07-15 17:22:41 | 2016-07-16 05:40:00 | n |
| 107587 | IIEES | DAMV | E | 14 | 0.66 | 2016-07-15 17:23:06 | 2016-07-16 05:40:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SNGE | Z | Pn | E | 2016-07-15 17:20:56 | -0.09 | y | 270 | 9 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-07-15 17:21:01 | 0.09 | y | 310 | 67 | |||
| IIEES | KHMZ | E | Sg | E | 2016-07-15 17:21:42 | -0.1 | y | 310 | 67 | |||
| IIEES | ASAO | Z | Pn | E | 2016-07-15 17:21:08 | 0.86 | y | 357 | 54 | |||
| IIEES | GHVR | Z | Pn | E | 2016-07-15 17:21:18 | -0.05 | y | 451 | 63 | |||
| IIEES | GHVR | N | S | E | 2016-07-15 17:22:05 | 0.01 | y | 451 | 63 | |||
| IIEES | ZNJK | Z | Pn | E | 2016-07-15 17:21:21 | 0.03 | y | 472 | 20 | |||
| IIEES | CHTH | Z | Pn | E | 2016-07-15 17:21:28 | -0.07 | y | 529 | 46 | |||
| IIEES | GIDE | Z | Pn | E | 2016-07-15 17:21:30 | 0.12 | y | 546 | 30 | |||
| IIEES | NASN | Z | Pn | E | 2016-07-15 17:21:32 | 0.21 | y | 555 | 87 | |||
| IIEES | DAMV | Z | Pn | E | 2016-07-15 17:21:33 | -0.47 | y | 572 | 54 | |||
| IIEES | GRMI | Z | Pn | E | 2016-07-15 17:21:47 | -0.36 | y | 686 | 7 | |||
| IIEES | YZKH | Z | Pn | E | 2016-07-15 17:21:52 | -0.24 | y | 725 | 91 | |||
| IIEES | SHRO | Z | Pn | E | 2016-07-15 17:22:16 | -0.1 | y | 917 | 64 | |||
| IIEES | TABS | Z | Pn | E | 2016-07-15 17:22:21 | -0.55 | y | 960 | 81 | |||
| IIEES | BSRN | Z | Pn | E | 2016-07-15 17:22:45 | -0.96 | y | 1155 | 91 | |||
