Magnitude |
:3 |
| Date & Time (UTC) | 2016-07-15 20:36:24.7 |
| Date & Time (Local) | 1395/4/26 01:06:24.7 |

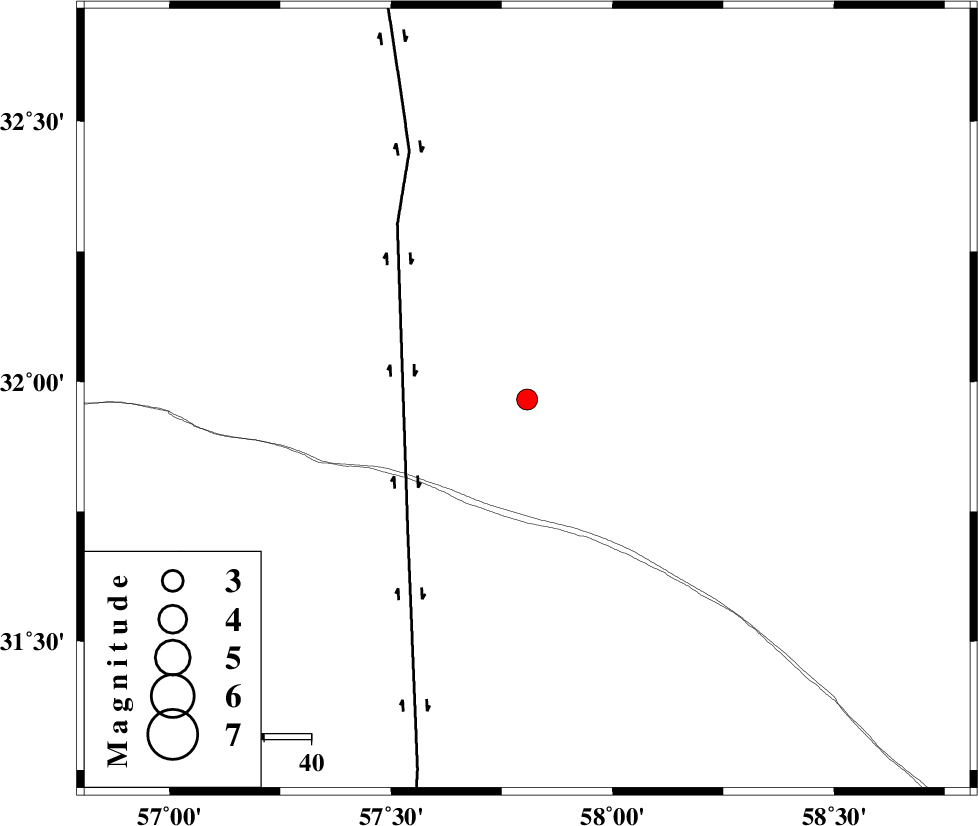

| Location | Lat:31.966 Lon: 57.807 |
| Region | Yazd Province, 122 km North-East of Ravar |
Nearest Cities |
|
| 39 km South East of Hoz-e qorban, Yazd Province | |
| 113 km South West of Hamand, Khorasan(south) Province | |
| 119 km North East of Dehali, Kerman Province | |
| 122 km North East of Ravar, Kerman Province | |
| 123 km South East of Arababad, Yazd Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| NAYBAND_F (Length: 258 km) , Distance to epicenter: 38 km | |
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 75 km | |
| ESFARDIAR_F (Length: 94 km) , Distance to epicenter: 107 km | |
| Number of Phases | 8 |
| RMS | 0.1 |
| Number of Stations | 7 |
| Error in Latitude | >1.7 km |
| Error in Longitude | 1.3 km |
| Error in Depth | 3.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 107596 | IIEES | KRBR | E | 83.2 | 0.32 | 2016-07-15 20:37:35 | 2016-07-16 06:34:00 | n |
| 107597 | IIEES | KRBR | N | 76.9 | 0.36 | 2016-07-15 20:37:39 | 2016-07-16 06:34:00 | n |
| 107598 | IIEES | YZKH | E | 43.2 | 0.24 | 2016-07-15 20:37:54 | 2016-07-16 06:34:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BSRN | Z | Pg | E | 2016-07-15 20:36:45 | -0.11 | y | 125 | 90 | |||
| IIEES | TABS | Z | Pn | E | 2016-07-15 20:36:56 | -0.14 | y | 197 | 341 | |||
| IIEES | KRBR | Z | Pn | E | 2016-07-15 20:37:02 | -0.11 | y | 242 | 205 | |||
| IIEES | SHRT | Z | Pn | E | 2016-07-15 20:37:09 | 0.06 | y | 298 | 51 | |||
| IIEES | YZKH | Z | Pn | E | 2016-07-15 20:37:10 | 0.07 | y | 307 | 280 | |||
| IIEES | YZKH | E | Sg | E | 2016-07-15 20:37:51 | 0.01 | y | 307 | 280 | |||
| IIEES | ZHSF | Z | Pn | E | 2016-07-15 20:37:20 | 0.18 | y | 386 | 132 | |||
| IIEES | SHRO | Z | Pn | E | 2016-07-15 20:37:31 | 0.12 | y | 478 | 340 | |||
