Magnitude |
:2.8 |
| Date & Time (UTC) | 2016-07-15 16:36:10.3 |
| Date & Time (Local) | 1395/4/25 21:06:10.3 |

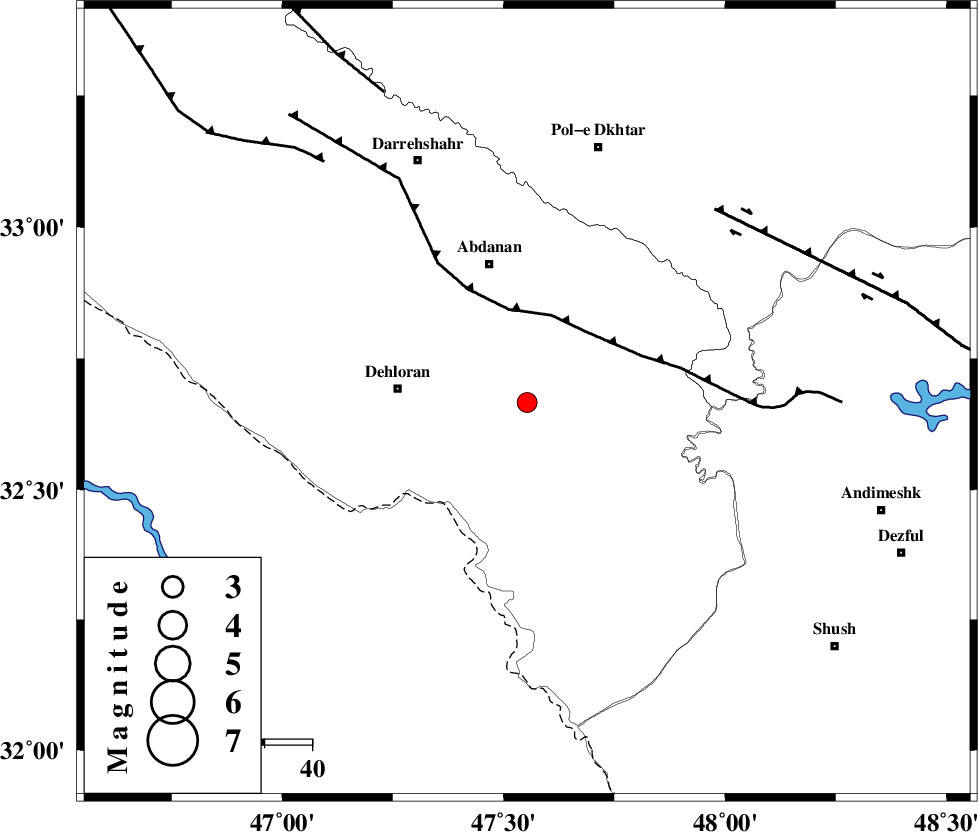

| Location | Lat:32.666 Lon: 47.553 |
| Region | Ilam Province, 28 km -East of Dehloran |
Nearest Cities |
|
| 22 km North East of Musian, Ilam Province | |
| 26 km South of Sarabbagh, Ilam Province | |
| 28 km East of Dehloran, Ilam Province | |
| 30 km South of Abdanan, Ilam Province | |
| 50 km South West of Sarab hammam, Lorestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MFF6 (Length: 144 km) , Distance to epicenter: 4 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 29 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 51 km | |
| Number of Phases | 15 |
| RMS | 0.4 |
| Number of Stations | 12 |
| Error in Latitude | >6.8 km |
| Error in Longitude | 5.8 km |
| Error in Depth | 9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 107645 | IIEES | KHMZ | E | 43.6 | 0.36 | 2016-07-15 16:37:29 | 2016-07-16 08:17:00 | n |
| 107646 | IIEES | SNGE | E | 35.8 | 0.4 | 2016-07-15 16:37:32 | 2016-07-16 08:17:00 | n |
| 107647 | IIEES | SNGE | N | 57.5 | 0.55 | 2016-07-15 16:37:32 | 2016-07-16 08:17:00 | n |
| 107648 | IIEES | ASAO | E | 21.1 | 0.39 | 2016-07-15 16:37:48 | 2016-07-16 08:17:00 | n |
| 107649 | IIEES | ASAO | N | 22.8 | 0.54 | 2016-07-15 16:37:49 | 2016-07-16 08:17:00 | n |
| 107650 | IIEES | GHVR | N | 11.6 | 0.38 | 2016-07-15 16:37:57 | 2016-07-16 08:17:00 | n |
| 107651 | IIEES | GHVR | E | 19.6 | 0.61 | 2016-07-15 16:38:01 | 2016-07-16 08:17:00 | n |
| 107652 | IIEES | NASN | N | 9.2 | 0.26 | 2016-07-15 16:38:12 | 2016-07-16 08:17:00 | n |
| 107653 | IIEES | NASN | E | 5.4 | 0.36 | 2016-07-15 16:38:14 | 2016-07-16 08:17:00 | n |
| 107654 | IIEES | GIDE | E | 6.1 | 0.41 | 2016-07-15 16:38:20 | 2016-07-16 08:17:00 | n |
| 107655 | IIEES | GIDE | N | 5.1 | 0.34 | 2016-07-15 16:38:30 | 2016-07-16 08:17:00 | n |
| 107656 | IIEES | DAMV | E | 4.9 | 0.28 | 2016-07-15 16:38:43 | 2016-07-16 08:17:00 | n |
| 107657 | IIEES | DAMV | N | 4 | 0.56 | 2016-07-15 16:38:56 | 2016-07-16 08:17:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pn | E | 2016-07-15 16:36:49 | 0.07 | y | 254 | 61 | |||
| IIEES | KHMZ | E | Sg | E | 2016-07-15 16:37:22 | -0.35 | y | 254 | 61 | |||
| IIEES | SNGE | Z | Pn | E | 2016-07-15 16:36:51 | 0.12 | y | 270 | 356 | |||
| IIEES | SNGE | E | Sg | E | 2016-07-15 16:37:26 | -0.01 | y | 270 | 356 | |||
| IIEES | ASAO | Z | Pn | E | 2016-07-15 16:36:57 | 0.62 | y | 310 | 47 | |||
| IIEES | GHVR | Z | Pn | E | 2016-07-15 16:37:08 | 0.58 | y | 398 | 59 | |||
| IIEES | GHVR | N | S | E | 2016-07-15 16:37:49 | 0.67 | y | 398 | 59 | |||
| IIEES | ZNJK | Z | Pn | E | 2016-07-15 16:37:14 | -0.02 | y | 456 | 13 | |||
| IIEES | CHTH | Z | Pn | E | 2016-07-15 16:37:18 | -0.08 | y | 487 | 41 | |||
| IIEES | NASN | Z | Pn | E | 2016-07-15 16:37:19 | -0.23 | y | 493 | 87 | |||
| IIEES | GIDE | Z | Pn | E | 2016-07-15 16:37:22 | -0.36 | y | 519 | 24 | |||
| IIEES | DAMV | Z | Pn | E | 2016-07-15 16:37:22 | -1.02 | y | 524 | 50 | |||
| IIEES | YZKH | Z | Pn | E | 2016-07-15 16:37:40 | 0.02 | y | 662 | 91 | |||
| IIEES | GRMI | Z | Pn | E | 2016-07-15 16:37:42 | -0.15 | y | 682 | 2 | |||
| IIEES | SHRO | Z | Pn | E | 2016-07-15 16:38:04 | -0.78 | y | 862 | 62 | |||
