Magnitude |
:3 |
| Date & Time (UTC) | 2016-07-18 11:36:13.5 |
| Date & Time (Local) | 1395/4/28 16:06:13.5 |

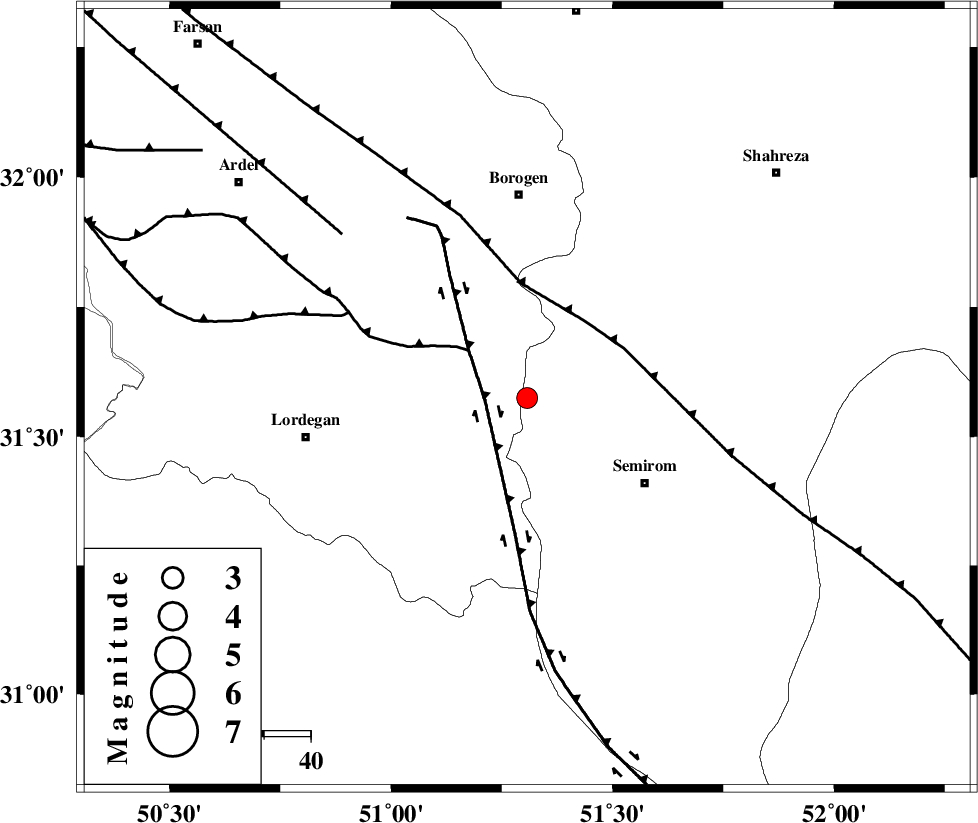

| Location | Lat:31.574 Lon: 51.307 |
| Region | Esfahan Province, 44 km South of Borujen |
Nearest Cities |
|
| 6 km North of Vanak, Esfahan Province | |
| 24 km North East of Aluni, Chaharmahal Bakhtiari Province | |
| 31 km North West of Semirom, Esfahan Province | |
| 33 km North of Malkhalifeh, Chaharmahal Bakhtiari Province | |
| 35 km South East of Gandoman, Chaharmahal Bakhtiari Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| DENA_F (Length: 137 km) , Distance to epicenter: 9 km | |
| DOPOLAN_F (Length: 107 km) , Distance to epicenter: 16 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 21 km | |
| Number of Phases | 14 |
| RMS | 0.3 |
| Number of Stations | 11 |
| Error in Latitude | >3 km |
| Error in Longitude | 3.5 km |
| Error in Depth | 6.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 107761 | IIEES | KHMZ | E | 57.1 | 0.63 | 2016-07-18 11:37:41 | 2016-07-19 06:01:00 | n |
| 107762 | IIEES | AHRM | E | 33.5 | 0.6 | 2016-07-18 11:37:57 | 2016-07-19 06:01:00 | n |
| 107763 | IIEES | AHRM | N | 51.4 | 0.6 | 2016-07-18 11:37:58 | 2016-07-19 06:01:00 | n |
| 107764 | IIEES | YZKH | E | 26.3 | 0.74 | 2016-07-18 11:37:56 | 2016-07-19 06:01:00 | n |
| 107765 | IIEES | ASAO | N | 34.8 | 0.61 | 2016-07-18 11:38:01 | 2016-07-19 06:01:00 | n |
| 107766 | IIEES | ASAO | E | 28.8 | 0.61 | 2016-07-18 11:38:09 | 2016-07-19 06:01:00 | n |
| 107767 | IIEES | CHTH | E | 8 | 0.33 | 2016-07-18 11:38:42 | 2016-07-19 06:01:00 | n |
| 107768 | IIEES | KRBR | N | 9.6 | 0.54 | 2016-07-18 11:38:37 | 2016-07-19 06:01:00 | n |
| 107769 | IIEES | KRBR | E | 7.4 | 0.68 | 2016-07-18 11:38:52 | 2016-07-19 06:01:00 | n |
| 107770 | IIEES | TABS | N | 5.9 | 0.68 | 2016-07-18 11:39:26 | 2016-07-19 06:01:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | NASN | Z | Pg | E | 2016-07-18 11:36:46 | 0.33 | y | 196 | 46 | |||
| IIEES | NASN | E | Sg | E | 2016-07-18 11:37:09 | -0.24 | y | 196 | 46 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-07-18 11:36:54 | 0.02 | y | 271 | 333 | |||
| IIEES | AHRM | Z | Pn | E | 2016-07-18 11:36:57 | -0.13 | y | 300 | 180 | |||
| IIEES | GHVR | Z | Pn | E | 2016-07-18 11:37:01 | 0.33 | y | 322 | 359 | |||
| IIEES | YZKH | Z | Pn | E | 2016-07-18 11:37:04 | 2.96 | n | 4 | 323 | 73 | ||
| IIEES | ASAO | Z | Pn | E | 2016-07-18 11:37:04 | 0.06 | y | 351 | 340 | |||
| IIEES | ASAO | N | Sg | E | 2016-07-18 11:37:52 | -0.02 | y | 351 | 340 | |||
| IIEES | DAMV | Z | Pn | E | 2016-07-18 11:37:17 | -0.3 | y | 454 | 8 | |||
| IIEES | CHTH | Z | Pn | E | 2016-07-18 11:37:20 | -0.54 | y | 481 | 358 | |||
| IIEES | SNGE | Z | Pn | E | 2016-07-18 11:37:27 | 0.14 | y | 537 | 318 | |||
| IIEES | KRBR | Z | Pn | E | 2016-07-18 11:37:29 | -0.15 | y | 551 | 107 | |||
| IIEES | TABS | Z | Pn | E | 2016-07-18 11:37:34 | 0.49 | y | 592 | 66 | |||
| IIEES | SHRO | Z | Pn | E | 2016-07-18 11:37:44 | 2.01 | n | 4 | 657 | 40 | ||
