Magnitude |
:3.1 |
| Date & Time (UTC) | 2016-07-18 13:04:51.3 |
| Date & Time (Local) | 1395/4/28 17:34:51.3 |

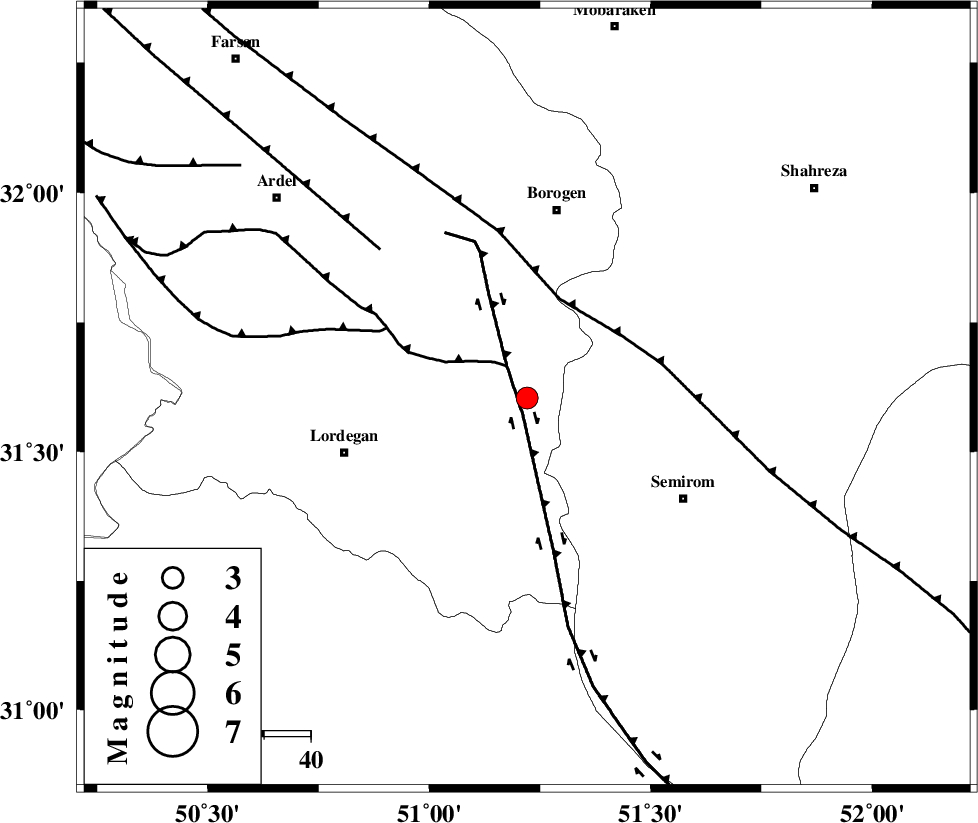

| Location | Lat:31.604 Lon: 51.221 |
| Region | Chaharmahal Bakhtiari Province, 41 km South of Borujen |
Nearest Cities |
|
| 14 km North West of Vanak, Esfahan Province | |
| 16 km North East of Aluni, Chaharmahal Bakhtiari Province | |
| 30 km South of Gandoman, Chaharmahal Bakhtiari Province | |
| 37 km North of Malkhalifeh, Chaharmahal Bakhtiari Province | |
| 40 km South East of Baladaji, Chaharmahal Bakhtiari Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| DENA_F (Length: 137 km) , Distance to epicenter: 4 km | |
| DOPOLAN_F (Length: 107 km) , Distance to epicenter: 8 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 22 km | |
| Number of Phases | 14 |
| RMS | 0.4 |
| Number of Stations | 12 |
| Error in Latitude | >3.8 km |
| Error in Longitude | 4.2 km |
| Error in Depth | 8.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 107771 | IIEES | NASN | E | 103.4 | 0.27 | 2016-07-18 13:05:57 | 2016-07-19 06:01:00 | n |
| 107772 | IIEES | KHMZ | E | 81.2 | 0.47 | 2016-07-18 13:06:19 | 2016-07-19 06:01:00 | n |
| 107773 | IIEES | AHRM | N | 69.8 | 0.59 | 2016-07-18 13:06:28 | 2016-07-19 06:01:00 | n |
| 107774 | IIEES | AHRM | E | 56.7 | 0.64 | 2016-07-18 13:06:28 | 2016-07-19 06:01:00 | n |
| 107775 | IIEES | GHVR | E | 40.8 | 0.56 | 2016-07-18 13:06:31 | 2016-07-19 06:01:00 | n |
| 107776 | IIEES | GHVR | N | 36.2 | 0.62 | 2016-07-18 13:06:35 | 2016-07-19 06:01:00 | n |
| 107777 | IIEES | YZKH | E | 32.9 | 0.54 | 2016-07-18 13:06:33 | 2016-07-19 06:01:00 | n |
| 107778 | IIEES | YZKH | N | 26.9 | 0.61 | 2016-07-18 13:06:33 | 2016-07-19 06:01:00 | n |
| 107779 | IIEES | ASAO | E | 40 | 0.69 | 2016-07-18 13:06:35 | 2016-07-19 06:01:00 | n |
| 107780 | IIEES | ASAO | N | 46.4 | 0.69 | 2016-07-18 13:06:36 | 2016-07-19 06:01:00 | n |
| 107781 | IIEES | CHTH | E | 8.9 | 0.66 | 2016-07-18 13:07:19 | 2016-07-19 06:01:00 | n |
| 107782 | IIEES | SNGE | N | 12.7 | 0.74 | 2016-07-18 13:07:33 | 2016-07-19 06:01:00 | n |
| 107783 | IIEES | SNGE | E | 12.9 | 0.57 | 2016-07-18 13:07:34 | 2016-07-19 06:01:00 | n |
| 107784 | IIEES | KRBR | E | 13 | 0.82 | 2016-07-18 13:07:14 | 2016-07-19 06:01:00 | n |
| 107785 | IIEES | KRBR | N | 16.6 | 0.48 | 2016-07-18 13:07:15 | 2016-07-19 06:01:00 | n |
| 107786 | IIEES | TABS | N | 5.1 | 0.66 | 2016-07-18 13:07:42 | 2016-07-19 06:01:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | NASN | Z | Pg | E | 2016-07-18 13:05:24 | -0.17 | y | 200 | 48 | |||
| IIEES | NASN | N | Sg | E | 2016-07-18 13:05:48 | -0.1 | y | 200 | 48 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-07-18 13:05:31 | -0.12 | y | 265 | 334 | |||
| IIEES | AHRM | Z | Pn | E | 2016-07-18 13:05:36 | -0.17 | y | 304 | 179 | |||
| IIEES | GHVR | Z | Pn | E | 2016-07-18 13:05:38 | -0.04 | y | 319 | 0 | |||
| IIEES | YZKH | Z | Pn | E | 2016-07-18 13:05:42 | 2.25 | n | 4 | 330 | 74 | ||
| IIEES | ASAO | Z | Pn | E | 2016-07-18 13:05:42 | 0.17 | y | 345 | 341 | |||
| IIEES | ASAO | N | Sg | E | 2016-07-18 13:06:28 | 0.12 | y | 345 | 341 | |||
| IIEES | DAMV | Z | Pn | E | 2016-07-18 13:05:54 | -0.5 | y | 452 | 9 | |||
| IIEES | CHTH | Z | Pn | E | 2016-07-18 13:06:05 | 6.73 | n | 4 | 478 | 359 | ||
| IIEES | SNGE | Z | Pn | E | 2016-07-18 13:06:05 | 0.13 | y | 529 | 318 | |||
| IIEES | KRBR | Z | Pn | E | 2016-07-18 13:06:08 | -0.39 | y | 560 | 107 | |||
| IIEES | TABS | Z | Pn | E | 2016-07-18 13:06:14 | 0.98 | y | 598 | 66 | |||
| IIEES | BSRN | Z | Pn | E | 2016-07-18 13:06:32 | 0.75 | y | 750 | 85 | |||
