Magnitude |
:3.5 |
| Date & Time (UTC) | 2016-07-18 17:09:58.2 |
| Date & Time (Local) | 1395/4/28 21:39:58.2 |

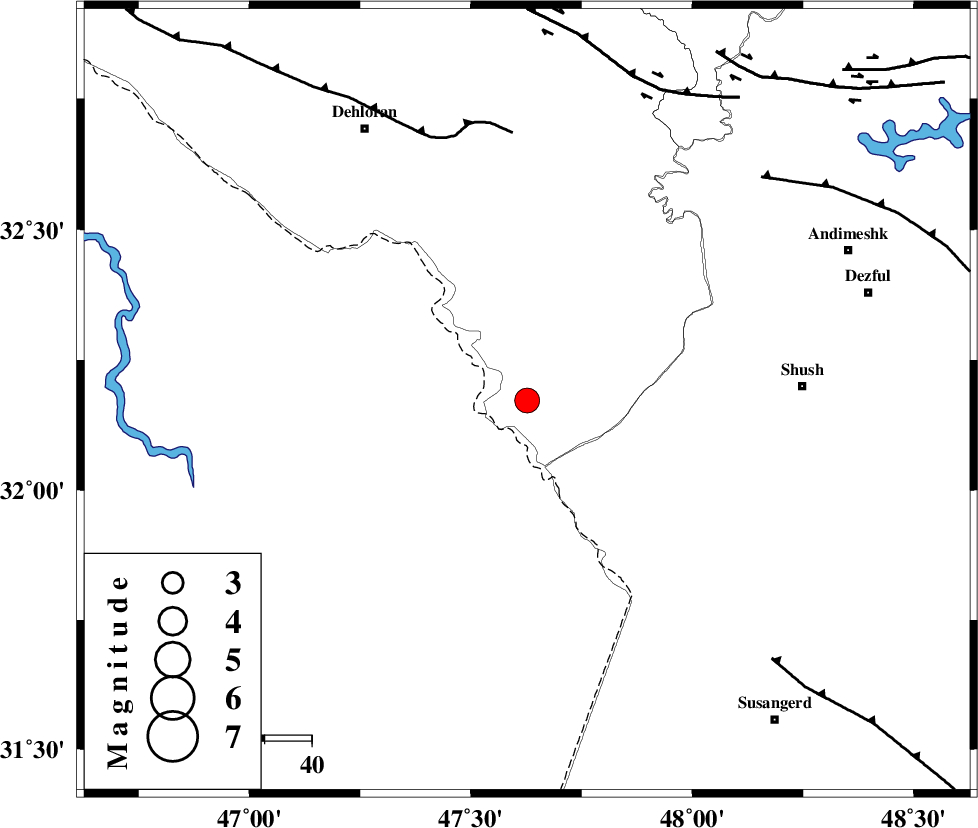

| Location | Lat:32.172 Lon: 47.627 |
| Region | Ilam Province, 59 km -West of Shush |
Nearest Cities |
|
| 49 km South East of Musian, Ilam Province | |
| 59 km West of Shush, Khoozestan Province | |
| 60 km North West of Bostan, Khoozestan Province | |
| 61 km West of Amaleh teimur, Khoozestan Province | |
| 67 km South East of Dehloran, Ilam Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MFF6 (Length: 144 km) , Distance to epicenter: 57 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 69 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 72 km | |
| Number of Phases | 13 |
| RMS | 0.5 |
| Number of Stations | 13 |
| Error in Latitude | >7.5 km |
| Error in Longitude | 5.8 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 107787 | IIEES | KHMZ | E | 121.4 | 0.55 | 2016-07-18 17:11:25 | 2016-07-19 06:01:00 | n |
| 107788 | IIEES | SNGE | N | 133.6 | 0.49 | 2016-07-18 17:11:35 | 2016-07-19 06:01:00 | n |
| 107789 | IIEES | SNGE | E | 114 | 0.56 | 2016-07-18 17:11:36 | 2016-07-19 06:01:00 | n |
| 107790 | IIEES | ASAO | E | 75.7 | 0.55 | 2016-07-18 17:11:37 | 2016-07-19 06:01:00 | n |
| 107791 | IIEES | ASAO | N | 88.3 | 0.61 | 2016-07-18 17:11:53 | 2016-07-19 06:01:00 | n |
| 107792 | IIEES | GHVR | E | 56.8 | 0.38 | 2016-07-18 17:11:48 | 2016-07-19 06:01:00 | n |
| 107793 | IIEES | GHVR | N | 40.6 | 0.85 | 2016-07-18 17:12:04 | 2016-07-19 06:01:00 | n |
| 107794 | IIEES | AHRM | N | 40.5 | 0.37 | 2016-07-18 17:12:41 | 2016-07-19 06:01:00 | n |
| 107795 | IIEES | AHRM | E | 108.1 | 0.88 | 2016-07-18 17:12:41 | 2016-07-19 06:01:00 | n |
| 107796 | IIEES | GIDE | E | 23.2 | 0.87 | 2016-07-18 17:12:58 | 2016-07-19 06:01:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pn | E | 2016-07-18 17:10:41 | 0.79 | y | 279 | 51 | |||
| IIEES | SNGE | Z | Pn | E | 2016-07-18 17:10:46 | -0.06 | y | 325 | 355 | |||
| IIEES | ASAO | Z | Pn | E | 2016-07-18 17:10:49 | 0.11 | y | 345 | 40 | |||
| IIEES | GHVR | Z | Pn | E | 2016-07-18 17:10:59 | 0.88 | y | 423 | 52 | |||
| IIEES | NASN | Z | Pn | E | 2016-07-18 17:11:06 | -0.44 | y | 492 | 80 | |||
| IIEES | ZNJK | Z | Pn | E | 2016-07-18 17:11:09 | -0.02 | y | 508 | 11 | |||
| IIEES | AHRM | Z | Pn | E | 2016-07-18 17:11:09 | 0.1 | y | 508 | 135 | |||
| IIEES | CHTH | Z | Pn | E | 2016-07-18 17:11:11 | -0.09 | y | 525 | 37 | |||
| IIEES | DAMV | Z | Pn | E | 2016-07-18 17:11:13 | -1.13 | y | 555 | 45 | |||
| IIEES | GIDE | Z | Pn | E | 2016-07-18 17:11:16 | -0.19 | y | 567 | 21 | |||
| IIEES | YZKH | Z | Pn | E | 2016-07-18 17:11:27 | -0.3 | y | 656 | 86 | |||
| IIEES | SHRO | Z | Pn | E | 2016-07-18 17:11:54 | -0.99 | y | 883 | 59 | |||
| IIEES | TABS | Z | Pn | E | 2016-07-18 17:11:58 | 0.16 | y | 903 | 77 | |||
