Magnitude |
:3.2 |
| Date & Time (UTC) | 2016-07-19 11:08:21.1 |
| Date & Time (Local) | 1395/4/29 15:38:21.1 |

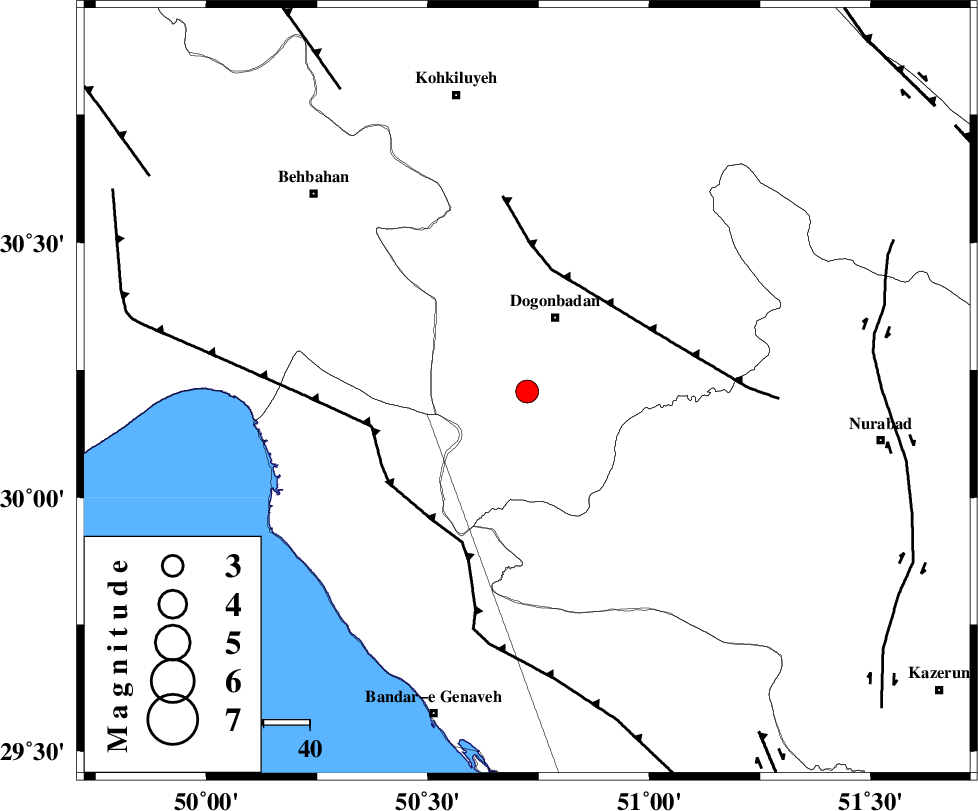

| Location | Lat:30.208 Lon: 50.724 |
| Region | Kohkiluieh va boyerahmad Province, 17 km South of Dogonbadan |
Nearest Cities |
|
| 17 km South of Dogonbadan, Kohkiluieh va boyerahmad Province | |
| 41 km South West of Abdehgah, Kohkiluieh va boyerahmad Province | |
| 41 km North East of Siyahmakan-e bozorg, Bushehr Province | |
| 45 km South West of Basht, Kohkiluieh va boyerahmad Province | |
| 48 km North West of Babamonir, Fars Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MISHAN_F (Length: 76 km) , Distance to epicenter: 26 km | |
| ZFF3 (Length: 125 km) , Distance to epicenter: 35 km | |
| RAG_E_SEFID_F (Length: 84 km) , Distance to epicenter: 35 km | |
| Number of Phases | 13 |
| RMS | 0.1 |
| Number of Stations | 12 |
| Error in Latitude | >3.6 km |
| Error in Longitude | 3.8 km |
| Error in Depth | 10.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 107832 | IIEES | AHRM | N | 446.3 | 0.54 | 2016-07-19 11:09:08 | 2016-07-20 06:15:00 | n |
| 107833 | IIEES | AHRM | E | 263.5 | 0.43 | 2016-07-19 11:09:09 | 2016-07-20 06:15:00 | n |
| 107834 | IIEES | ASAO | E | 19.7 | 0.59 | 2016-07-19 11:10:24 | 2016-07-20 06:15:00 | n |
| 107835 | IIEES | ASAO | N | 18 | 0.52 | 2016-07-19 11:10:24 | 2016-07-20 06:15:00 | n |
| 107836 | IIEES | KRBR | N | 11.1 | 0.37 | 2016-07-19 11:10:44 | 2016-07-20 06:15:00 | n |
| 107837 | IIEES | KRBR | E | 9.3 | 0.42 | 2016-07-19 11:10:53 | 2016-07-20 06:15:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pg | E | 2016-07-19 11:08:47 | -0.01 | y | 159 | 159 | |||
| IIEES | AHRM | N | Sg | E | 2016-07-19 11:09:06 | 0.01 | y | 159 | 159 | |||
| IIEES | NASN | Z | Pn | E | 2016-07-19 11:09:12 | -0.01 | y | 349 | 34 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-07-19 11:09:18 | 0 | y | 398 | 350 | |||
| IIEES | YZKH | Z | Pn | E | 2016-07-19 11:09:23 | -0.03 | y | 441 | 56 | |||
| IIEES | GHVR | Z | Pn | E | 2016-07-19 11:09:28 | 0.16 | y | 476 | 6 | |||
| IIEES | ASAO | Z | Pn | E | 2016-07-19 11:09:29 | 0.02 | y | 486 | 352 | |||
| IIEES | KRBR | Z | Pn | E | 2016-07-19 11:09:41 | 0.09 | y | 582 | 91 | |||
| IIEES | DAMV | Z | Pn | E | 2016-07-19 11:09:44 | -0.19 | y | 613 | 11 | |||
| IIEES | TABS | Z | Pn | E | 2016-07-19 11:09:57 | 0.09 | y | 715 | 56 | |||
| IIEES | SHRO | Z | Pn | E | 2016-07-19 11:10:09 | -0.17 | y | 811 | 36 | |||
| IIEES | BSRN | Z | Pn | E | 2016-07-19 11:10:11 | -0.04 | y | 825 | 74 | |||
| IIEES | SHRT | Z | Pn | E | 2016-07-19 11:10:30 | -0.02 | y | 981 | 65 | |||
