Magnitude |
:3.3 |
| Date & Time (UTC) | 2016-07-19 11:25:19.0 |
| Date & Time (Local) | 1395/4/29 15:55:19.0 |

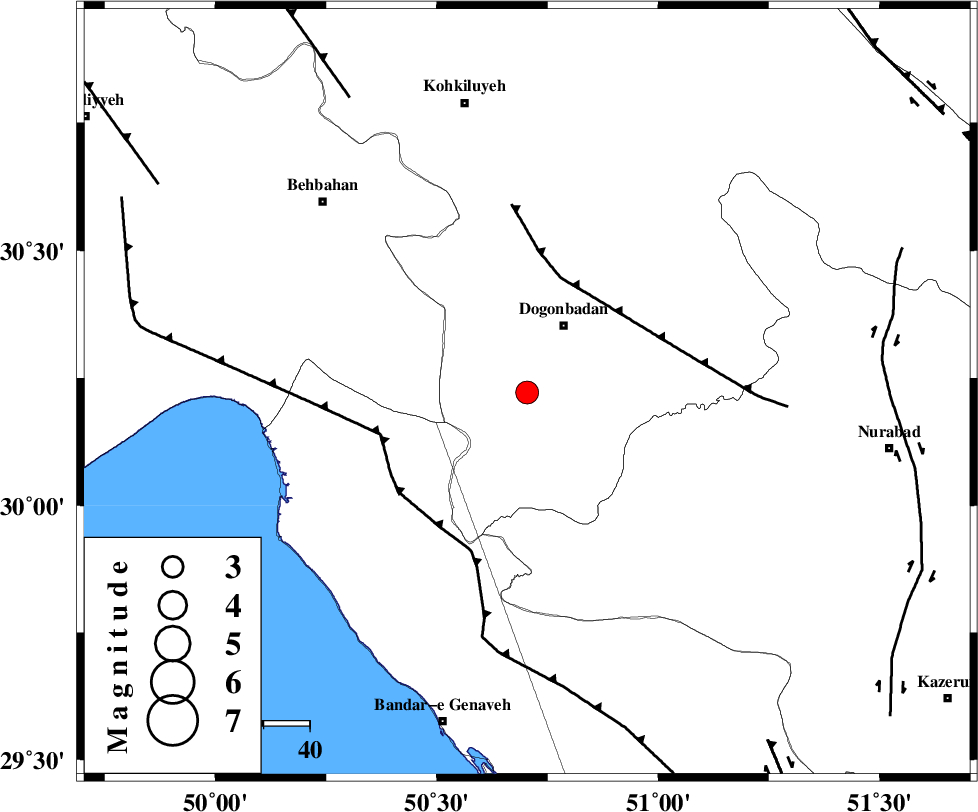

| Location | Lat:30.222 Lon: 50.704 |
| Region | Kohkiluieh va boyerahmad Province, 17 km South of Dogonbadan |
Nearest Cities |
|
| 17 km South of Dogonbadan, Kohkiluieh va boyerahmad Province | |
| 40 km North East of Siyahmakan-e bozorg, Bushehr Province | |
| 42 km South West of Abdehgah, Kohkiluieh va boyerahmad Province | |
| 47 km South West of Basht, Kohkiluieh va boyerahmad Province | |
| 47 km East of Sardasht, Khoozestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MISHAN_F (Length: 76 km) , Distance to epicenter: 25 km | |
| ZFF3 (Length: 125 km) , Distance to epicenter: 33 km | |
| RAG_E_SEFID_F (Length: 84 km) , Distance to epicenter: 33 km | |
| Number of Phases | 13 |
| RMS | 0.2 |
| Number of Stations | 12 |
| Error in Latitude | >4.8 km |
| Error in Longitude | 4.5 km |
| Error in Depth | 13.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 107838 | IIEES | AHRM | N | 596.4 | 0.58 | 2016-07-19 11:26:06 | 2016-07-20 06:15:00 | n |
| 107839 | IIEES | AHRM | E | 404.2 | 0.46 | 2016-07-19 11:26:10 | 2016-07-20 06:15:00 | n |
| 107840 | IIEES | GHVR | N | 21.4 | 0.84 | 2016-07-19 11:27:40 | 2016-07-20 06:15:00 | n |
| 107841 | IIEES | GHVR | E | 14.6 | 0.7 | 2016-07-19 11:27:57 | 2016-07-20 06:15:00 | n |
| 107842 | IIEES | ASAO | E | 18.6 | 0.57 | 2016-07-19 11:27:21 | 2016-07-20 06:15:00 | n |
| 107843 | IIEES | ASAO | N | 20.2 | 0.57 | 2016-07-19 11:27:22 | 2016-07-20 06:15:00 | n |
| 107844 | IIEES | KRBR | N | 17.4 | 0.48 | 2016-07-19 11:27:42 | 2016-07-20 06:15:00 | n |
| 107845 | IIEES | KRBR | E | 14.5 | 0.32 | 2016-07-19 11:27:46 | 2016-07-20 06:15:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pg | E | 2016-07-19 11:25:45 | -0.03 | y | 161 | 159 | |||
| IIEES | AHRM | N | Sg | E | 2016-07-19 11:26:05 | 0.02 | y | 161 | 159 | |||
| IIEES | NASN | Z | Pn | E | 2016-07-19 11:26:10 | -0.16 | y | 349 | 34 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-07-19 11:26:16 | 0 | y | 396 | 350 | |||
| IIEES | YZKH | Z | Pn | E | 2016-07-19 11:26:21 | 0.1 | y | 441 | 56 | |||
| IIEES | GHVR | Z | Pn | E | 2016-07-19 11:26:25 | 0.18 | y | 475 | 6 | |||
| IIEES | ASAO | Z | Pn | E | 2016-07-19 11:26:27 | 0.35 | y | 484 | 353 | |||
| IIEES | KRBR | Z | Pn | E | 2016-07-19 11:26:39 | 0.06 | y | 584 | 91 | |||
| IIEES | DAMV | Z | Pn | E | 2016-07-19 11:26:42 | -0.25 | y | 611 | 11 | |||
| IIEES | SNGE | Z | Pn | E | 2016-07-19 11:26:44 | -0.23 | y | 625 | 331 | |||
| IIEES | TABS | Z | Pn | E | 2016-07-19 11:26:55 | -0.12 | y | 716 | 56 | |||
| IIEES | SHRO | Z | Pn | E | 2016-07-19 11:27:07 | -0.17 | y | 811 | 36 | |||
| IIEES | BSRN | Z | Pn | E | 2016-07-19 11:27:09 | 0.16 | y | 826 | 74 | |||
