Magnitude |
:2.8 |
| Date & Time (UTC) | 2016-07-23 03:36:19.9 |
| Date & Time (Local) | 1395/5/2 08:06:19.9 |

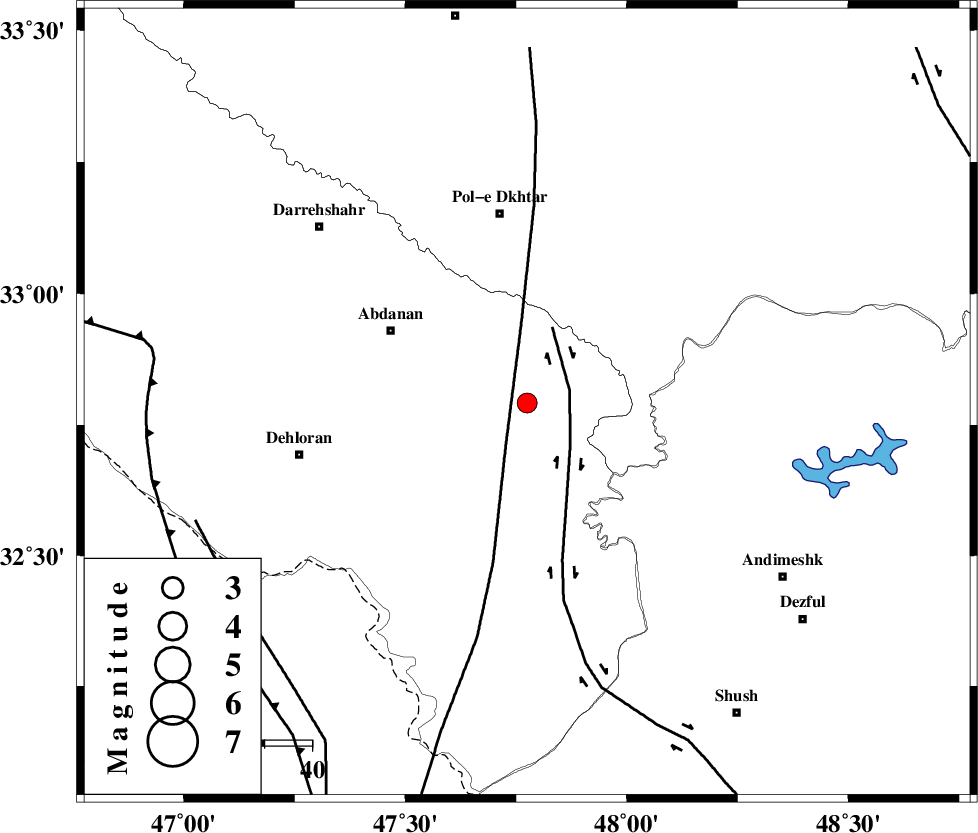

| Location | Lat:32.792 Lon: 47.775 |
| Region | Ilam Province, 41 km South of Pol-e dokhtar |
Nearest Cities |
|
| 23 km South East of Sarabbagh, Ilam Province | |
| 33 km South East of Abdanan, Ilam Province | |
| 35 km South of Sarab hammam, Lorestan Province | |
| 41 km South of Pol-e dokhtar, Lorestan Province | |
| 43 km North West of Bidruyeh, Khoozestan Province | |
| Depth | 16 km |
| Agency | |
Faults within 150 km: |
|
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 8 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 21 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 27 km | |
| Number of Phases | 8 |
| RMS | 0.1 |
| Number of Stations | 6 |
| Error in Latitude | >6.6 km |
| Error in Longitude | 4.4 km |
| Error in Depth | 9.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 107900 | IIEES | KHMZ | E | 39.1 | 0.59 | 2016-07-23 03:37:30 | 2016-07-23 05:24:00 | n |
| 107901 | IIEES | SNGE | E | 42.9 | 0.6 | 2016-07-23 03:37:37 | 2016-07-23 05:24:00 | n |
| 107902 | IIEES | SNGE | N | 42.6 | 0.6 | 2016-07-23 03:37:38 | 2016-07-23 05:24:00 | n |
| 107903 | IIEES | ASAO | E | 33.9 | 0.48 | 2016-07-23 03:37:48 | 2016-07-23 05:24:00 | n |
| 107904 | IIEES | ASAO | N | 34.3 | 0.48 | 2016-07-23 03:37:48 | 2016-07-23 05:24:00 | n |
| 107905 | IIEES | GHVR | E | 24.4 | 0.74 | 2016-07-23 03:38:00 | 2016-07-23 05:24:00 | n |
| 107906 | IIEES | GHVR | N | 15.4 | 0.47 | 2016-07-23 03:38:00 | 2016-07-23 05:24:00 | n |
| 107907 | IIEES | NASN | N | 5.8 | 0.29 | 2016-07-23 03:38:20 | 2016-07-23 05:24:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pn | E | 2016-07-23 03:36:56 | -0.01 | y | 229 | 62 | |||
| IIEES | KHMZ | E | Sg | E | 2016-07-23 03:37:25 | 0.04 | y | 229 | 62 | |||
| IIEES | SNGE | Z | Pn | E | 2016-07-23 03:36:59 | 0.09 | y | 258 | 351 | |||
| IIEES | SNGE | E | Sg | E | 2016-07-23 03:37:32 | -0.04 | y | 258 | 351 | |||
| IIEES | ASAO | Z | Pn | E | 2016-07-23 03:37:03 | -0.02 | y | 285 | 46 | |||
| IIEES | GHVR | Z | Pn | E | 2016-07-23 03:37:13 | -0.03 | y | 372 | 59 | |||
| IIEES | NASN | Z | Pn | E | 2016-07-23 03:37:26 | -0.01 | y | 471 | 89 | |||
| IIEES | SHRO | Z | Pn | E | 2016-07-23 03:38:11 | -0.1 | y | 837 | 63 | |||
