Magnitude |
:2.5 |
| Date & Time (UTC) | 2016-07-24 13:58:47.0 |
| Date & Time (Local) | 1395/5/3 18:28:47.0 |

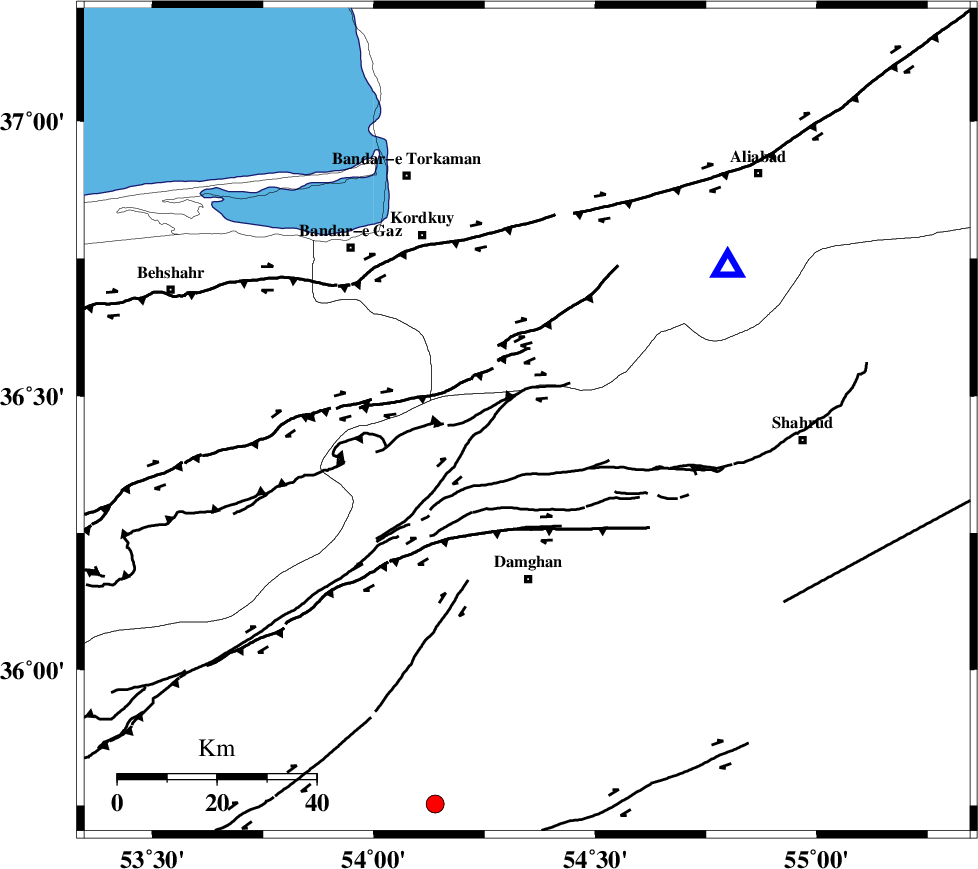

| Location | Lat:36.454 Lon: 54.346 |
| Region | Semnan Province, 32 km North of Damghan |
Nearest Cities |
|
| 15 km West of Cheharbagh, Golestan Province | |
| 25 km South of Naharkhoran, Golestan Province | |
| 27 km West of Majen, Semnan Province | |
| 32 km North of Damghan, Semnan Province | |
| 32 km North West of Mehmandust, Semnan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| ASTANEH_F (Length: 72 km) , Distance to epicenter: 5 km | |
| SHAVAR_F (Length: 87 km) , Distance to epicenter: 14 km | |
| N_ALBORZ_F (Length: 360 km) , Distance to epicenter: 15 km | |
| Number of Phases | 10 |
| RMS | 0.3 |
| Number of Stations | 8 |
| Error in Latitude | >3.3 km |
| Error in Longitude | 2.7 km |
| Error in Depth | 5.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 107976 | IIEES | MRVT | N | 23.7 | 0.42 | 2016-07-24 13:59:54 | 2016-07-25 05:18:00 | n |
| 107977 | IIEES | DAMV | N | 27.8 | 0.67 | 2016-07-24 14:00:00 | 2016-07-25 05:18:00 | n |
| 107978 | IIEES | DAMV | E | 23.9 | 0.49 | 2016-07-24 14:00:01 | 2016-07-25 05:18:00 | n |
| 107979 | IIEES | GHVR | N | 10.8 | 0.41 | 2016-07-24 14:00:32 | 2016-07-25 05:18:00 | n |
| 107980 | IIEES | GHVR | E | 14.8 | 0.29 | 2016-07-24 14:00:32 | 2016-07-25 05:18:00 | n |
| 107981 | IIEES | TABS | N | 5.6 | 0.52 | 2016-07-24 14:00:51 | 2016-07-25 05:18:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHRO | Z | Pg | E | 2016-07-24 13:59:13 | -0.04 | y | 158 | 108 | |||
| IIEES | MRVT | Z | Pn | E | 2016-07-24 13:59:19 | -0.17 | y | 205 | 49 | |||
| IIEES | MRVT | N | Sg | E | 2016-07-24 13:59:44 | -0.2 | y | 205 | 49 | |||
| IIEES | DAMV | Z | Pn | E | 2016-07-24 13:59:23 | -0.35 | y | 233 | 248 | |||
| IIEES | DAMV | N | Sg | E | 2016-07-24 13:59:53 | -0.08 | y | 233 | 248 | |||
| IIEES | CHTH | Z | Pn | E | 2016-07-24 13:59:32 | 0.46 | y | 296 | 259 | |||
| IIEES | BJRD | Z | Pn | E | 2016-07-24 13:59:33 | 0.54 | y | 305 | 62 | |||
| IIEES | GHVR | Z | Pn | E | 2016-07-24 13:59:38 | -0.05 | y | 357 | 233 | |||
| IIEES | TABS | Z | Pn | E | 2016-07-24 13:59:44 | 0.05 | y | 401 | 140 | |||
| IIEES | YZKH | Z | Pn | E | 2016-07-24 13:59:50 | -0.11 | y | 451 | 177 | |||
