Magnitude |
:3.1 |
| Date & Time (UTC) | 2016-07-31 08:09:05.3 |
| Date & Time (Local) | 1395/5/10 12:39:05.3 |
| Location | Lat:31.487 Lon: 50.85 |
| Region | Chaharmahal Bakhtiari Province, 4 km of Lordegan |
Nearest Cities |
|
| 4 km of Lordegan, Chaharmahal Bakhtiari Province | |
| 12 km North of Sardasht, Chaharmahal Bakhtiari Province | |
| 17 km South of Armand-e olia, Chaharmahal Bakhtiari Province | |
| 21 km West of Aluni, Chaharmahal Bakhtiari Province | |
| 30 km North East of Pataveh, Kohkiluieh va boyerahmad Province | |
| Depth | 15 km |
| Agency | |

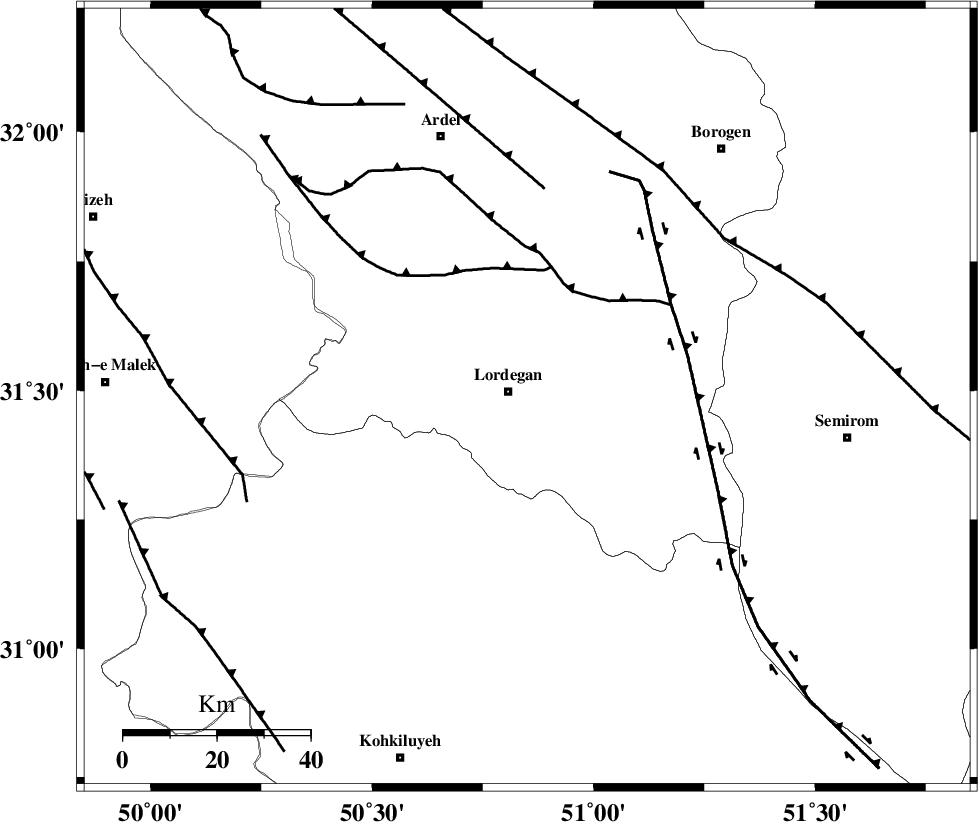

Faults within 150 km: |
|
| DOPOLAN_F (Length: 107 km) , Distance to epicenter: 25 km | |
| SABZKUH_F (Length: 67 km) , Distance to epicenter: 28 km | |
| DENA_F (Length: 137 km) , Distance to epicenter: 36 km | |
| Number of Phases | 10 |
| RMS | 0.4 |
| Number of Stations | 10 |
| Error in Latitude | >3.5 km |
| Error in Longitude | 3.4 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 108091 | IIEES | NASN | E | 54.8 | 0.41 | 2016-07-31 08:10:26 | 2016-07-31 08:35:00 | n |
| 108092 | IIEES | KHMZ | E | 81.6 | 0.55 | 2016-07-31 08:10:26 | 2016-07-31 08:35:00 | n |
| 108093 | IIEES | AHRM | N | 89.8 | 0.6 | 2016-07-31 08:10:40 | 2016-07-31 08:35:00 | n |
| 108094 | IIEES | AHRM | E | 77.5 | 0.55 | 2016-07-31 08:10:47 | 2016-07-31 08:35:00 | n |
| 108095 | IIEES | GHVR | E | 39.3 | 0.53 | 2016-07-31 08:10:54 | 2016-07-31 08:35:00 | n |
| 108096 | IIEES | GHVR | N | 44.1 | 0.73 | 2016-07-31 08:10:55 | 2016-07-31 08:35:00 | n |
| 108097 | IIEES | ASAO | N | 49.2 | 0.79 | 2016-07-31 08:10:51 | 2016-07-31 08:35:00 | n |
| 108098 | IIEES | ASAO | E | 42.9 | 0.49 | 2016-07-31 08:10:58 | 2016-07-31 08:35:00 | n |
| 108099 | IIEES | YZKH | E | 22.9 | 0.76 | 2016-07-31 08:11:00 | 2016-07-31 08:35:00 | n |
| 108100 | IIEES | DAMV | E | 17.3 | 0.54 | 2016-07-31 08:11:26 | 2016-07-31 08:35:00 | n |
| 108101 | IIEES | DAMV | N | 12.4 | 0.68 | 2016-07-31 08:11:33 | 2016-07-31 08:35:00 | n |
| 108102 | IIEES | CHTH | E | 7.2 | 0.85 | 2016-07-31 08:11:35 | 2016-07-31 08:35:00 | n |
| 108103 | IIEES | SNGE | N | 15.4 | 0.58 | 2016-07-31 08:11:48 | 2016-07-31 08:35:00 | n |
| 108104 | IIEES | SNGE | E | 13 | 0.58 | 2016-07-31 08:11:48 | 2016-07-31 08:35:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | NASN | Z | Pn | E | 2016-07-31 08:09:42 | 0 | y | 235 | 51 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-07-31 08:09:46 | 0.14 | y | 263 | 342 | |||
| IIEES | AHRM | Z | Pn | E | 2016-07-31 08:09:49 | 0.02 | y | 294 | 171 | |||
| IIEES | GHVR | Z | Pn | E | 2016-07-31 08:09:54 | 0.15 | y | 334 | 6 | |||
| IIEES | ASAO | Z | Pn | E | 2016-07-31 08:09:56 | 0.14 | y | 348 | 347 | |||
| IIEES | YZKH | Z | Pn | E | 2016-07-31 08:09:58 | -0.29 | y | 368 | 73 | |||
| IIEES | DAMV | Z | Pn | E | 2016-07-31 08:10:11 | -0.53 | y | 471 | 12 | |||
| IIEES | CHTH | Z | Pn | E | 2016-07-31 08:10:13 | -0.42 | y | 491 | 3 | |||
| IIEES | SNGE | Z | Pn | E | 2016-07-31 08:10:17 | -0.07 | y | 516 | 322 | |||
| IIEES | SHRO | Z | Pn | E | 2016-07-31 08:10:40 | 1.16 | y | 693 | 42 | |||
