Magnitude |
:2.8 |
| Date & Time (UTC) | 2016-07-28 01:57:48.3 |
| Date & Time (Local) | 1395/5/7 06:27:48.3 |

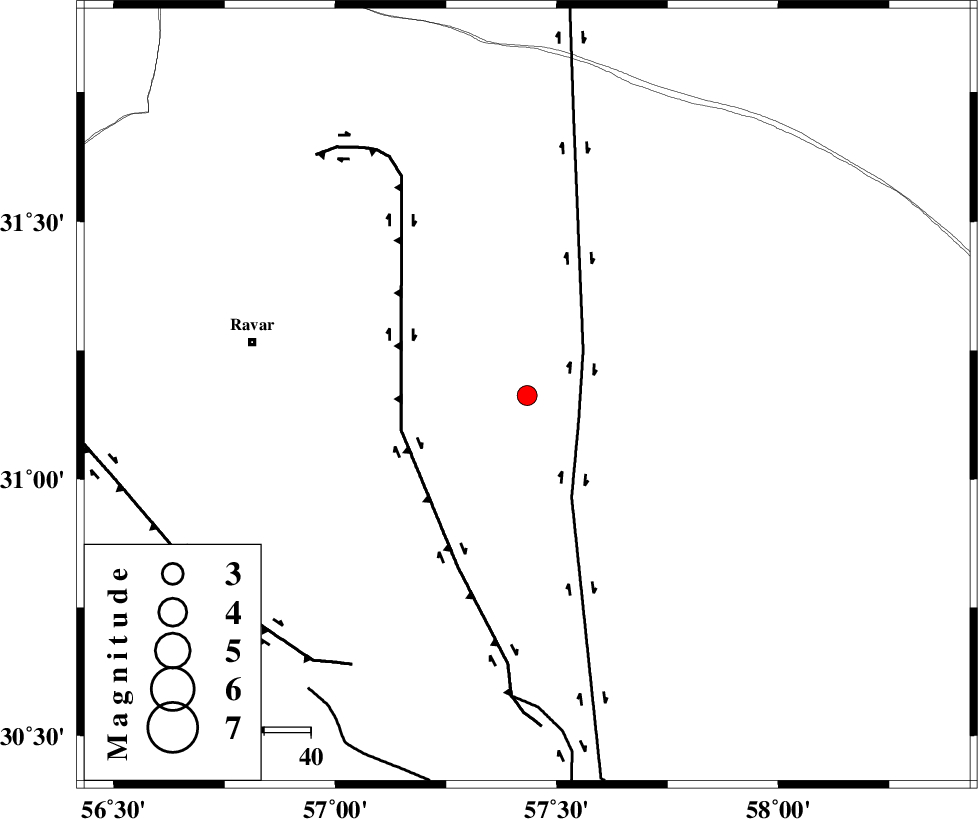

| Location | Lat:31.162 Lon: 57.433 |
| Region | Kerman Province, 60 km South-East of Ravar |
Nearest Cities |
|
| 60 km South East of Ravar, Kerman Province | |
| 62 km North East of Hejdak, Kerman Province | |
| 63 km North East of Harjand, Kerman Province | |
| 63 km South East of Dehali, Kerman Province | |
| 71 km North East of Hatkan, Kerman Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| NAYBAND_F (Length: 258 km) , Distance to epicenter: 12 km | |
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 28 km | |
| GOLBAF_SIRCH_F (Length: 114 km) , Distance to epicenter: 65 km | |
| Number of Phases | 8 |
| RMS | 0.2 |
| Number of Stations | 7 |
| Error in Latitude | >3.8 km |
| Error in Longitude | 4.4 km |
| Error in Depth | 8.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 108114 | IIEES | KRBR | E | 118.7 | 0.41 | 2016-07-28 01:58:31 | 2016-07-31 10:21:00 | n |
| 108115 | IIEES | BSRN | N | 79.7 | 0.25 | 2016-07-28 01:58:42 | 2016-07-31 10:21:00 | n |
| 108116 | IIEES | BSRN | E | 72.7 | 0.33 | 2016-07-28 01:58:43 | 2016-07-31 10:21:00 | n |
| 108117 | IIEES | TABS | N | 37.1 | 0.47 | 2016-07-28 01:59:19 | 2016-07-31 10:21:00 | n |
| 108118 | IIEES | SHRO | E | 5.7 | 0.47 | 2016-07-28 02:00:36 | 2016-07-31 10:21:00 | n |
| 108119 | IIEES | SHRO | N | 4.3 | 0.59 | 2016-07-28 02:00:42 | 2016-07-31 10:21:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2016-07-28 01:58:12 | 0 | y | 146 | 206 | |||
| IIEES | KRBR | N | Sg | E | 2016-07-28 01:58:30 | -0.01 | y | 146 | 206 | |||
| IIEES | BSRN | Z | Pg | E | 2016-07-28 01:58:18 | -0.16 | y | 184 | 61 | |||
| IIEES | TABS | Z | Pn | E | 2016-07-28 01:58:30 | -0.08 | y | 277 | 354 | |||
| IIEES | YZKH | Z | Pn | E | 2016-07-28 01:58:33 | -0.18 | y | 302 | 298 | |||
| IIEES | SHRT | Z | Pn | E | 2016-07-28 01:58:44 | 0.32 | y | 385 | 44 | |||
| IIEES | NASN | Z | Pn | E | 2016-07-28 01:58:55 | 0.26 | y | 473 | 294 | |||
| IIEES | SHRO | Z | Pn | E | 2016-07-28 01:59:04 | -0.03 | y | 553 | 347 | |||
