Magnitude |
:3 |
| Date & Time (UTC) | 2016-07-31 12:19:52.4 |
| Date & Time (Local) | 1395/5/10 16:49:52.4 |

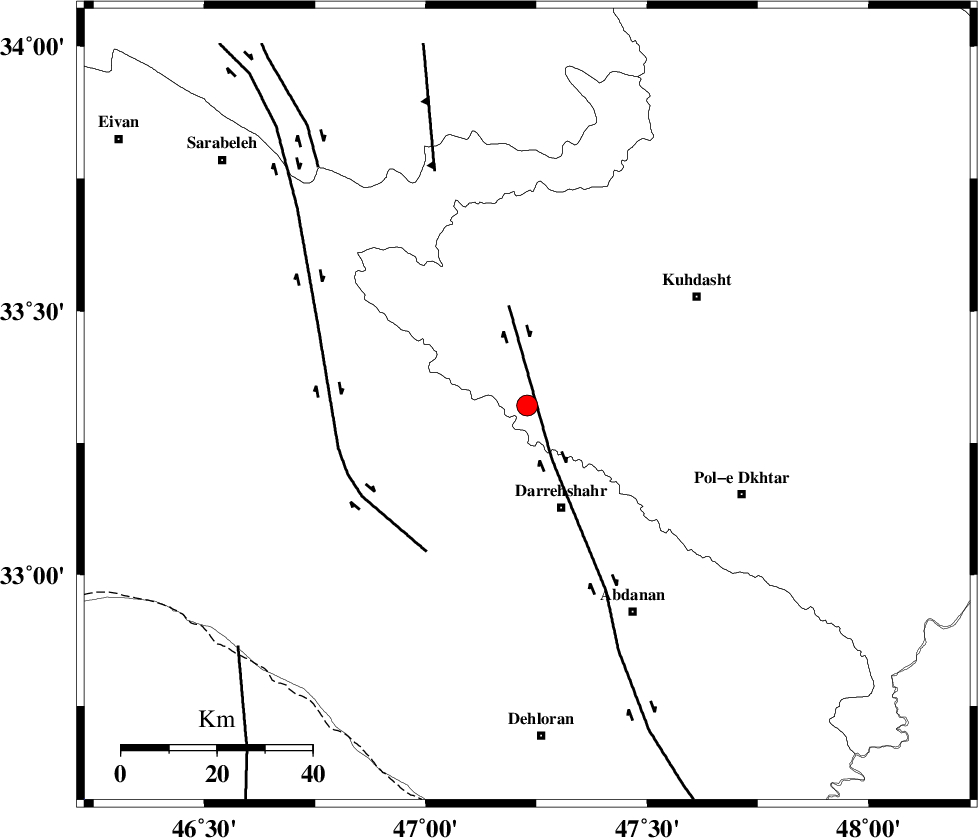

| Location | Lat:33.321 Lon: 47.229 |
| Region | Lorestan Province, 23 km North of Darreh Shahr |
Nearest Cities |
|
| 14 km West of Kunani, Lorestan Province | |
| 17 km South of Garab, Lorestan Province | |
| 20 km West of Suri, Lorestan Province | |
| 20 km North West of Dashtabad-e olia, Ilam Province | |
| 23 km North of Darreh Shahr, Ilam Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 31 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 59 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 62 km | |
| Number of Phases | 9 |
| RMS | 0.2 |
| Number of Stations | 8 |
| Error in Latitude | >5.2 km |
| Error in Longitude | 4.3 km |
| Error in Depth | 8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 108173 | IIEES | SNGE | N | 265.9 | 0.37 | 2016-07-31 12:20:53 | 2016-08-01 06:28:00 | n |
| 108174 | IIEES | SNGE | E | 240.4 | 0.63 | 2016-07-31 12:20:57 | 2016-08-01 06:28:00 | n |
| 108175 | IIEES | KHMZ | E | 102.1 | 0.56 | 2016-07-31 12:21:15 | 2016-08-01 06:28:00 | n |
| 108176 | IIEES | ASAO | N | 64.4 | 0.54 | 2016-07-31 12:21:23 | 2016-08-01 06:28:00 | n |
| 108177 | IIEES | ASAO | E | 62.5 | 0.48 | 2016-07-31 12:21:27 | 2016-08-01 06:28:00 | n |
| 108178 | IIEES | GHVR | E | 35.1 | 0.67 | 2016-07-31 12:22:00 | 2016-08-01 06:28:00 | n |
| 108179 | IIEES | GHVR | N | 37.9 | 0.76 | 2016-07-31 12:22:00 | 2016-08-01 06:28:00 | n |
| 108180 | IIEES | CHTH | E | 5.2 | 0.56 | 2016-07-31 12:22:10 | 2016-08-01 06:28:00 | n |
| 108181 | IIEES | CHTH | N | 7.5 | 0.51 | 2016-07-31 12:22:20 | 2016-08-01 06:28:00 | n |
| 108182 | IIEES | DAMV | E | 10.3 | 0.43 | 2016-07-31 12:22:02 | 2016-08-01 06:28:00 | n |
| 108183 | IIEES | DAMV | N | 8 | 0.6 | 2016-07-31 12:22:32 | 2016-08-01 06:28:00 | n |
| 108184 | IIEES | NASN | E | 7.8 | 0.64 | 2016-07-31 12:22:33 | 2016-08-01 06:28:00 | n |
| 108185 | IIEES | NASN | N | 5.3 | 0.53 | 2016-07-31 12:22:35 | 2016-08-01 06:28:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SNGE | Z | Pg | E | 2016-07-31 12:20:24 | -0.08 | y | 197 | 3 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-07-31 12:20:32 | 0.08 | y | 258 | 79 | |||
| IIEES | ASAO | Z | Pn | E | 2016-07-31 12:20:37 | 0.48 | y | 292 | 61 | |||
| IIEES | ASAO | E | Sg | E | 2016-07-31 12:21:14 | -0.1 | y | 292 | 61 | |||
| IIEES | GHVR | Z | Pn | E | 2016-07-31 12:20:49 | 0.17 | y | 393 | 70 | |||
| IIEES | CHTH | Z | P | E | 2016-07-31 12:20:57 | -0.06 | y | 458 | 50 | |||
| IIEES | DAMV | Z | Pn | E | 2016-07-31 12:21:02 | -0.36 | y | 505 | 58 | |||
| IIEES | NASN | Z | Pn | E | 2016-07-31 12:21:05 | -0.22 | y | 524 | 95 | |||
| IIEES | AHRM | Z | Pn | E | 2016-07-31 12:21:17 | -0.16 | y | 628 | 141 | |||
