Magnitude |
:3.3 |
| Date & Time (UTC) | 2016-08-01 21:04:42.0 |
| Date & Time (Local) | 1395/5/12 01:34:42.0 |

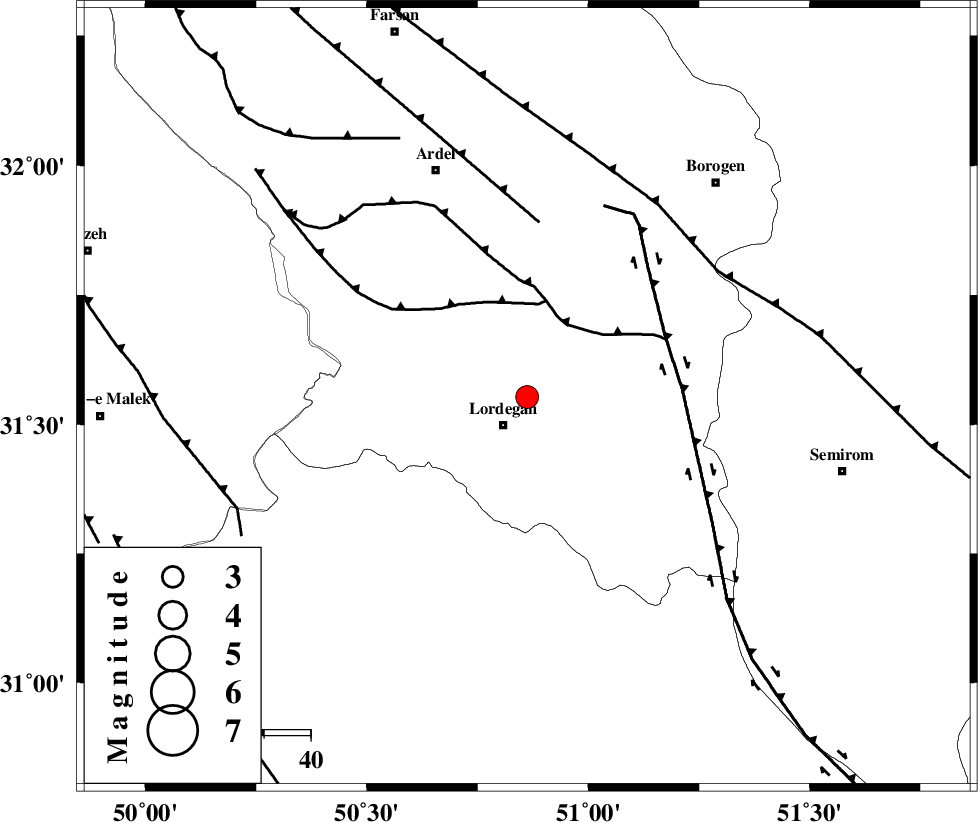

| Location | Lat:31.553 Lon: 50.862 |
| Region | Chaharmahal Bakhtiari Province, 8 km of Lordegan |
Nearest Cities |
|
| 8 km North of Lordegan, Chaharmahal Bakhtiari Province | |
| 11 km of Armand-e olia, Chaharmahal Bakhtiari Province | |
| 19 km North West of Aluni, Chaharmahal Bakhtiari Province | |
| 20 km North of Sardasht, Chaharmahal Bakhtiari Province | |
| 37 km North East of Pataveh, Kohkiluieh va boyerahmad Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| DOPOLAN_F (Length: 107 km) , Distance to epicenter: 18 km | |
| SABZKUH_F (Length: 67 km) , Distance to epicenter: 20 km | |
| DENA_F (Length: 137 km) , Distance to epicenter: 32 km | |
| Number of Phases | 18 |
| RMS | 0.5 |
| Number of Stations | 17 |
| Error in Latitude | >4 km |
| Error in Longitude | 3 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 108223 | IIEES | NASN | N | 108.4 | 0.55 | 2016-08-01 21:05:57 | 2016-08-02 05:17:00 | n |
| 108224 | IIEES | NASN | E | 89.6 | 0.41 | 2016-08-01 21:05:58 | 2016-08-02 05:17:00 | n |
| 108225 | IIEES | KHMZ | E | 117.8 | 0.8 | 2016-08-01 21:06:03 | 2016-08-02 05:17:00 | n |
| 108226 | IIEES | AHRM | N | 155.3 | 0.64 | 2016-08-01 21:06:16 | 2016-08-02 05:17:00 | n |
| 108227 | IIEES | AHRM | E | 108.6 | 0.46 | 2016-08-01 21:06:16 | 2016-08-02 05:17:00 | n |
| 108228 | IIEES | GHVR | E | 55.2 | 0.7 | 2016-08-01 21:06:30 | 2016-08-02 05:17:00 | n |
| 108229 | IIEES | GHVR | N | 57 | 0.7 | 2016-08-01 21:06:30 | 2016-08-02 05:17:00 | n |
| 108230 | IIEES | ASAO | E | 61.4 | 0.9 | 2016-08-01 21:06:34 | 2016-08-02 05:17:00 | n |
| 108231 | IIEES | ASAO | N | 80.7 | 0.72 | 2016-08-01 21:06:35 | 2016-08-02 05:17:00 | n |
| 108232 | IIEES | YZKH | E | 45.6 | 0.63 | 2016-08-01 21:06:36 | 2016-08-02 05:17:00 | n |
| 108233 | IIEES | YZKH | N | 33.4 | 0.73 | 2016-08-01 21:06:47 | 2016-08-02 05:17:00 | n |
| 108234 | IIEES | DAMV | E | 20.3 | 0.51 | 2016-08-01 21:07:02 | 2016-08-02 05:17:00 | n |
| 108235 | IIEES | DAMV | N | 51 | 0.9 | 2016-08-01 21:07:08 | 2016-08-02 05:17:00 | n |
| 108236 | IIEES | CHTH | E | 11 | 0.7 | 2016-08-01 21:07:14 | 2016-08-02 05:17:00 | n |
| 108237 | IIEES | SNGE | E | 21.6 | 0.42 | 2016-08-01 21:07:02 | 2016-08-02 05:17:00 | n |
| 108238 | IIEES | SNGE | N | 20.7 | 0.63 | 2016-08-01 21:07:24 | 2016-08-02 05:17:00 | n |
| 108239 | IIEES | KRBR | E | 14.9 | 0.77 | 2016-08-01 21:07:31 | 2016-08-02 05:17:00 | n |
| 108240 | IIEES | KRBR | N | 26.6 | 0.86 | 2016-08-01 21:07:33 | 2016-08-02 05:17:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | NASN | Z | Pn | E | 2016-08-01 21:05:17 | -0.86 | y | 230 | 53 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-08-01 21:05:21 | -0.04 | y | 257 | 341 | |||
| IIEES | AHRM | Z | Pn | E | 2016-08-01 21:05:26 | -0.01 | y | 301 | 172 | |||
| IIEES | GHVR | Z | Pn | E | 2016-08-01 21:05:30 | 0.6 | y | 327 | 6 | |||
| IIEES | ASAO | Z | Pn | E | 2016-08-01 21:05:32 | 0.23 | y | 341 | 347 | |||
| IIEES | YZKH | Z | Pn | E | 2016-08-01 21:05:35 | 0.51 | y | 365 | 74 | |||
| IIEES | DAMV | Z | Pn | E | 2016-08-01 21:05:47 | -0.43 | y | 464 | 13 | |||
| IIEES | CHTH | Z | Pn | E | 2016-08-01 21:05:50 | 0.45 | y | 484 | 3 | |||
| IIEES | SNGE | Z | Pn | E | 2016-08-01 21:05:52 | -0.58 | y | 511 | 321 | |||
| IIEES | KRBR | Z | Pn | E | 2016-08-01 21:06:03 | 0.27 | y | 591 | 106 | |||
| IIEES | GIDE | Z | Pn | E | 2016-08-01 21:06:26 | 21.93 | n | 4 | 602 | 352 | ||
| IIEES | TABS | Z | Pn | E | 2016-08-01 21:06:07 | -0.54 | y | 632 | 67 | |||
| IIEES | SHRO | Z | Pn | E | 2016-08-01 21:06:14 | -0.23 | y | 687 | 43 | |||
| IIEES | BSRN | Z | Pn | E | 2016-08-01 21:06:27 | 0.23 | y | 784 | 85 | |||
| IIEES | MRVT | Z | Pn | E | 2016-08-01 21:06:33 | 0.9 | y | 830 | 34 | |||
| IIEES | GRMI | Z | Pn | E | 2016-08-01 21:06:35 | 0.02 | y | 849 | 342 | |||
| IIEES | BJRD | Z | Pn | E | 2016-08-01 21:06:42 | -0.17 | y | 908 | 40 | |||
| IIEES | SHRT | Z | Pn | E | 2016-08-01 21:06:43 | 0.1 | y | 915 | 73 | |||
