Magnitude |
:2.8 |
| Date & Time (UTC) | 2016-08-09 05:46:21.1 |
| Date & Time (Local) | 1395/5/19 10:16:21.1 |

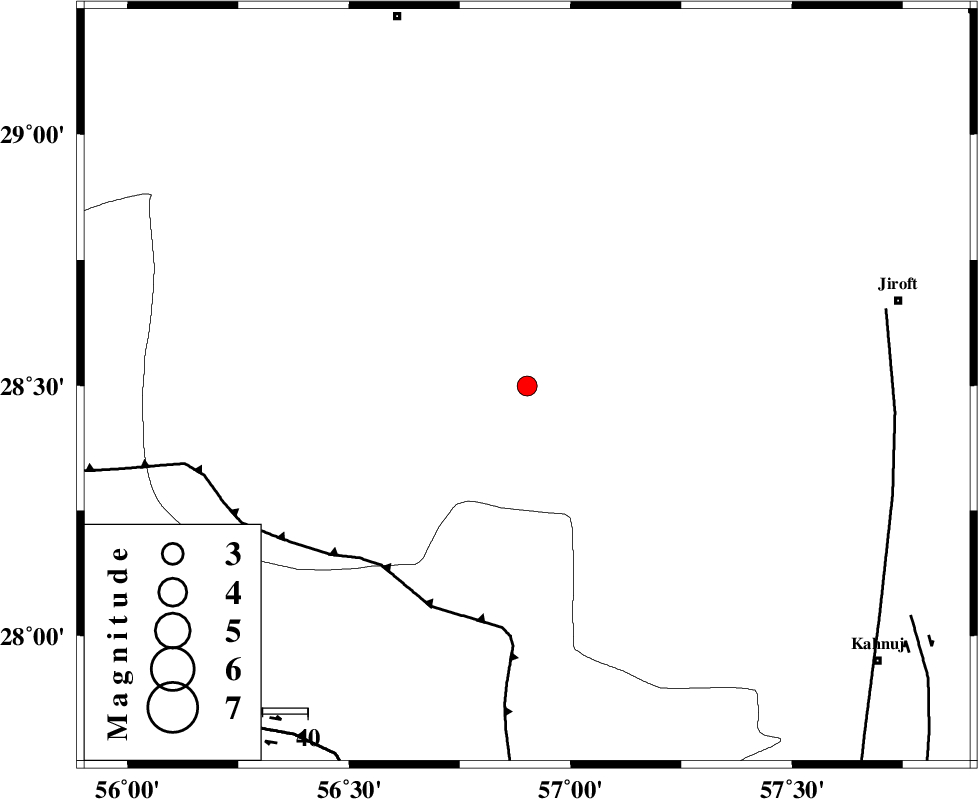

| Location | Lat:28.499 Lon: 56.902 |
| Region | Kerman Province, 84 km South-West of Jiroft |
Nearest Cities |
|
| 18 km North of Sarkhan, Kerman Province | |
| 30 km South West of Dolatabad, Kerman Province | |
| 51 km North East of Shahmaran, Kerman Province | |
| 53 km North West of Hurpasefid, Kerman Province | |
| 53 km North East of Arzuieeh, Kerman Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 51 km | |
| SABZEVARAN_F (Length: 190 km) , Distance to epicenter: 81 km | |
| HZF2 (Length: 437 km) , Distance to epicenter: 92 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 6 |
| Error in Latitude | >6.6 km |
| Error in Longitude | 6.4 km |
| Error in Depth | 9.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 108407 | IIEES | KRBR | N | 128.6 | 0.18 | 2016-08-09 05:47:15 | 2016-08-09 06:16:00 | n |
| 108408 | IIEES | KRBR | E | 127.4 | 0.3 | 2016-08-09 05:47:21 | 2016-08-09 06:16:00 | n |
| 108409 | IIEES | BSRN | E | 12.6 | 0.67 | 2016-08-09 05:48:36 | 2016-08-09 06:16:00 | n |
| 108410 | IIEES | BSRN | N | 10.5 | 0.73 | 2016-08-09 05:48:36 | 2016-08-09 06:16:00 | n |
| 108411 | IIEES | TABS | N | 4.3 | 0.66 | 2016-08-09 05:49:26 | 2016-08-09 06:16:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2016-08-09 05:46:48 | -0.35 | y | 165 | 355 | |||
| IIEES | KRBR | N | Sg | E | 2016-08-09 05:47:08 | 0.2 | y | 165 | 355 | |||
| IIEES | ZHSF | Z | Pn | E | 2016-08-09 05:47:18 | 0.17 | y | 397 | 71 | |||
| IIEES | BSRN | Z | Pn | E | 2016-08-09 05:47:23 | -0.07 | y | 440 | 29 | |||
| IIEES | TABS | Z | Pn | E | 2016-08-09 05:47:40 | 0.27 | y | 571 | 2 | |||
| IIEES | NASN | Z | Pn | E | 2016-08-09 05:47:45 | 0.15 | y | 617 | 322 | |||
| IIEES | SHRT | Z | Pn | E | 2016-08-09 05:47:49 | -0.37 | y | 656 | 29 | |||
