Magnitude |
:3.1 |
| Date & Time (UTC) | 2016-08-09 21:06:44.3 |
| Date & Time (Local) | 1395/5/20 01:36:44.3 |

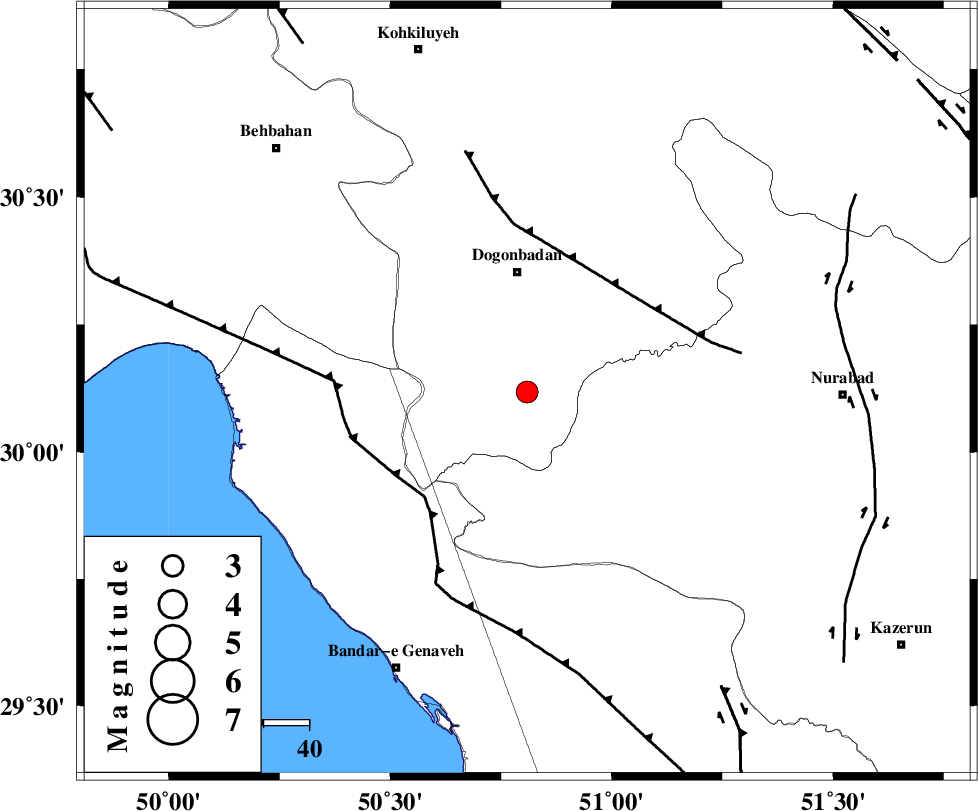

| Location | Lat:30.118 Lon: 50.809 |
| Region | Kohkiluieh va boyerahmad Province, 26 km South of Dogonbadan |
Nearest Cities |
|
| 26 km South of Dogonbadan, Kohkiluieh va boyerahmad Province | |
| 38 km North West of Babamonir, Fars Province | |
| 43 km South West of Basht, Kohkiluieh va boyerahmad Province | |
| 44 km South West of Abdehgah, Kohkiluieh va boyerahmad Province | |
| 47 km North East of Siyahmakan-e bozorg, Bushehr Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MISHAN_F (Length: 76 km) , Distance to epicenter: 31 km | |
| ZFF3 (Length: 125 km) , Distance to epicenter: 32 km | |
| RAG_E_SEFID_F (Length: 84 km) , Distance to epicenter: 42 km | |
| Number of Phases | 11 |
| RMS | 0.2 |
| Number of Stations | 8 |
| Error in Latitude | >3.7 km |
| Error in Longitude | 4.2 km |
| Error in Depth | 9.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 108452 | IIEES | KHMZ | E | 15.4 | 0.4 | 2016-08-09 21:08:31 | 2016-08-10 07:01:00 | n |
| 108453 | IIEES | ASAO | E | 16.9 | 0.9 | 2016-08-09 21:08:49 | 2016-08-10 07:01:00 | n |
| 108454 | IIEES | ASAO | N | 23 | 0.45 | 2016-08-09 21:08:49 | 2016-08-10 07:01:00 | n |
| 108455 | IIEES | KRBR | N | 6.1 | 0.47 | 2016-08-09 21:09:06 | 2016-08-10 07:01:00 | n |
| 108456 | IIEES | KRBR | E | 8 | 0.79 | 2016-08-09 21:09:07 | 2016-08-10 07:01:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pg | E | 2016-08-09 21:07:08 | -0.23 | y | 147 | 161 | |||
| IIEES | AHRM | N | Sg | E | 2016-08-09 21:07:26 | 0.2 | y | 147 | 161 | |||
| IIEES | NASN | Z | Pn | E | 2016-08-09 21:07:36 | 0.2 | y | 353 | 32 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-08-09 21:07:43 | -0.02 | y | 410 | 349 | |||
| IIEES | YZKH | Z | Pn | E | 2016-08-09 21:07:46 | 0.1 | y | 440 | 54 | |||
| IIEES | ASAO | Z | Pn | E | 2016-08-09 21:07:53 | 0.03 | y | 497 | 352 | |||
| IIEES | ASAO | N | S | E | 2016-08-09 21:08:44 | 0.02 | y | 497 | 352 | |||
| IIEES | KRBR | Z | Pn | E | 2016-08-09 21:08:03 | -0.22 | y | 574 | 90 | |||
| IIEES | SNGE | Z | Pn | E | 2016-08-09 21:08:10 | -1.6 | n | 4 | 640 | 330 | ||
| IIEES | TABS | Z | Pn | E | 2016-08-09 21:08:20 | -0.07 | y | 714 | 55 | |||
| IIEES | SHRO | Z | Pn | E | 2016-08-09 21:08:32 | -0.21 | y | 814 | 35 | |||
