Magnitude |
:2.8 |
| Date & Time (UTC) | 2016-08-12 06:05:50.3 |
| Date & Time (Local) | 1395/5/22 10:35:50.3 |

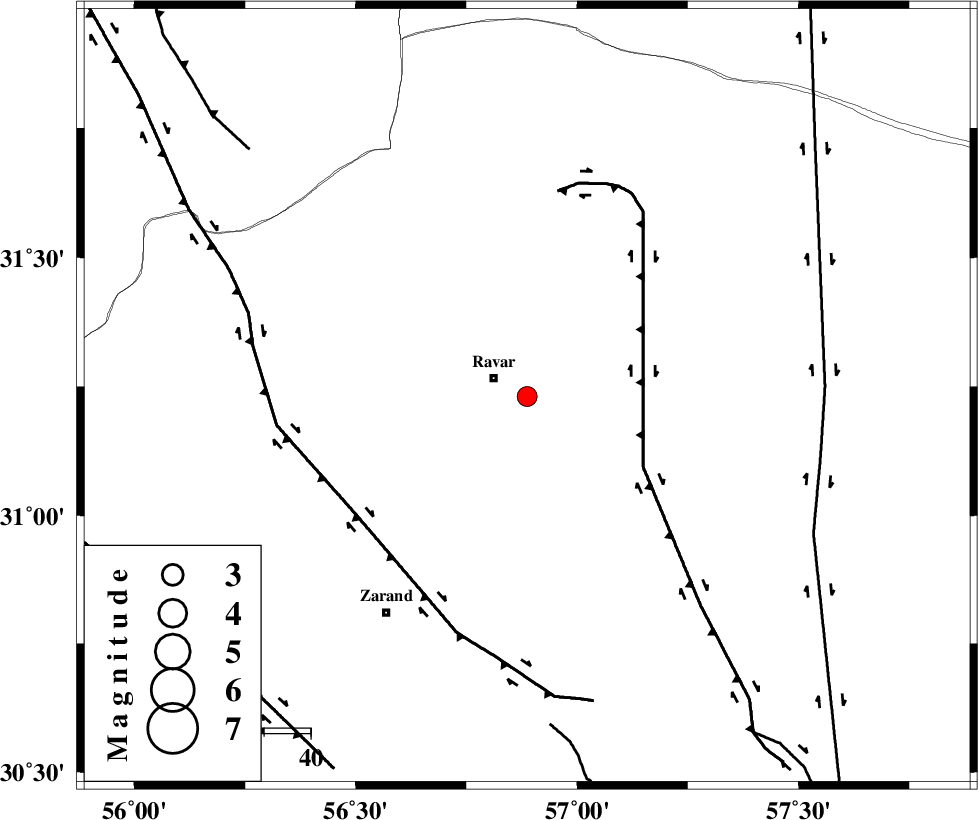

| Location | Lat:31.231 Lon: 56.887 |
| Region | Kerman Province, 8 km of Ravar |
Nearest Cities |
|
| 8 km of Ravar, Kerman Province | |
| 13 km of Dehali, Kerman Province | |
| 35 km North East of Ahmadi, Kerman Province | |
| 36 km North East of Dasht-e khak, Kerman Province | |
| 44 km North East of Hatkan, Kerman Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 29 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 45 km | |
| NAYBAND_F (Length: 258 km) , Distance to epicenter: 64 km | |
| Number of Phases | 9 |
| RMS | 0.3 |
| Number of Stations | 7 |
| Error in Latitude | >1.9 km |
| Error in Longitude | 4.4 km |
| Error in Depth | 6.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 108493 | IIEES | KRBR | N | 113.3 | 0.29 | 2016-08-12 06:06:32 | 2016-08-13 05:31:00 | n |
| 108494 | IIEES | KRBR | E | 123.9 | 0.29 | 2016-08-12 06:06:37 | 2016-08-13 05:31:00 | n |
| 108495 | IIEES | YZKH | E | 49.1 | 0.33 | 2016-08-12 06:07:05 | 2016-08-13 05:31:00 | n |
| 108496 | IIEES | TABS | N | 38.4 | 0.43 | 2016-08-12 06:07:17 | 2016-08-13 05:31:00 | n |
| 108497 | IIEES | SHRO | E | 9.4 | 0.57 | 2016-08-12 06:08:27 | 2016-08-13 05:31:00 | n |
| 108498 | IIEES | SHRO | N | 4.6 | 0.57 | 2016-08-12 06:08:33 | 2016-08-13 05:31:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2016-08-12 06:06:13 | -0.22 | y | 139 | 185 | |||
| IIEES | KRBR | N | Sg | E | 2016-08-12 06:06:30 | 0.11 | y | 139 | 185 | |||
| IIEES | BSRN | Z | Pn | E | 2016-08-12 06:06:26 | -0.16 | y | 227 | 68 | |||
| IIEES | YZKH | Z | Pn | E | 2016-08-12 06:06:29 | 0.3 | y | 253 | 301 | |||
| IIEES | TABS | Z | Pn | E | 2016-08-12 06:06:31 | 0.23 | y | 269 | 5 | |||
| IIEES | TABS | N | Sg | E | 2016-08-12 06:07:06 | -0.1 | y | 269 | 5 | |||
| IIEES | SHRT | Z | Pn | E | 2016-08-12 06:06:50 | 0.46 | y | 417 | 49 | |||
| IIEES | NASN | Z | Pn | E | 2016-08-12 06:06:50 | -0.1 | y | 423 | 295 | |||
| IIEES | SHRO | Z | Pn | E | 2016-08-12 06:07:03 | -0.71 | y | 536 | 352 | |||
