Magnitude |
:2.7 |
| Date & Time (UTC) | 2016-08-19 05:30:02.7 |
| Date & Time (Local) | 1395/5/29 10:00:02.7 |
| Location | Lat:33.896 Lon: 48.649 |
| Region | Lorestan Province, 10 km -West of Borujerd |
Nearest Cities |
|
| 7 km of Bon dizeh, Lorestan Province | |
| 10 km North West of Borujerd, Lorestan Province | |
| 13 km South of Ashtarinan, Lorestan Province | |
| 14 km North of Pellekan-e sofla, Lorestan Province | |
| 15 km North West of Hemmatabad, Lorestan Province | |
| Depth | 15 km |
| Agency | |

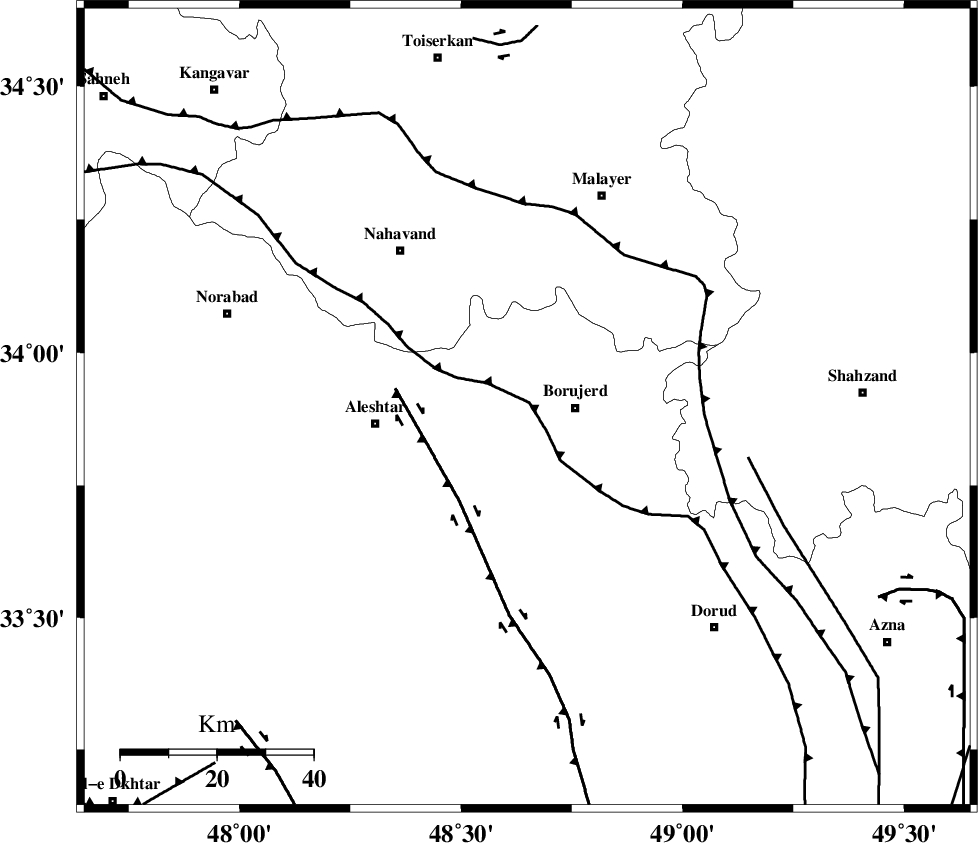

Faults within 150 km: |
|
| NAHAVAND_F (Length: 102 km) , Distance to epicenter: 3 km | |
| DORUD (Length: 100 km) , Distance to epicenter: 14 km | |
| SAHANEH_F (Length: 77 km) , Distance to epicenter: 47 km | |
| Number of Phases | 9 |
| RMS | 0.3 |
| Number of Stations | 8 |
| Error in Latitude | >7.5 km |
| Error in Longitude | 5.2 km |
| Error in Depth | 4.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 108635 | IIEES | ASAO | N | 185.9 | 0.41 | 2016-08-19 05:30:49 | 2016-08-20 06:36:00 | n |
| 108636 | IIEES | ASAO | E | 126.3 | 0.31 | 2016-08-19 05:30:49 | 2016-08-20 06:36:00 | n |
| 108637 | IIEES | SNGE | N | 65.4 | 0.55 | 2016-08-19 05:31:05 | 2016-08-20 06:36:00 | n |
| 108638 | IIEES | GHVR | N | 43.3 | 0.43 | 2016-08-19 05:31:21 | 2016-08-20 06:36:00 | n |
| 108639 | IIEES | GHVR | E | 41.4 | 0.52 | 2016-08-19 05:31:21 | 2016-08-20 06:36:00 | n |
| 108640 | IIEES | CHTH | N | 13.9 | 0.35 | 2016-08-19 05:31:36 | 2016-08-20 06:36:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pg | E | 2016-08-19 05:30:23 | -0.42 | y | 123 | 98 | |||
| IIEES | KHMZ | N | Sg | E | 2016-08-19 05:30:38 | -0.22 | y | 123 | 98 | |||
| IIEES | ASAO | Z | Pg | E | 2016-08-19 05:30:27 | 0.12 | y | 146 | 60 | |||
| IIEES | SNGE | Z | Pg | E | 2016-08-19 05:30:32 | -0.29 | y | 179 | 318 | |||
| IIEES | GHVR | Z | Pn | E | 2016-08-19 05:30:41 | -0.03 | y | 248 | 74 | |||
| IIEES | ZNJK | Z | Pn | E | 2016-08-19 05:30:48 | 0.16 | y | 308 | 1 | |||
| IIEES | CHTH | Z | Pn | E | 2016-08-19 05:30:49 | -0.21 | y | 318 | 45 | |||
| IIEES | DAMV | Z | Pn | E | 2016-08-19 05:30:55 | 0.45 | y | 360 | 57 | |||
| IIEES | NASN | Z | Pn | E | 2016-08-19 05:31:01 | 0.66 | y | 406 | 106 | |||
