Magnitude |
:2.8 |
| Date & Time (UTC) | 2016-08-19 20:34:55.1 |
| Date & Time (Local) | 1395/5/30 01:04:55.1 |

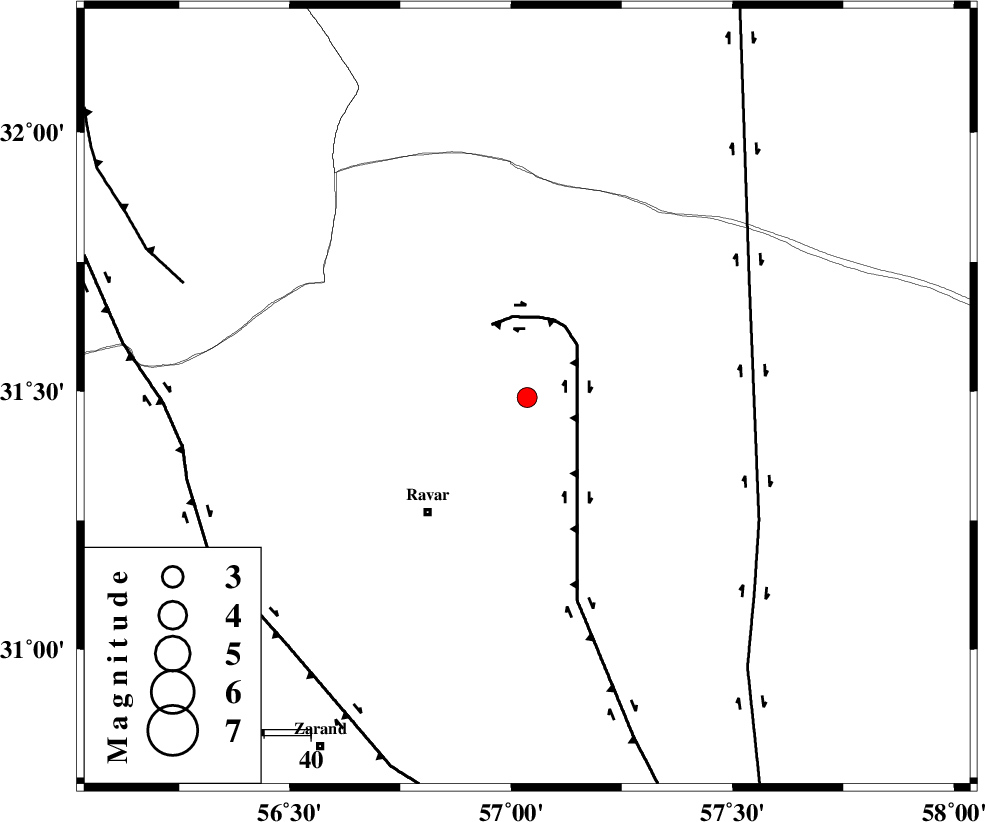

| Location | Lat:31.488 Lon: 57.036 |
| Region | Kerman Province, 33 km North-East of Ravar |
Nearest Cities |
|
| 29 km North East of Dehali, Kerman Province | |
| 33 km North East of Ravar, Kerman Province | |
| 66 km North East of Dasht-e khak, Kerman Province | |
| 66 km North East of Ahmadi, Kerman Province | |
| 70 km North East of Toghroljerd, Kerman Province | |
| Depth | 16 km |
| Agency | |
Faults within 150 km: |
|
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 16 km | |
| NAYBAND_F (Length: 258 km) , Distance to epicenter: 54 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 74 km | |
| Number of Phases | 9 |
| RMS | 0.4 |
| Number of Stations | 5 |
| Error in Latitude | >4.2 km |
| Error in Longitude | 2.7 km |
| Error in Depth | 7.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 108676 | IIEES | KRBR | E | 108.7 | 0.13 | 2016-08-19 20:35:44 | 2016-08-20 06:36:00 | n |
| 108677 | IIEES | KRBR | N | 161.2 | 0.16 | 2016-08-19 20:35:44 | 2016-08-20 06:36:00 | n |
| 108678 | IIEES | BSRN | N | 65.2 | 0.32 | 2016-08-19 20:35:54 | 2016-08-20 06:36:00 | n |
| 108679 | IIEES | BSRN | E | 63.1 | 0.22 | 2016-08-19 20:35:56 | 2016-08-20 06:36:00 | n |
| 108680 | IIEES | TABS | N | 42.1 | 0.17 | 2016-08-19 20:36:10 | 2016-08-20 06:36:00 | n |
| 108681 | IIEES | YZKH | E | 33.6 | 0.22 | 2016-08-19 20:36:08 | 2016-08-20 06:36:00 | n |
| 108682 | IIEES | YZKH | N | 35.7 | 0.43 | 2016-08-19 20:36:10 | 2016-08-20 06:36:00 | n |
| 108683 | IIEES | SHRO | N | 6.7 | 0.51 | 2016-08-19 20:37:24 | 2016-08-20 06:36:00 | n |
| 108684 | IIEES | SHRO | E | 7.5 | 0.64 | 2016-08-19 20:37:33 | 2016-08-20 06:36:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2016-08-19 20:35:23 | 0.13 | y | 169 | 189 | |||
| IIEES | BSRN | Z | Pn | E | 2016-08-19 20:35:27 | -0.69 | y | 205 | 75 | |||
| IIEES | BSRN | N | Sg | E | 2016-08-19 20:35:53 | 0.16 | y | 205 | 75 | |||
| IIEES | TABS | Z | Pn | E | 2016-08-19 20:35:32 | 0.38 | y | 240 | 2 | |||
| IIEES | YZKH | Z | Pn | E | 2016-08-19 20:35:34 | 0.29 | y | 252 | 294 | |||
| IIEES | YZKH | N | Sg | E | 2016-08-19 20:36:06 | -0.3 | y | 252 | 294 | |||
| IIEES | SHRT | Z | Pn | E | 2016-08-19 20:35:59 | 8.67 | n | 4 | 388 | 51 | ||
| IIEES | NASN | Z | Pn | E | 2016-08-19 20:36:00 | 4.86 | n | 4 | 425 | 291 | ||
| IIEES | SHRO | Z | Pn | E | 2016-08-19 20:36:06 | 0.02 | y | 510 | 350 | |||
