Magnitude |
:3.5 |
| Date & Time (UTC) | 2016-09-02 09:48:54.8 |
| Date & Time (Local) | 1395/6/12 14:18:54.8 |
| Location | Lat:31.021 Lon: 57.063 |
| Region | Kerman Province, 36 km South-East of Ravar |
Nearest Cities |
|
| 30 km North of Hejdak, Kerman Province | |
| 33 km North East of Hatkan, Kerman Province | |
| 36 km South East of Ravar, Kerman Province | |
| 41 km North of Harjand, Kerman Province | |
| 41 km North East of Ahmadi, Kerman Province | |
| Depth | 14 km |
| Agency | |

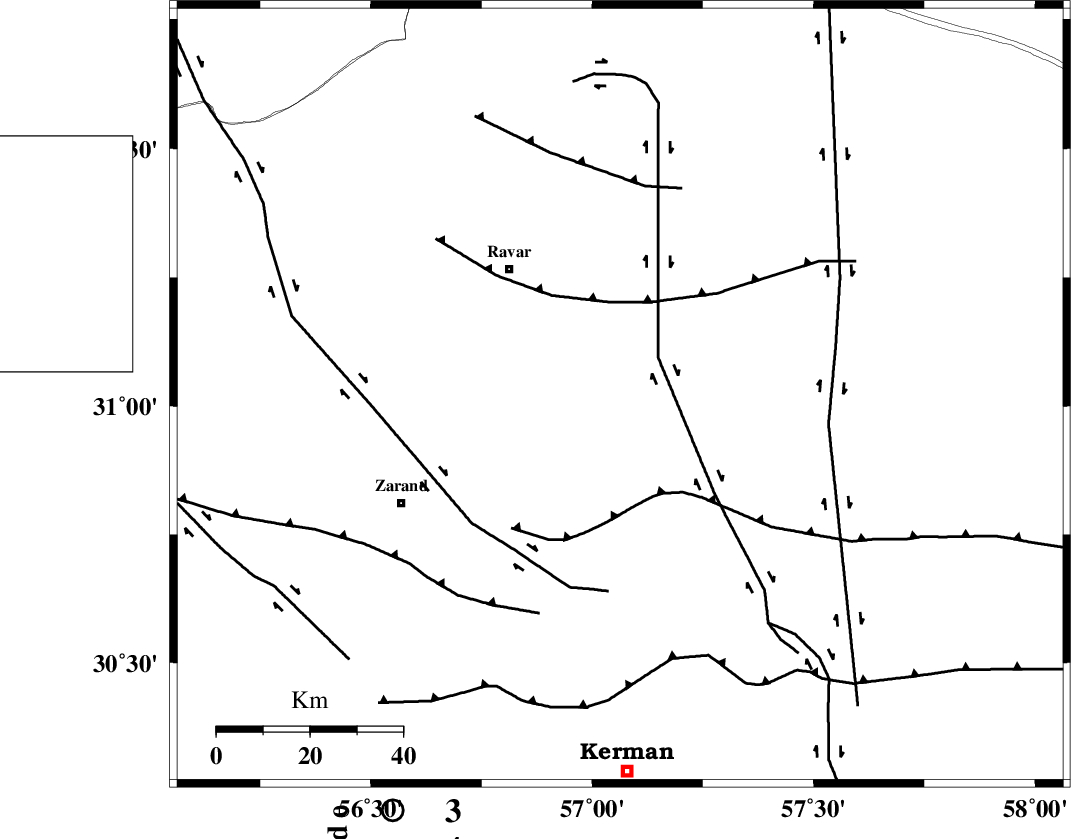

Faults within 150 km: |
|
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 12 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 40 km | |
| NAYBAND_F (Length: 258 km) , Distance to epicenter: 45 km | |
| Number of Phases | 17 |
| RMS | 0.4 |
| Number of Stations | 16 |
| Error in Latitude | >3.3 km |
| Error in Longitude | 3.4 km |
| Error in Depth | 7.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 108953 | IIEES | KRBR | E | 1019.7 | 0.53 | 2016-09-02 09:49:34 | 2016-09-03 05:46:00 | n |
| 108954 | IIEES | KRBR | N | 826 | 0.54 | 2016-09-02 09:49:39 | 2016-09-03 05:46:00 | n |
| 108955 | IIEES | BSRN | N | 246.1 | 0.6 | 2016-09-02 09:50:02 | 2016-09-03 05:46:00 | n |
| 108956 | IIEES | BSRN | E | 245.1 | 0.62 | 2016-09-02 09:50:05 | 2016-09-03 05:46:00 | n |
| 108957 | IIEES | YZKH | N | 154.9 | 0.42 | 2016-09-02 09:50:19 | 2016-09-03 05:46:00 | n |
| 108958 | IIEES | YZKH | E | 196.2 | 0.57 | 2016-09-02 09:50:25 | 2016-09-03 05:46:00 | n |
| 108959 | IIEES | TABS | N | 242 | 0.65 | 2016-09-02 09:50:31 | 2016-09-03 05:46:00 | n |
| 108960 | IIEES | ZHSF | N | 85.1 | 0.42 | 2016-09-02 09:50:49 | 2016-09-03 05:46:00 | n |
| 108961 | IIEES | ZHSF | E | 75.6 | 0.35 | 2016-09-02 09:50:53 | 2016-09-03 05:46:00 | n |
| 108962 | IIEES | SHRT | N | 74.1 | 0.86 | 2016-09-02 09:51:11 | 2016-09-03 05:46:00 | n |
| 108963 | IIEES | NASN | N | 28.1 | 0.55 | 2016-09-02 09:51:14 | 2016-09-03 05:46:00 | n |
| 108964 | IIEES | NASN | E | 30.1 | 0.7 | 2016-09-02 09:51:18 | 2016-09-03 05:46:00 | n |
| 108965 | IIEES | SHRO | N | 42.3 | 0.63 | 2016-09-02 09:51:48 | 2016-09-03 05:46:00 | n |
| 108966 | IIEES | SHRO | E | 26.6 | 0.54 | 2016-09-02 09:51:53 | 2016-09-03 05:46:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2016-09-02 09:49:15 | 0.04 | y | 119 | 194 | |||
| IIEES | BSRN | Z | Pn | E | 2016-09-02 09:49:29 | -0.42 | y | 222 | 61 | |||
| IIEES | YZKH | Z | Pn | E | 2016-09-02 09:49:37 | -0.13 | y | 279 | 304 | |||
| IIEES | YZKH | N | Sg | E | 2016-09-02 09:50:13 | -0.49 | y | 279 | 304 | |||
| IIEES | TABS | Z | Pn | E | 2016-09-02 09:49:38 | -0.02 | y | 292 | 1 | |||
| IIEES | ZHSF | Z | Pn | E | 2016-09-02 09:49:50 | -0.18 | y | 390 | 113 | |||
| IIEES | SHRT | Z | Pn | E | 2016-09-02 09:49:54 | 0 | y | 421 | 45 | |||
| IIEES | NASN | Z | Pn | E | 2016-09-02 09:49:58 | 0.02 | y | 448 | 297 | |||
| IIEES | SHRO | Z | Pn | E | 2016-09-02 09:50:12 | -0.07 | y | 562 | 350 | |||
| IIEES | AHRM | Z | Pn | E | 2016-09-02 09:50:17 | 0.07 | y | 606 | 248 | |||
| IIEES | GHVR | Z | Pn | E | 2016-09-02 09:50:25 | -0.22 | y | 666 | 307 | |||
| IIEES | DAMV | Z | Pn | E | 2016-09-02 09:50:29 | -0.21 | y | 697 | 319 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-09-02 09:50:34 | 0.76 | y | 733 | 296 | |||
| IIEES | MRVT | Z | Pn | E | 2016-09-02 09:50:35 | 0.84 | y | 742 | 353 | |||
| IIEES | BJRD | Z | Pn | E | 2016-09-02 09:50:35 | 0.69 | y | 742 | 2 | |||
| IIEES | ASAO | Z | Pn | E | 2016-09-02 09:50:38 | 0.58 | y | 766 | 303 | |||
| IIEES | CHTH | Z | Pn | E | 2016-09-02 09:50:39 | 0.43 | y | 773 | 316 | |||
