Magnitude |
:2.8 |
| Date & Time (UTC) | 2016-09-01 23:03:55.4 |
| Date & Time (Local) | 1395/6/12 03:33:55.4 |
| Location | Lat:31.485 Lon: 56.776 |
| Region | Kerman Province, 25 km North of Ravar |
Nearest Cities |
|
| 18 km North of Dehali, Kerman Province | |
| 25 km North of Ravar, Kerman Province | |
| 46 km North East of Kuhbanan, Kerman Province | |
| 49 km North East of Jor, Kerman Province | |
| 50 km North East of Toghroljerd, Kerman Province | |
| Depth | 17 km |
| Agency | |

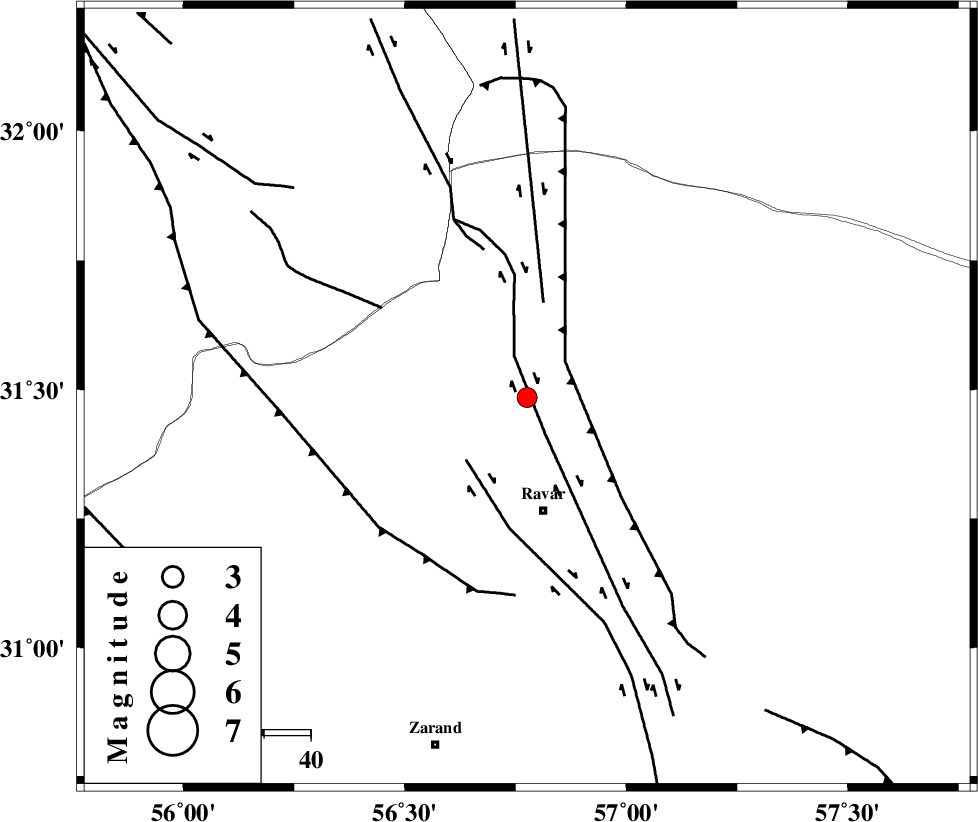

Faults within 150 km: |
|
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 23 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 50 km | |
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 55 km | |
| Number of Phases | 9 |
| RMS | 0.3 |
| Number of Stations | 8 |
| Error in Latitude | >3.9 km |
| Error in Longitude | 3.9 km |
| Error in Depth | 8.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 108979 | IIEES | KRBR | N | 212.4 | 0.14 | 2016-09-01 23:04:47 | 2016-09-03 07:09:00 | n |
| 108980 | IIEES | KRBR | E | 231 | 0.21 | 2016-09-01 23:04:47 | 2016-09-03 07:09:00 | n |
| 108981 | IIEES | BSRN | E | 31.2 | 0.31 | 2016-09-01 23:05:02 | 2016-09-03 07:09:00 | n |
| 108982 | IIEES | YZKH | N | 48.7 | 0.41 | 2016-09-01 23:05:02 | 2016-09-03 07:09:00 | n |
| 108983 | IIEES | SHRO | E | 4.1 | 0.72 | 2016-09-01 23:06:24 | 2016-09-03 07:09:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2016-09-01 23:04:23 | 0.21 | y | 167 | 181 | |||
| IIEES | BSRN | Z | Pn | E | 2016-09-01 23:04:30 | -0.43 | y | 229 | 76 | |||
| IIEES | YZKH | Z | Pn | E | 2016-09-01 23:04:31 | -0.29 | y | 230 | 296 | |||
| IIEES | YZKH | N | Sg | E | 2016-09-01 23:05:00 | -0.21 | y | 230 | 296 | |||
| IIEES | TABS | Z | Pn | E | 2016-09-01 23:04:33 | 0.33 | y | 242 | 8 | |||
| IIEES | NASN | Z | Pn | E | 2016-09-01 23:04:53 | 0.32 | y | 402 | 292 | |||
| IIEES | SHRT | Z | Pn | E | 2016-09-01 23:04:53 | 0.1 | y | 408 | 53 | |||
| IIEES | ZHSF | Z | Pn | E | 2016-09-01 23:04:56 | -0.17 | y | 436 | 117 | |||
| IIEES | SHRO | Z | Pn | E | 2016-09-01 23:05:06 | 0.28 | y | 507 | 352 | |||
