Magnitude |
:2.8 |
| Date & Time (UTC) | 2016-09-05 02:04:40.1 |
| Date & Time (Local) | 1395/6/15 06:34:40.1 |
| Location | Lat:30.091 Lon: 51.62 |
| Region | Fars Province, 10 km of Nurabad |
Nearest Cities |
|
| 8 km North of Gachgaran, Fars Province | |
| 10 km of Nurabad, Fars Province | |
| 19 km East of Fahlian-e olia, Fars Province | |
| 19 km East of Ahangari, Fars Province | |
| 20 km South East of Masiri, Fars Province | |
| Depth | 14 km |
| Agency | |

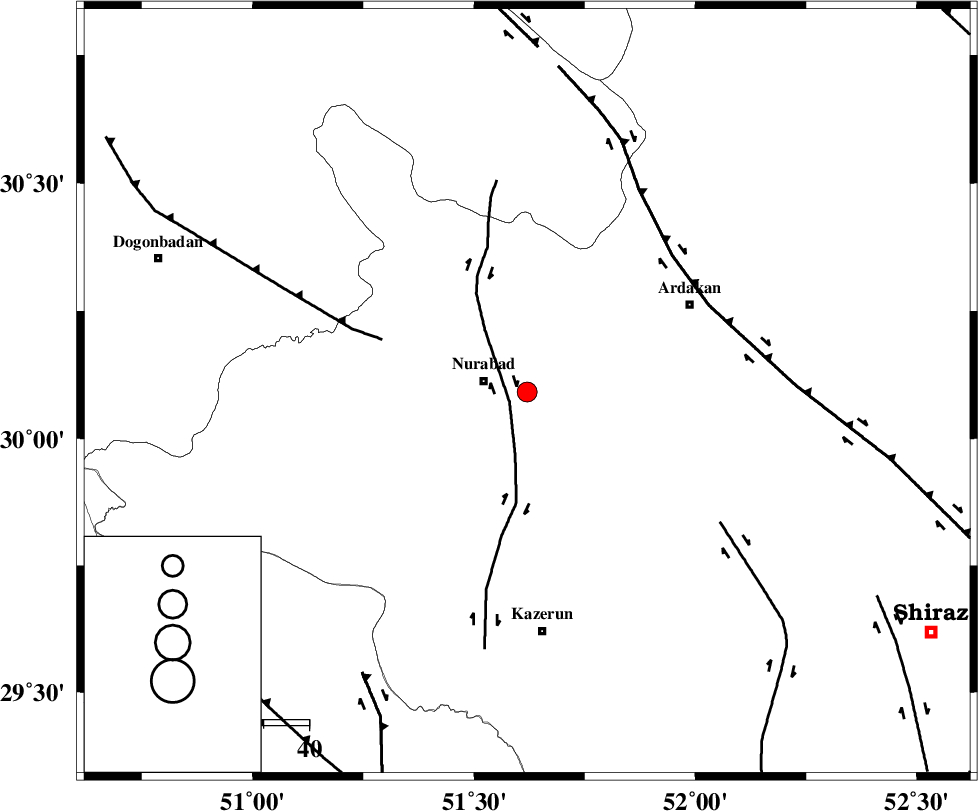

Faults within 150 km: |
|
| KAZERUN_F (Length: 96 km) , Distance to epicenter: 4 km | |
| MISHAN_F (Length: 76 km) , Distance to epicenter: 33 km | |
| HZF3 (Length: 197 km) , Distance to epicenter: 43 km | |
| Number of Phases | 10 |
| RMS | 0.1 |
| Number of Stations | 9 |
| Error in Latitude | >2.7 km |
| Error in Longitude | 2.7 km |
| Error in Depth | 9.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 109004 | IIEES | AHRM | N | 197 | 0.42 | 2016-09-05 02:05:24 | 2016-09-05 04:32:00 | n |
| 109005 | IIEES | KRBR | N | 6.6 | 0.45 | 2016-09-05 02:06:46 | 2016-09-05 04:32:00 | n |
| 109006 | IIEES | KRBR | E | 8 | 0.41 | 2016-09-05 02:06:49 | 2016-09-05 04:32:00 | n |
| 109007 | IIEES | ASAO | E | 8.1 | 0.47 | 2016-09-05 02:06:47 | 2016-09-05 04:32:00 | n |
| 109008 | IIEES | ASAO | N | 4.5 | 0.42 | 2016-09-05 02:06:47 | 2016-09-05 04:32:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pg | E | 2016-09-05 02:05:03 | 0.01 | y | 139 | 193 | |||
| IIEES | AHRM | N | Sg | E | 2016-09-05 02:05:20 | -0.02 | y | 139 | 193 | |||
| IIEES | NASN | Z | Pn | E | 2016-09-05 02:05:27 | 0.02 | y | 321 | 20 | |||
| IIEES | YZKH | Z | Pn | E | 2016-09-05 02:05:35 | -0.09 | y | 381 | 47 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-09-05 02:05:41 | 0.05 | y | 434 | 339 | |||
| IIEES | KRBR | Z | Pn | E | 2016-09-05 02:05:49 | 0.16 | y | 496 | 90 | |||
| IIEES | ASAO | Z | Pn | E | 2016-09-05 02:05:52 | 0.03 | y | 517 | 344 | |||
| IIEES | DAMV | Z | Pn | E | 2016-09-05 02:06:04 | -0.05 | y | 615 | 3 | |||
| IIEES | TABS | Z | Pn | E | 2016-09-05 02:06:08 | -0.12 | y | 653 | 51 | |||
| IIEES | SHRO | Z | Pn | E | 2016-09-05 02:06:24 | -0.01 | y | 774 | 31 | |||
