Magnitude |
:2.9 |
| Date & Time (UTC) | 2016-09-07 09:39:13.3 |
| Date & Time (Local) | 1395/6/17 14:09:13.3 |

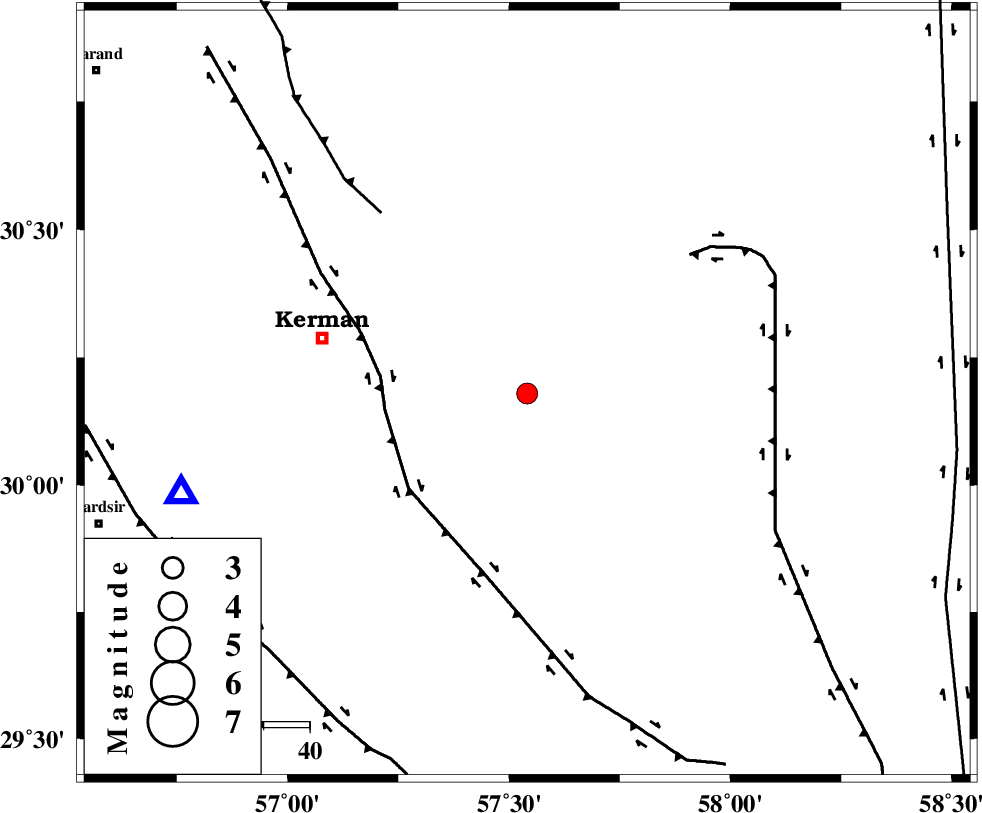

| Location | Lat:30.179 Lon: 57.541 |
| Region | Kerman Province, 46 km South-East of Kerman |
Nearest Cities |
|
| 3 km of Sirch, Kerman Province | |
| 11 km North of Jushan, Kerman Province | |
| 28 km North East of Mahan, Kerman Province | |
| 28 km North East of Langar, Kerman Province | |
| 30 km South West of Shahdad, Kerman Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| GOLBAF_SIRCH_F (Length: 114 km) , Distance to epicenter: 7 km | |
| GOWK_F (Length: 152 km) , Distance to epicenter: 14 km | |
| NAYBAND_F (Length: 258 km) , Distance to epicenter: 27 km | |
| Number of Phases | 8 |
| RMS | 0.2 |
| Number of Stations | 7 |
| Error in Latitude | >2.5 km |
| Error in Longitude | 2.3 km |
| Error in Depth | 4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 109048 | IIEES | KRBR | E | 389 | 0.2 | 2016-09-07 09:39:43 | 2016-09-07 11:09:00 | n |
| 109049 | IIEES | BSRN | N | 64.1 | 0.27 | 2016-09-07 09:40:28 | 2016-09-07 11:09:00 | n |
| 109050 | IIEES | BSRN | E | 63.5 | 0.41 | 2016-09-07 09:40:30 | 2016-09-07 11:09:00 | n |
| 109051 | IIEES | YZKH | N | 16.8 | 0.64 | 2016-09-07 09:41:08 | 2016-09-07 11:09:00 | n |
| 109052 | IIEES | TABS | N | 24.6 | 0.54 | 2016-09-07 09:41:08 | 2016-09-07 11:09:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2016-09-07 09:39:27 | 0 | y | 78.4 | 254 | |||
| IIEES | BSRN | Z | Pn | E | 2016-09-07 09:39:52 | -0.1 | y | 249 | 37 | |||
| IIEES | BSRN | N | Sg | E | 2016-09-07 09:40:23 | 0 | y | 249 | 37 | |||
| IIEES | ZHSF | Z | Pn | E | 2016-09-07 09:40:00 | 0 | y | 319 | 101 | |||
| IIEES | YZKH | Z | Pn | E | 2016-09-07 09:40:07 | 0.02 | y | 373 | 312 | |||
| IIEES | TABS | Z | Pn | E | 2016-09-07 09:40:09 | 0.27 | y | 387 | 354 | |||
| IIEES | SHRT | Z | Pn | E | 2016-09-07 09:40:18 | 0.12 | y | 464 | 33 | |||
| IIEES | SHRO | Z | Pn | E | 2016-09-07 09:40:42 | -0.46 | y | 662 | 348 | |||
