Magnitude |
:3.6 |
| Date & Time (UTC) | 2016-09-10 18:03:42.1 |
| Date & Time (Local) | 1395/6/20 22:33:42.1 |
| Location | Lat:32.095 Lon: 56.229 |
| Region | Yazd Province, 96 km North-East of Bafq |
Nearest Cities |
|
| 31 km North East of Behabad, Yazd Province | |
| 42 km North East of Benestan, Yazd Province | |
| 47 km North of Asfih, Yazd Province | |
| 58 km North East of Kushk, Yazd Province | |
| 72 km North East of Basab, Yazd Province | |
| Depth | 14 km |
| Agency | |

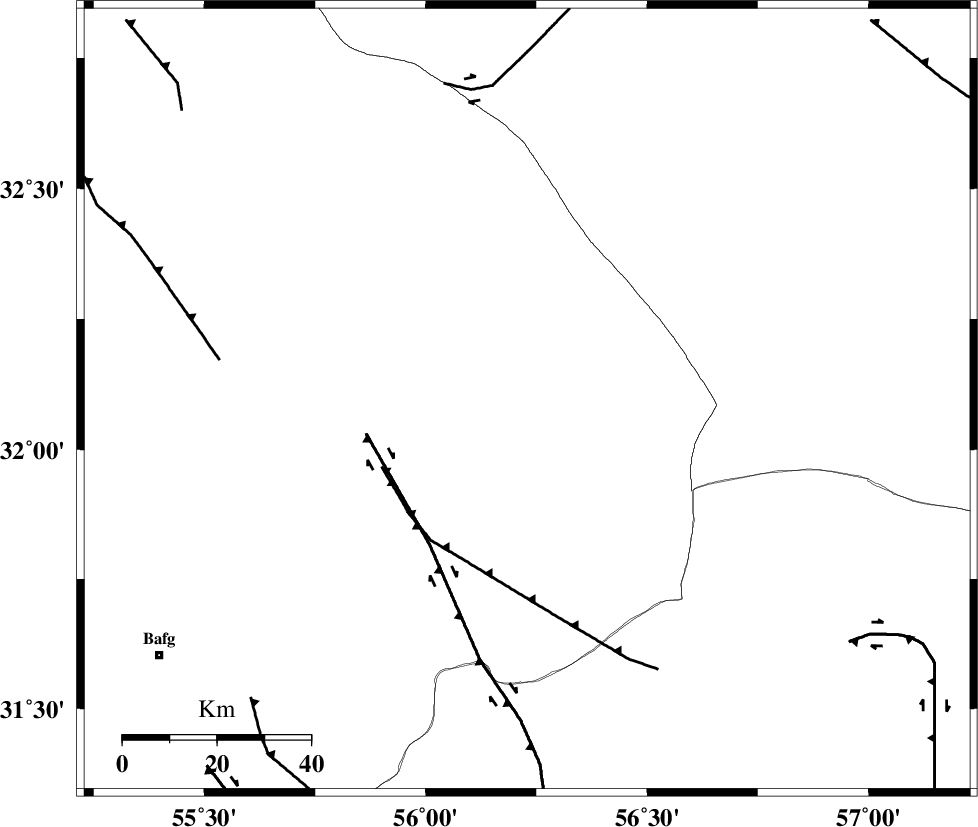

Faults within 150 km: |
|
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 19 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 35 km | |
| SARBALA_F (Length: 92 km) , Distance to epicenter: 37 km | |
| Number of Phases | 14 |
| RMS | 0.5 |
| Number of Stations | 12 |
| Error in Latitude | >3.9 km |
| Error in Longitude | 3.1 km |
| Error in Depth | 6.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 109111 | IIEES | YZKH | N | 532.1 | 0.33 | 2016-09-10 18:04:30 | 2016-09-11 03:38:00 | n |
| 109112 | IIEES | YZKH | E | 1233.3 | 0.51 | 2016-09-10 18:04:31 | 2016-09-11 03:38:00 | n |
| 109113 | IIEES | TABS | N | 229.3 | 0.58 | 2016-09-10 18:04:51 | 2016-09-11 03:38:00 | n |
| 109114 | IIEES | KRBR | N | 698.6 | 0.83 | 2016-09-10 18:04:53 | 2016-09-11 03:38:00 | n |
| 109115 | IIEES | KRBR | E | 510 | 0.57 | 2016-09-10 18:04:54 | 2016-09-11 03:38:00 | n |
| 109116 | IIEES | NASN | N | 101.4 | 0.63 | 2016-09-10 18:05:19 | 2016-09-11 03:38:00 | n |
| 109117 | IIEES | NASN | E | 58.2 | 0.36 | 2016-09-10 18:05:20 | 2016-09-11 03:38:00 | n |
| 109118 | IIEES | SHRO | E | 70.7 | 0.38 | 2016-09-10 18:05:48 | 2016-09-11 03:38:00 | n |
| 109119 | IIEES | SHRO | N | 105 | 0.88 | 2016-09-10 18:06:04 | 2016-09-11 03:38:00 | n |
| 109120 | IIEES | GHVR | E | 29.8 | 0.68 | 2016-09-10 18:06:33 | 2016-09-11 03:38:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | YZKH | Z | Pg | E | 2016-09-10 18:04:08 | 0.05 | y | 158 | 282 | |||
| IIEES | YZKH | E | Sg | E | 2016-09-10 18:04:27 | -0.31 | y | 158 | 282 | |||
| IIEES | TABS | Z | Pg | E | 2016-09-10 18:04:13 | 0.03 | y | 191 | 26 | |||
| IIEES | TABS | N | Sg | E | 2016-09-10 18:04:36 | 0.15 | y | 191 | 26 | |||
| IIEES | KRBR | Z | Pn | E | 2016-09-10 18:04:20 | 0.61 | y | 240 | 168 | |||
| IIEES | BSRN | Z | Pn | E | 2016-09-10 18:04:23 | -0.25 | y | 274 | 92 | |||
| IIEES | NASN | Z | Pn | E | 2016-09-10 18:04:31 | 0.54 | y | 331 | 285 | |||
| IIEES | SHRO | Z | Pn | E | 2016-09-10 18:04:43 | 0.12 | y | 435 | 357 | |||
| IIEES | ZHSF | Z | Pn | E | 2016-09-10 18:04:52 | -0.98 | y | 515 | 121 | |||
| IIEES | GHVR | Z | Pn | E | 2016-09-10 18:04:56 | 0.46 | y | 534 | 301 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-09-10 18:05:05 | -0.4 | y | 614 | 289 | |||
| IIEES | MRVT | Z | Pn | E | 2016-09-10 18:05:06 | 0.13 | y | 618 | 359 | |||
| IIEES | BJRD | Z | Pn | E | 2016-09-10 18:05:08 | 0.18 | y | 631 | 10 | |||
| IIEES | CHTH | Z | Pn | E | 2016-09-10 18:05:07 | -0.89 | y | 633 | 313 | |||
