Magnitude |
:3.2 |
| Date & Time (UTC) | 2016-09-12 10:47:04.7 |
| Date & Time (Local) | 1395/6/22 15:17:04.7 |

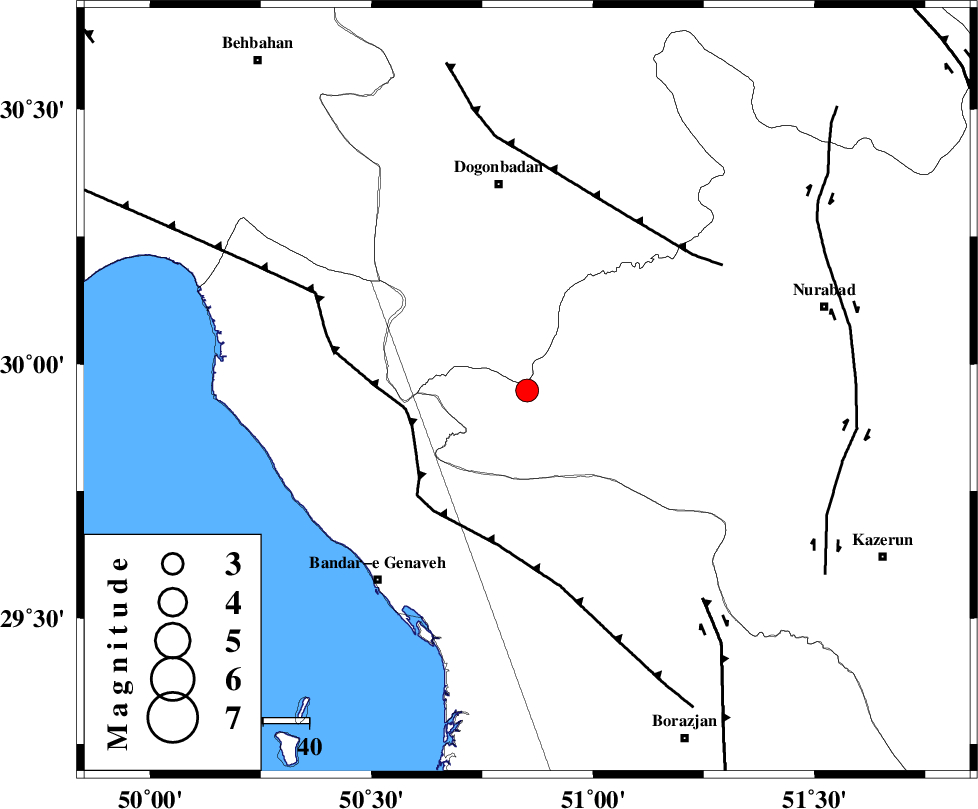

| Location | Lat:29.948 Lon: 50.851 |
| Region | Fars Province, 45 km South of Dogonbadan |
Nearest Cities |
|
| 36 km South West of Babamonir, Fars Province | |
| 41 km North East of Mohammad salehi, Bushehr Province | |
| 45 km North of Chehar rustaee, Bushehr Province | |
| 45 km South of Dogonbadan, Kohkiluieh va boyerahmad Province | |
| 52 km South East of Siyahmakan-e bozorg, Bushehr Province | |
| Depth | 16 km |
| Agency | |
Faults within 150 km: |
|
| ZFF3 (Length: 125 km) , Distance to epicenter: 26 km | |
| MISHAN_F (Length: 76 km) , Distance to epicenter: 44 km | |
| RAG_E_SEFID_F (Length: 84 km) , Distance to epicenter: 51 km | |
| Number of Phases | 15 |
| RMS | 0.1 |
| Number of Stations | 11 |
| Error in Latitude | >3.5 km |
| Error in Longitude | 3.7 km |
| Error in Depth | 9.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 109134 | IIEES | AHRM | N | 381.9 | 0.4 | 2016-09-12 10:47:43 | 2016-09-13 03:39:00 | n |
| 109135 | IIEES | KHMZ | E | 19.3 | 0.58 | 2016-09-12 10:48:55 | 2016-09-13 03:39:00 | n |
| 109136 | IIEES | YZKH | N | 21.7 | 0.53 | 2016-09-12 10:48:57 | 2016-09-13 03:39:00 | n |
| 109137 | IIEES | YZKH | E | 12.6 | 0.48 | 2016-09-12 10:48:58 | 2016-09-13 03:39:00 | n |
| 109138 | IIEES | ASAO | E | 18.2 | 0.58 | 2016-09-12 10:49:13 | 2016-09-13 03:39:00 | n |
| 109139 | IIEES | ASAO | N | 28.7 | 0.81 | 2016-09-12 10:49:14 | 2016-09-13 03:39:00 | n |
| 109140 | IIEES | KRBR | E | 9.7 | 0.26 | 2016-09-12 10:49:26 | 2016-09-13 03:39:00 | n |
| 109141 | IIEES | KRBR | N | 9.5 | 0.52 | 2016-09-12 10:49:41 | 2016-09-13 03:39:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pg | E | 2016-09-12 10:47:26 | 0.04 | y | 128 | 160 | |||
| IIEES | AHRM | N | Sg | E | 2016-09-12 10:47:41 | -0.04 | y | 128 | 160 | |||
| IIEES | NASN | Z | Pn | E | 2016-09-12 10:47:58 | 0.01 | y | 367 | 30 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-09-12 10:48:05 | 0.04 | y | 429 | 349 | |||
| IIEES | YZKH | Z | Pn | E | 2016-09-12 10:48:08 | 0 | y | 448 | 52 | |||
| IIEES | ASAO | Z | Pn | E | 2016-09-12 10:48:16 | 0.01 | y | 516 | 352 | |||
| IIEES | KRBR | Z | Pn | E | 2016-09-12 10:48:23 | 0.07 | y | 570 | 88 | |||
| IIEES | DAMV | Z | Pn | E | 2016-09-12 10:48:31 | -0.18 | y | 639 | 9 | |||
| IIEES | SNGE | Z | Pn | E | 2016-09-12 10:48:33 | -1.16 | n | 4 | 659 | 331 | ||
| IIEES | CHTH | Z | Pn | E | 2016-09-12 10:48:34 | 0.03 | y | 662 | 2 | |||
| IIEES | BSRN | Z | Pn | E | 2016-09-12 10:48:54 | -0.07 | y | 821 | 72 | |||
| IIEES | SHRO | Z | Pn | E | 2016-09-12 10:48:55 | -0.01 | y | 827 | 34 | |||
| IIEES | ZHSF | Z | Pn | E | 2016-09-12 10:48:58 | -12.6 | n | 4 | 960 | 90 | ||
| IIEES | SHRT | Z | Pn | E | 2016-09-12 10:48:52 | -22.1 | n | 4 | 983 | 63 | ||
| IIEES | MRVT | Z | Pn | E | 2016-09-12 10:49:14 | 0.12 | y | 983 | 28 | |||
