Magnitude |
:2.5 |
| Date & Time (UTC) | 2016-09-11 12:12:20.7 |
| Date & Time (Local) | 1395/6/21 16:42:20.7 |

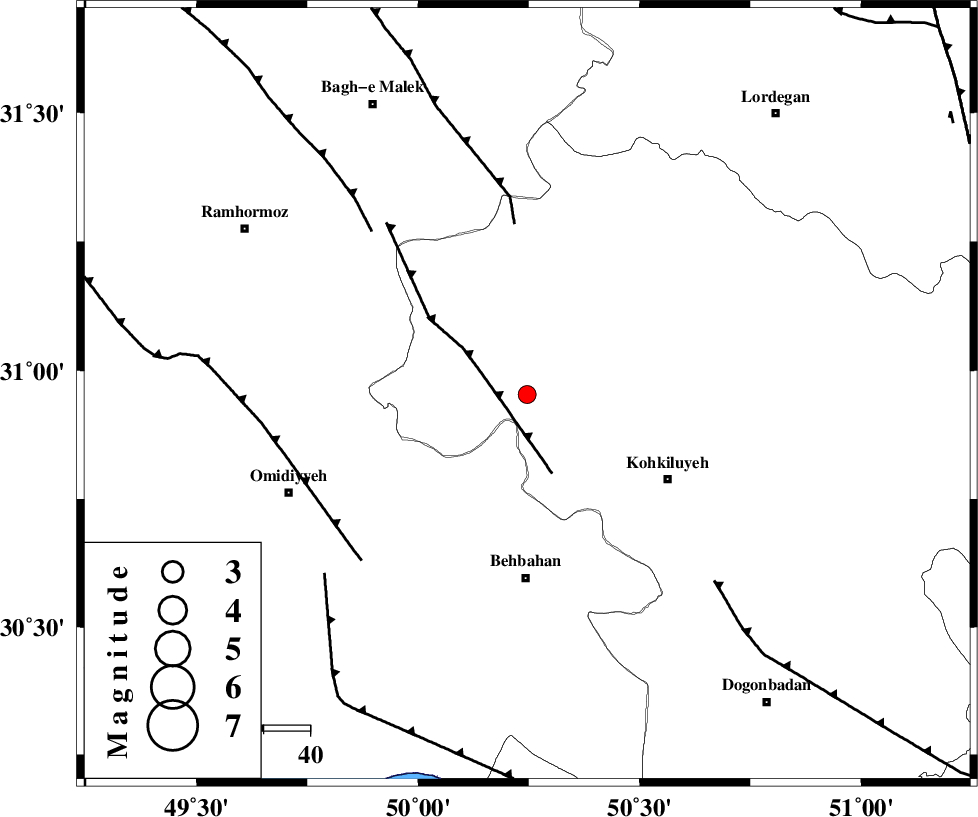

| Location | Lat:30.953 Lon: 50.246 |
| Region | Kohkiluieh va boyerahmad Province, 40 km North of Behbahan |
Nearest Cities |
|
| 17 km West of Lendeh, Kohkiluieh va boyerahmad Province | |
| 28 km North of Dodange-ye bozorg, Khoozestan Province | |
| 32 km South West of Qale-ye raiesi, Kohkiluieh va boyerahmad Province | |
| 35 km North West of Dehdasht, Kohkiluieh va boyerahmad Province | |
| 36 km North East of Jolaki, Khoozestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MFF4 (Length: 62 km) , Distance to epicenter: 11 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 37 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 49 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 7 |
| Error in Latitude | >2.2 km |
| Error in Longitude | 4.7 km |
| Error in Depth | 999.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 109159 | IIEES | KHMZ | E | 9.7 | 0.47 | 2016-09-11 12:13:48 | 2016-09-13 05:51:00 | n |
| 109160 | IIEES | KHMZ | N | 13 | 0.57 | 2016-09-11 12:14:05 | 2016-09-13 05:51:00 | n |
| 109161 | IIEES | ASAO | N | 12.3 | 0.83 | 2016-09-11 12:14:31 | 2016-09-13 05:51:00 | n |
| 109162 | IIEES | YZKH | E | 5.7 | 0.38 | 2016-09-11 12:14:14 | 2016-09-13 05:51:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pn | E | 2016-09-11 12:12:59 | 0.01 | y | 253 | 156 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-09-11 12:13:06 | -0.18 | y | 310 | 355 | |||
| IIEES | NASN | Z | Pn | E | 2016-09-11 12:13:08 | 0.15 | y | 317 | 49 | |||
| IIEES | ASAO | Z | Pn | E | 2016-09-11 12:13:18 | 0.21 | y | 399 | 357 | |||
| IIEES | YZKH | Z | Pn | E | 2016-09-11 12:13:23 | -0.08 | y | 442 | 68 | |||
| IIEES | SHRO | Z | Pn | E | 2016-09-11 12:14:04 | -0.11 | y | 775 | 42 | |||
| IIEES | BJRD | Z | P | E | 2016-09-11 12:14:31 | -0.22 | y | 997 | 39 | |||
