Magnitude |
:2.8 |
| Date & Time (UTC) | 2016-09-16 05:15:49.0 |
| Date & Time (Local) | 1395/6/26 09:45:49.0 |

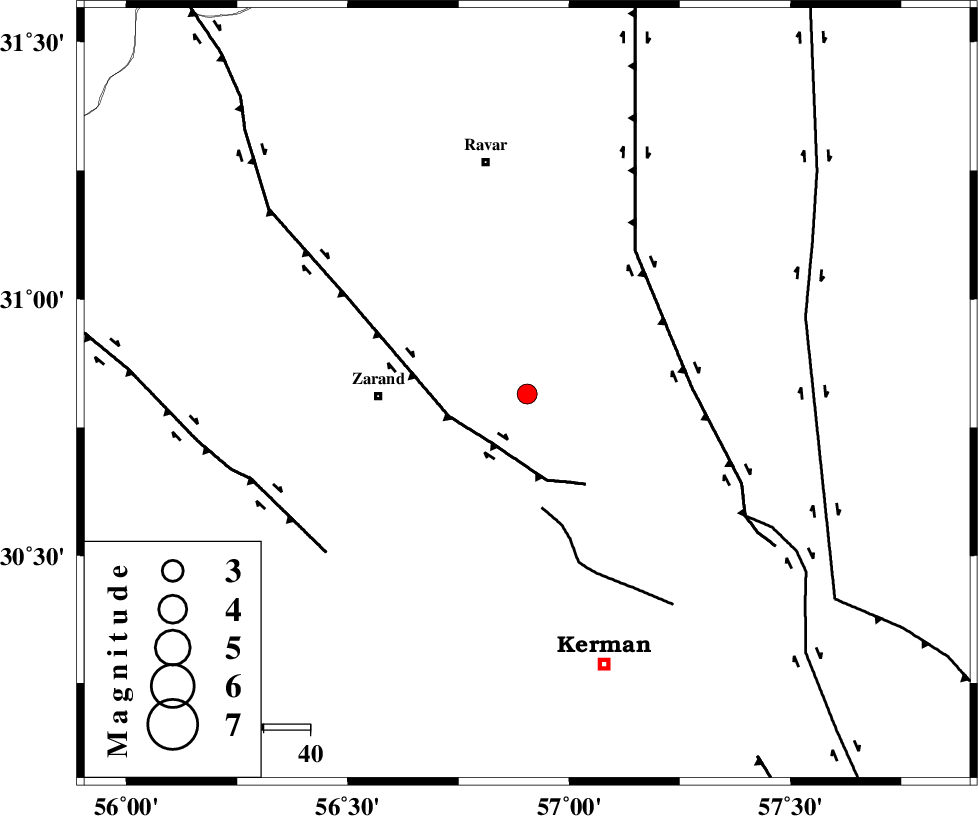

| Location | Lat:30.815 Lon: 56.905 |
| Region | Kerman Province, 32 km -East of Zarand |
Nearest Cities |
|
| 9 km North of Hejdak, Kerman Province | |
| 12 km East of Hatkan, Kerman Province | |
| 15 km North East of Khankuk, Kerman Province | |
| 23 km North of Chatrud, Kerman Province | |
| 27 km North East of Bahaabad, Kerman Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 13 km | |
| CHATRUD_F (Length: 37 km) , Distance to epicenter: 25 km | |
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 36 km | |
| Number of Phases | 8 |
| RMS | 0.2 |
| Number of Stations | 7 |
| Error in Latitude | >3 km |
| Error in Longitude | 3.8 km |
| Error in Depth | 7.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 109201 | IIEES | KRBR | E | 253.3 | 0.16 | 2016-09-16 05:16:17 | 2016-09-17 05:15:00 | n |
| 109202 | IIEES | KRBR | N | 245.1 | 0.25 | 2016-09-16 05:16:19 | 2016-09-17 05:15:00 | n |
| 109203 | IIEES | YZKH | N | 30.6 | 0.38 | 2016-09-16 05:17:09 | 2016-09-17 05:15:00 | n |
| 109204 | IIEES | YZKH | E | 44.6 | 0.38 | 2016-09-16 05:17:18 | 2016-09-17 05:15:00 | n |
| 109205 | IIEES | TABS | N | 29.4 | 0.71 | 2016-09-16 05:17:32 | 2016-09-17 05:15:00 | n |
| 109206 | IIEES | NASN | E | 5.8 | 0.51 | 2016-09-16 05:18:03 | 2016-09-17 05:15:00 | n |
| 109207 | IIEES | SHRO | N | 5.8 | 0.84 | 2016-09-16 05:18:51 | 2016-09-17 05:15:00 | n |
| 109208 | IIEES | SHRO | E | 4.1 | 0.53 | 2016-09-16 05:18:52 | 2016-09-17 05:15:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2016-09-16 05:16:04 | -0.11 | y | 93.4 | 189 | |||
| IIEES | BSRN | Z | Pn | E | 2016-09-16 05:16:27 | -0.3 | y | 247 | 58 | |||
| IIEES | YZKH | Z | Pn | E | 2016-09-16 05:16:31 | 0.06 | y | 280 | 309 | |||
| IIEES | YZKH | N | Sg | E | 2016-09-16 05:17:07 | -0.22 | y | 280 | 309 | |||
| IIEES | TABS | Z | Pn | E | 2016-09-16 05:16:36 | 0.25 | y | 315 | 4 | |||
| IIEES | ZHSF | Z | Pn | E | 2016-09-16 05:16:46 | 0.17 | y | 396 | 109 | |||
| IIEES | NASN | Z | Pn | E | 2016-09-16 05:16:52 | 0.35 | y | 446 | 301 | |||
| IIEES | SHRO | Z | Pn | E | 2016-09-16 05:17:08 | -0.09 | y | 582 | 352 | |||
