Magnitude |
:3.7 |
| Date & Time (UTC) | 2016-09-17 15:31:15.6 |
| Date & Time (Local) | 1395/6/27 20:01:15.6 |

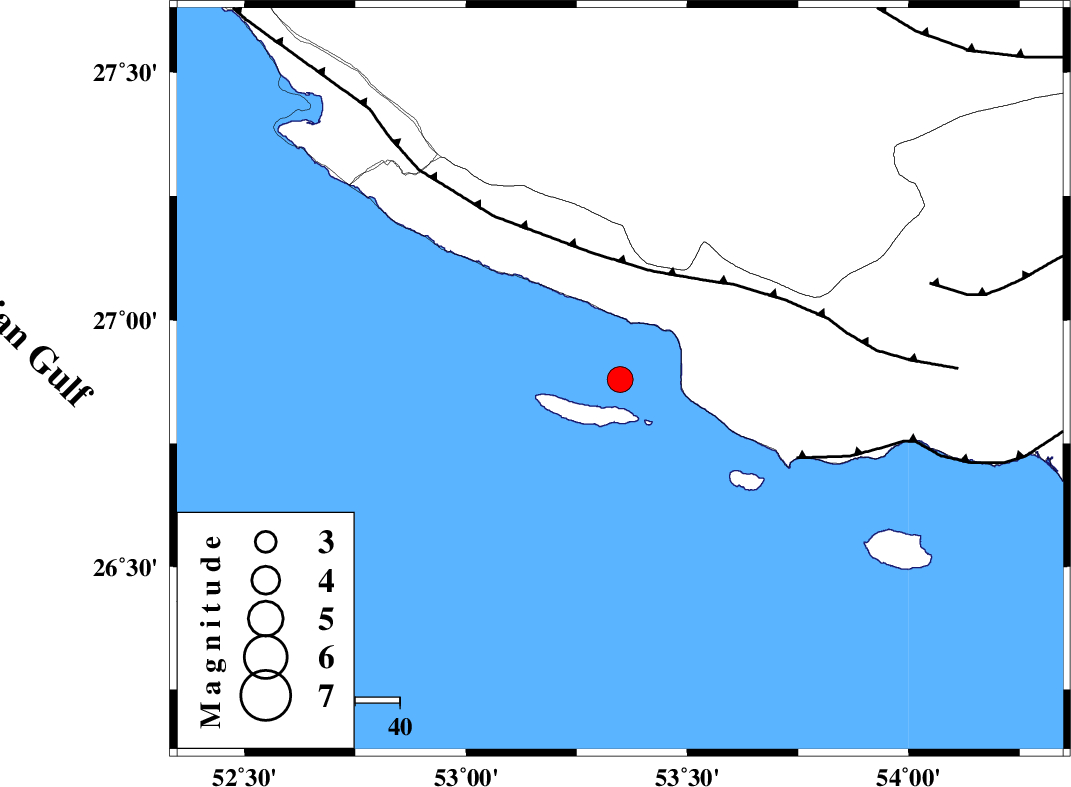

| Location | Lat:26.88 Lon: 53.348 |
| Region | Persian Gulf, 53 km South-East of Lamerd |
Nearest Cities |
|
| 46 km South West of Ashkenan, Fars Province | |
| 50 km South West of Ahl, Fars Province | |
| 53 km South East of Lamerd, Fars Province | |
| 63 km South West of Beyram, Fars Province | |
| 73 km South East of Khoozi, Fars Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MFF3 (Length: 292 km) , Distance to epicenter: 25 km | |
| ZFF1 (Length: 165 km) , Distance to epicenter: 43 km | |
| MFF1 (Length: 180 km) , Distance to epicenter: 73 km | |
| Number of Phases | 14 |
| RMS | 0.4 |
| Number of Stations | 14 |
| Error in Latitude | >9.9 km |
| Error in Longitude | 2.9 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 109234 | IIEES | AHRM | N | 336.4 | 0.85 | 2016-09-17 15:33:08 | 2016-09-18 05:21:00 | n |
| 109235 | IIEES | KRBR | N | 55.5 | 0.52 | 2016-09-17 15:33:19 | 2016-09-18 05:21:00 | n |
| 109236 | IIEES | KRBR | E | 56 | 0.4 | 2016-09-17 15:33:19 | 2016-09-18 05:21:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pn | E | 2016-09-17 15:32:04 | 3.75 | n | 4 | 299 | 318 | ||
| IIEES | KRBR | Z | Pn | E | 2016-09-17 15:32:23 | 0.86 | y | 479 | 43 | |||
| IIEES | YZKH | Z | Pn | E | 2016-09-17 15:32:40 | -0.04 | y | 623 | 11 | |||
| IIEES | NASN | Z | Pn | E | 2016-09-17 15:32:45 | -0.13 | y | 658 | 356 | |||
| IIEES | CHBR | Z | Pn | E | 2016-09-17 15:32:53 | -0.02 | y | 727 | 100 | |||
| IIEES | ZHSF | Z | Pn | E | 2016-09-17 15:33:00 | -0.45 | y | 789 | 66 | |||
| IIEES | BSRN | Z | Pn | E | 2016-09-17 15:33:01 | -0.45 | y | 795 | 43 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-09-17 15:33:06 | 0.29 | y | 827 | 338 | |||
| IIEES | TABS | Z | Pn | E | 2016-09-17 15:33:06 | -0.43 | y | 833 | 25 | |||
| IIEES | ASAO | Z | Pn | E | 2016-09-17 15:33:15 | -0.28 | y | 908 | 340 | |||
| IIEES | SHRT | Z | Pn | E | 2016-09-17 15:33:27 | -0.19 | y | 1004 | 40 | |||
| IIEES | CHTH | Z | Pn | E | 2016-09-17 15:33:30 | 0.1 | y | 1023 | 349 | |||
| IIEES | SHRO | Z | Pn | E | 2016-09-17 15:33:32 | -0.44 | y | 1043 | 13 | |||
| IIEES | SNGE | Z | Pn | E | 2016-09-17 15:33:37 | 0.24 | y | 1076 | 329 | |||
