Magnitude |
:2.9 |
| Date & Time (UTC) | 2016-09-17 11:40:06.0 |
| Date & Time (Local) | 1395/6/27 16:10:06.0 |

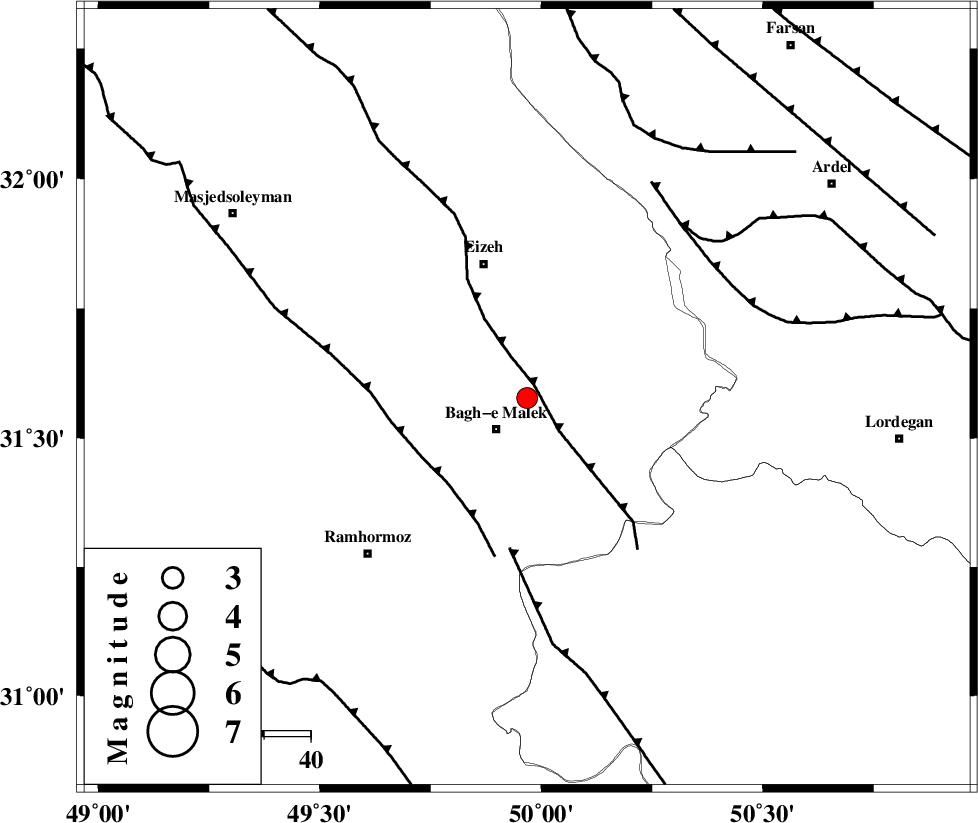

| Location | Lat:31.577 Lon: 49.968 |
| Region | Khoozestan Province, 9 km of Bagh Malek |
Nearest Cities |
|
| 4 km North of Abolabbas, Khoozestan Province | |
| 9 km North of Bagh Malek, Khoozestan Province | |
| 10 km of Ghaleh tal, Khoozestan Province | |
| 26 km North West of Seidun, Khoozestan Province | |
| 28 km North East of Midavood-e sofla, Khoozestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MFF2 (Length: 205 km) , Distance to epicenter: 3 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 25 km | |
| MFF4 (Length: 62 km) , Distance to epicenter: 32 km | |
| Number of Phases | 10 |
| RMS | 0.4 |
| Number of Stations | 8 |
| Error in Latitude | >5.6 km |
| Error in Longitude | 8 km |
| Error in Depth | 9.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 109245 | IIEES | KHMZ | N | 53.7 | 0.41 | 2016-09-17 11:41:16 | 2016-09-18 06:03:00 | n |
| 109246 | IIEES | KHMZ | E | 55.2 | 0.65 | 2016-09-17 11:41:26 | 2016-09-18 06:03:00 | n |
| 109247 | IIEES | ASAO | N | 31.2 | 0.49 | 2016-09-17 11:41:52 | 2016-09-18 06:03:00 | n |
| 109248 | IIEES | ASAO | E | 27.1 | 0.49 | 2016-09-17 11:41:53 | 2016-09-18 06:03:00 | n |
| 109249 | IIEES | GHVR | N | 43.6 | 0.78 | 2016-09-17 11:41:52 | 2016-09-18 06:03:00 | n |
| 109250 | IIEES | GHVR | E | 33.9 | 0.55 | 2016-09-17 11:41:53 | 2016-09-18 06:03:00 | n |
| 109251 | IIEES | SNGE | E | 11.6 | 0.82 | 2016-09-17 11:42:03 | 2016-09-18 06:03:00 | n |
| 109252 | IIEES | SNGE | N | 11.8 | 0.51 | 2016-09-17 11:42:17 | 2016-09-18 06:03:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pn | E | 2016-09-17 11:40:43 | -0.59 | y | 240 | 360 | |||
| IIEES | NASN | Z | Pn | E | 2016-09-17 11:40:51 | 0.44 | y | 300 | 62 | |||
| IIEES | ASAO | Z | Pn | E | 2016-09-17 11:40:54 | 0.06 | y | 330 | 1 | |||
| IIEES | ASAO | N | S | E | 2016-09-17 11:41:31 | 0.57 | y | 330 | 1 | |||
| IIEES | GHVR | Z | Pn | E | 2016-09-17 11:40:56 | 0.39 | y | 343 | 20 | |||
| IIEES | GHVR | N | Sg | E | 2016-09-17 11:41:41 | -0.33 | y | 343 | 20 | |||
| IIEES | YZKH | Z | Pn | E | 2016-09-17 11:41:09 | 0.07 | y | 446 | 77 | |||
| IIEES | SNGE | Z | Pn | E | 2016-09-17 11:41:10 | -0.08 | y | 460 | 329 | |||
| IIEES | TABS | Z | Pn | E | 2016-09-17 11:41:41 | -0.57 | y | 709 | 69 | |||
| IIEES | SHRO | Z | Pn | E | 2016-09-17 11:41:45 | -0.41 | y | 745 | 47 | |||
