Magnitude |
:3.3 |
| Date & Time (UTC) | 2016-09-21 09:17:34.3 |
| Date & Time (Local) | 1395/6/31 12:47:34.3 |
| Location | Lat:26.924 Lon: 59.797 |
| Region | Sistan va Baloochestan Province, 88 km North-West of Nikshahr |
Nearest Cities |
|
| 10 km North of Maskutan, Sistan va Baloochestan Province | |
| 39 km North West of Espakeh, Sistan va Baloochestan Province | |
| 41 km North East of Fonuj, Sistan va Baloochestan Province | |
| 46 km North West of Pip, Sistan va Baloochestan Province | |
| 59 km South West of Qasemabad, Sistan va Baloochestan Province | |
| Depth | 14 km |
| Agency | |

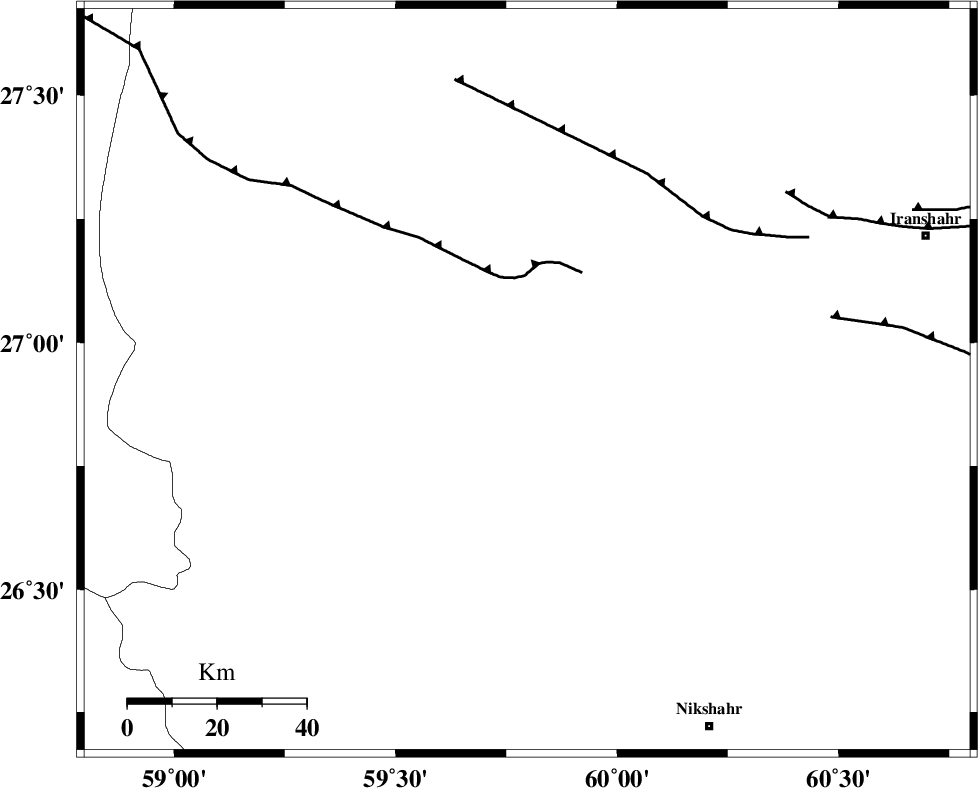

Faults within 150 km: |
|
| S_JAZMURIAN_F (Length: 91 km) , Distance to epicenter: 8 km | |
| LASHAR_F (Length: 68 km) , Distance to epicenter: 45 km | |
| MASKUTAN_F (Length: 40 km) , Distance to epicenter: 56 km | |
| Number of Phases | 6 |
| RMS | 0.3 |
| Number of Stations | 5 |
| Error in Latitude | >5.4 km |
| Error in Longitude | 7.8 km |
| Error in Depth | 9.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 109368 | IIEES | CHBR | N | 397.8 | 0.54 | 2016-09-21 09:18:29 | 2016-09-21 10:46:00 | n |
| 109369 | IIEES | CHBR | E | 385.2 | 0.49 | 2016-09-21 09:18:37 | 2016-09-21 10:46:00 | n |
| 109370 | IIEES | KRBR | N | 19.1 | 0.44 | 2016-09-21 09:20:07 | 2016-09-21 10:46:00 | n |
| 109371 | IIEES | BSRN | E | 18.7 | 0.61 | 2016-09-21 09:20:23 | 2016-09-21 10:46:00 | n |
| 109372 | IIEES | BSRN | N | 10.6 | 0.61 | 2016-09-21 09:20:26 | 2016-09-21 10:46:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | CHBR | Z | Pg | E | 2016-09-21 09:18:01 | 0.01 | y | 162 | 155 | |||
| IIEES | ZHSF | Z | Pn | E | 2016-09-21 09:18:20 | -0.34 | y | 313 | 18 | |||
| IIEES | KRBR | Z | Pn | E | 2016-09-21 09:18:38 | -0.01 | y | 451 | 319 | |||
| IIEES | KRBR | N | Sg | E | 2016-09-21 09:19:40 | -0.05 | y | 451 | 319 | |||
| IIEES | BSRN | Z | Pn | E | 2016-09-21 09:18:52 | 0.17 | y | 563 | 354 | |||
| IIEES | SHRT | Z | Pn | E | 2016-09-21 09:19:15 | 0.62 | y | 747 | 4 | |||
