Magnitude |
:4.3 |
| Date & Time (UTC) | 2016-09-23 10:50:52.1 |
| Date & Time (Local) | 1395/7/2 14:20:52.1 |

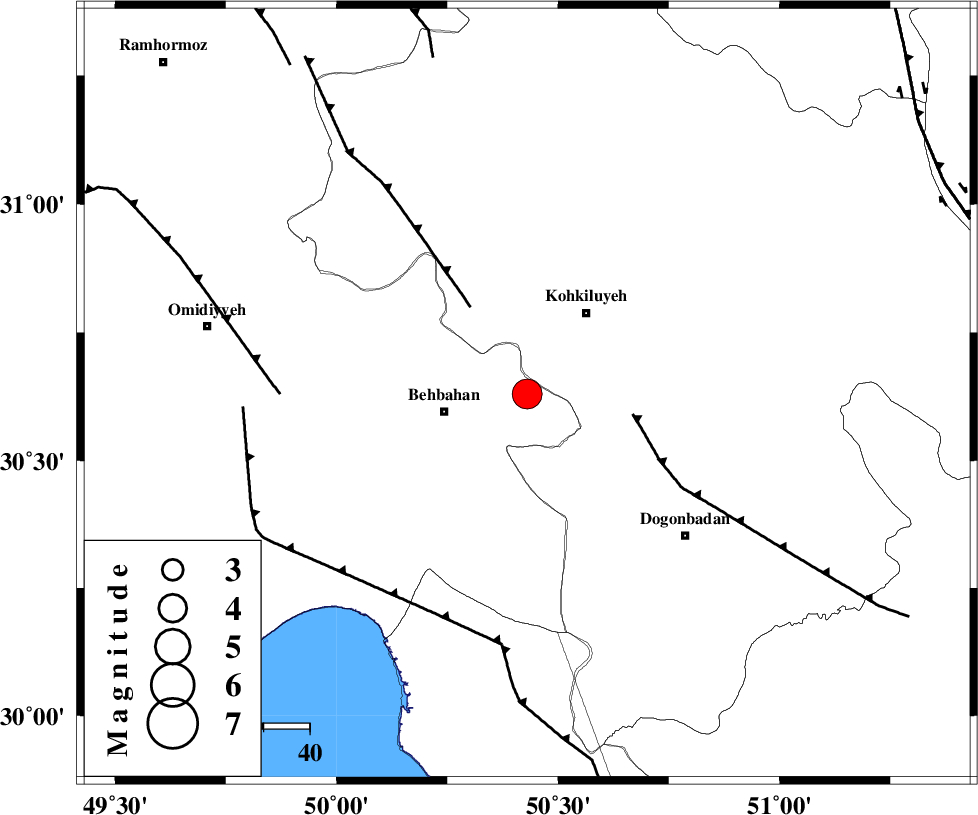

| Location | Lat:30.63 Lon: 50.43 |
| Region | Khoozestan Province, 18 km -East of Behbahan |
Nearest Cities |
|
| 13 km East of Mansuriyeh, Khoozestan Province | |
| 18 km North East of Behbahan, Khoozestan Province | |
| 22 km South West of Dehdasht, Kohkiluieh va boyerahmad Province | |
| 26 km East of Dodange-ye bozorg, Khoozestan Province | |
| 39 km South of Lendeh, Kohkiluieh va boyerahmad Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MFF4 (Length: 62 km) , Distance to epicenter: 22 km | |
| MISHAN_F (Length: 76 km) , Distance to epicenter: 23 km | |
| RAG_E_SEFID_F (Length: 84 km) , Distance to epicenter: 52 km | |
| Number of Phases | 21 |
| RMS | 0.3 |
| Number of Stations | 18 |
| Error in Latitude | >2.7 km |
| Error in Longitude | 4 km |
| Error in Depth | 9.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 109389 | IIEES | KHMZ | E | 518.1 | 0.44 | 2016-09-23 10:52:34 | 2016-09-24 05:11:00 | n |
| 109390 | IIEES | KHMZ | N | 481.5 | 0.73 | 2016-09-23 10:52:37 | 2016-09-24 05:11:00 | n |
| 109391 | IIEES | ASAO | E | 392 | 0.48 | 2016-09-23 10:52:44 | 2016-09-24 05:11:00 | n |
| 109392 | IIEES | ASAO | N | 401.1 | 0.64 | 2016-09-23 10:52:46 | 2016-09-24 05:11:00 | n |
| 109393 | IIEES | YZKH | N | 126.6 | 0.4 | 2016-09-23 10:52:47 | 2016-09-24 05:11:00 | n |
| 109394 | IIEES | SNGE | N | 268.9 | 0.53 | 2016-09-23 10:53:14 | 2016-09-24 05:11:00 | n |
| 109395 | IIEES | DAMV | E | 78.8 | 0.25 | 2016-09-23 10:53:23 | 2016-09-24 05:11:00 | n |
| 109396 | IIEES | DAMV | N | 99.6 | 0.63 | 2016-09-23 10:53:56 | 2016-09-24 05:11:00 | n |
| 109397 | IIEES | SNGE | E | 277.1 | 0.71 | 2016-09-23 10:53:12 | 2016-09-24 05:11:00 | n |
| 109398 | IIEES | CHTH | N | 133.1 | 0.91 | 2016-09-23 10:53:54 | 2016-09-24 05:11:00 | n |
| 109399 | IIEES | CHTH | E | 44.8 | 0.76 | 2016-09-23 10:53:54 | 2016-09-24 05:11:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pn | E | 2016-09-23 10:51:26 | 0.18 | y | 213 | 157 | |||
| IIEES | AHRM | N | Sg | E | 2016-09-23 10:51:52 | -0.04 | y | 213 | 157 | |||
| IIEES | NASN | Z | Pn | E | 2016-09-23 10:51:41 | 0.13 | y | 330 | 43 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-09-23 10:51:43 | 0.4 | y | 348 | 353 | |||
| IIEES | ASAO | Z | Pn | E | 2016-09-23 10:51:54 | 0.34 | y | 436 | 355 | |||
| IIEES | YZKH | Z | Pn | E | 2016-09-23 10:51:54 | 0.13 | y | 441 | 63 | |||
| IIEES | DAMV | Z | Pn | E | 2016-09-23 10:52:11 | -0.15 | y | 573 | 14 | |||
| IIEES | SNGE | Z | Pn | E | 2016-09-23 10:52:10 | -0.65 | y | 573 | 331 | |||
| IIEES | CHTH | Z | Pn | E | 2016-09-23 10:52:13 | -0.03 | y | 589 | 6 | |||
| IIEES | KRBR | Z | Pn | E | 2016-09-23 10:52:16 | -0.04 | y | 613 | 95 | |||
| IIEES | ZNJK | Z | Pn | E | 2016-09-23 10:52:25 | -0.1 | y | 689 | 347 | |||
| IIEES | GIDE | Z | Pn | E | 2016-09-23 10:52:26 | -0.05 | y | 700 | 356 | |||
| IIEES | TABS | Z | Pn | E | 2016-09-23 10:52:28 | -0.25 | y | 714 | 60 | |||
| IIEES | SHRO | Z | Pn | E | 2016-09-23 10:52:37 | -0.51 | y | 791 | 40 | |||
| IIEES | BSRN | Z | P | E | 2016-09-23 10:52:44 | -0.14 | y | 841 | 78 | |||
| IIEES | GRMI | Z | Pn | E | 2016-09-23 10:52:56 | -0.02 | y | 937 | 346 | |||
| IIEES | MRVT | Z | Pn | E | 2016-09-23 10:52:56 | -0.1 | y | 938 | 32 | |||
| IIEES | SHRT | Z | Pn | E | 2016-09-23 10:52:53 | -9.25 | n | 4 | 988 | 68 | ||
| IIEES | ZHSF | Z | Pn | E | 2016-09-23 10:53:04 | -0.14 | y | 1003 | 94 | |||
| IIEES | BJRD | Z | Pn | E | 2016-09-23 10:53:05 | 0.02 | y | 1014 | 37 | |||
| IIEES | CHBR | Z | Pn | E | 2016-09-23 10:53:16 | -4.09 | n | 4 | 1133 | 117 | ||
