Magnitude |
:2.6 |
| Date & Time (UTC) | 2016-09-23 10:57:05.0 |
| Date & Time (Local) | 1395/7/2 14:27:05.0 |

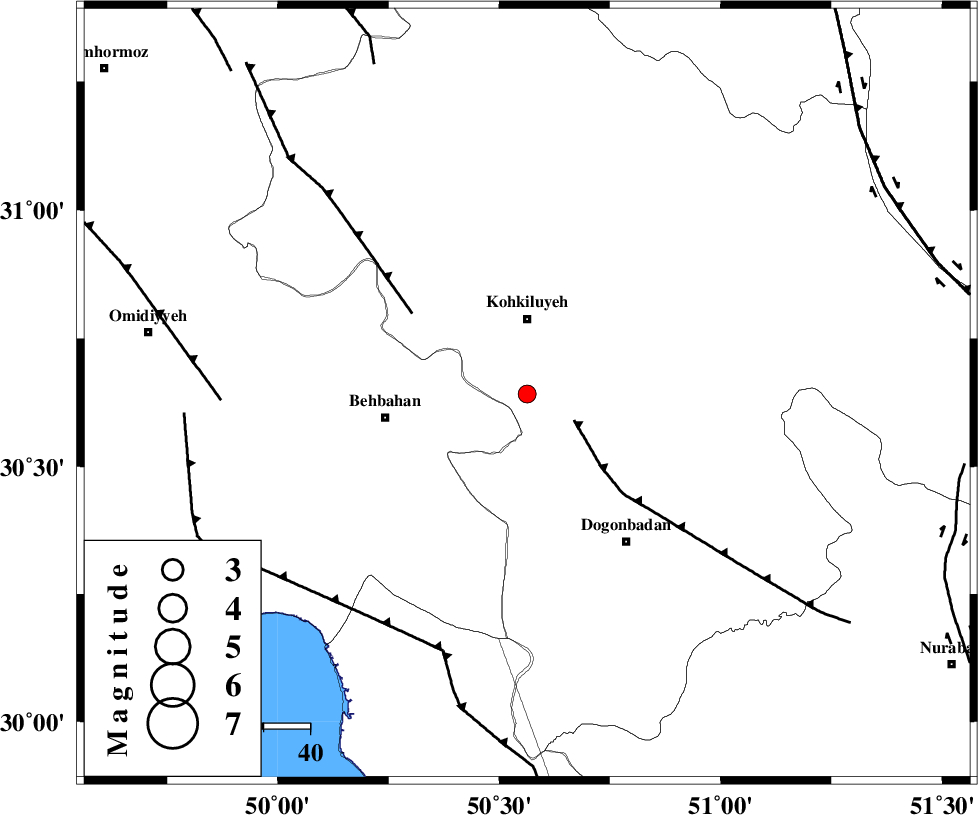

| Location | Lat:30.642 Lon: 50.563 |
| Region | Kohkiluieh va boyerahmad Province, 16 km South of Dehdasht |
Nearest Cities |
|
| 16 km South of Dehdasht, Kohkiluieh va boyerahmad Province | |
| 25 km North East of Mansuriyeh, Khoozestan Province | |
| 31 km North East of Behbahan, Khoozestan Province | |
| 34 km South West of Savari, Kohkiluieh va boyerahmad Province | |
| 37 km East of Dodange-ye bozorg, Khoozestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MISHAN_F (Length: 76 km) , Distance to epicenter: 12 km | |
| MFF4 (Length: 62 km) , Distance to epicenter: 30 km | |
| RAG_E_SEFID_F (Length: 84 km) , Distance to epicenter: 59 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 6 |
| Error in Latitude | >2.4 km |
| Error in Longitude | 5.2 km |
| Error in Depth | 8.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 109400 | IIEES | AHRM | N | 42.2 | 0.24 | 2016-09-23 10:58:09 | 2016-09-24 05:11:00 | n |
| 109401 | IIEES | NASN | E | 10.2 | 0.42 | 2016-09-23 10:58:31 | 2016-09-24 05:11:00 | n |
| 109402 | IIEES | KHMZ | E | 8.7 | 0.42 | 2016-09-23 10:58:49 | 2016-09-24 05:11:00 | n |
| 109403 | IIEES | YZKH | E | 6.3 | 0.46 | 2016-09-23 10:58:55 | 2016-09-24 05:11:00 | n |
| 109404 | IIEES | YZKH | N | 12.7 | 0.21 | 2016-09-23 10:58:56 | 2016-09-24 05:11:00 | n |
| 109405 | IIEES | ASAO | E | 6.5 | 0.36 | 2016-09-23 10:58:55 | 2016-09-24 05:11:00 | n |
| 109406 | IIEES | ASAO | N | 7 | 0.54 | 2016-09-23 10:58:55 | 2016-09-24 05:11:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pn | E | 2016-09-23 10:57:38 | 0 | y | 209 | 160 | |||
| IIEES | AHRM | N | Sg | E | 2016-09-23 10:58:04 | 0 | y | 209 | 160 | |||
| IIEES | NASN | Z | Pn | E | 2016-09-23 10:57:52 | 0.21 | y | 320 | 41 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-09-23 10:57:56 | 0.07 | y | 348 | 351 | |||
| IIEES | YZKH | Z | Pn | E | 2016-09-23 10:58:06 | 0 | y | 429 | 62 | |||
| IIEES | ASAO | Z | Pn | E | 2016-09-23 10:58:06 | -0.08 | y | 436 | 353 | |||
| IIEES | SHRO | Z | Pn | E | 2016-09-23 10:58:49 | -0.52 | y | 782 | 39 | |||
