Magnitude |
:3 |
| Date & Time (UTC) | 2016-09-23 12:02:47.5 |
| Date & Time (Local) | 1395/7/2 15:32:47.5 |

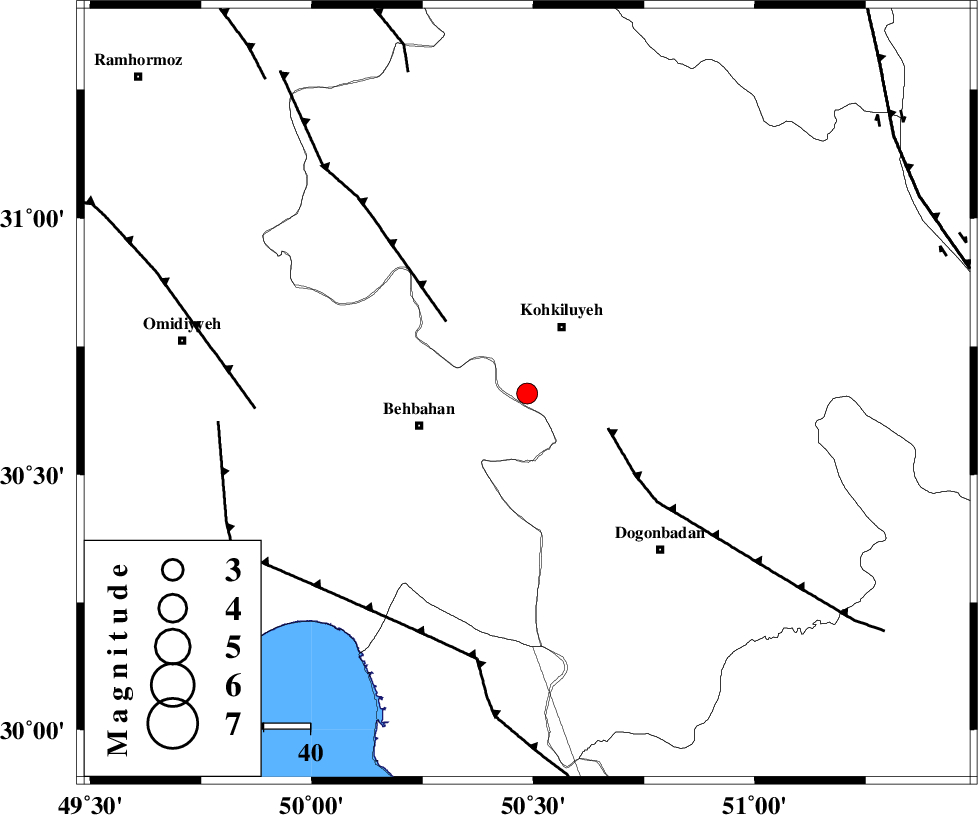

| Location | Lat:30.658 Lon: 50.486 |
| Region | Kohkiluieh va boyerahmad Province, 16 km South of Dehdasht |
Nearest Cities |
|
| 16 km South of Dehdasht, Kohkiluieh va boyerahmad Province | |
| 18 km North East of Mansuriyeh, Khoozestan Province | |
| 24 km North East of Behbahan, Khoozestan Province | |
| 30 km East of Dodange-ye bozorg, Khoozestan Province | |
| 36 km South of Lendeh, Kohkiluieh va boyerahmad Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MISHAN_F (Length: 76 km) , Distance to epicenter: 19 km | |
| MFF4 (Length: 62 km) , Distance to epicenter: 23 km | |
| RAG_E_SEFID_F (Length: 84 km) , Distance to epicenter: 57 km | |
| Number of Phases | 11 |
| RMS | 0.2 |
| Number of Stations | 10 |
| Error in Latitude | >2.6 km |
| Error in Longitude | 4.3 km |
| Error in Depth | 9.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 109407 | IIEES | AHRM | N | 73.2 | 0.41 | 2016-09-23 12:03:53 | 2016-09-24 05:11:00 | n |
| 109408 | IIEES | ASAO | N | 11.5 | 0.31 | 2016-09-23 12:04:40 | 2016-09-24 05:11:00 | n |
| 109409 | IIEES | ASAO | E | 12.4 | 0.62 | 2016-09-23 12:04:46 | 2016-09-24 05:11:00 | n |
| 109410 | IIEES | YZKH | E | 16.1 | 0.37 | 2016-09-23 12:04:38 | 2016-09-24 05:11:00 | n |
| 109411 | IIEES | YZKH | N | 13.6 | 0.45 | 2016-09-23 12:04:39 | 2016-09-24 05:11:00 | n |
| 109412 | IIEES | DAMV | N | 5 | 0.23 | 2016-09-23 12:05:05 | 2016-09-24 05:11:00 | n |
| 109413 | IIEES | DAMV | E | 7.1 | 0.31 | 2016-09-23 12:05:07 | 2016-09-24 05:11:00 | n |
| 109414 | IIEES | SNGE | N | 9.8 | 0.52 | 2016-09-23 12:05:08 | 2016-09-24 05:11:00 | n |
| 109415 | IIEES | SNGE | E | 7.3 | 0.52 | 2016-09-23 12:05:12 | 2016-09-24 05:11:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pn | E | 2016-09-23 12:03:21 | 0.23 | y | 214 | 158 | |||
| IIEES | AHRM | N | Sg | E | 2016-09-23 12:03:47 | -0.1 | y | 214 | 158 | |||
| IIEES | NASN | Z | Pn | E | 2016-09-23 12:03:36 | 0.32 | y | 324 | 42 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-09-23 12:03:38 | 0 | y | 345 | 352 | |||
| IIEES | ASAO | Z | Pn | E | 2016-09-23 12:03:49 | -0.01 | y | 434 | 354 | |||
| IIEES | YZKH | Z | Pn | E | 2016-09-23 12:03:49 | 0.11 | y | 435 | 63 | |||
| IIEES | DAMV | Z | Pn | E | 2016-09-23 12:04:05 | -0.45 | y | 569 | 14 | |||
| IIEES | SNGE | Z | Pn | E | 2016-09-23 12:04:06 | 0 | y | 573 | 330 | |||
| IIEES | TABS | Z | Pn | E | 2016-09-23 12:04:23 | -0.11 | y | 708 | 60 | |||
| IIEES | SHRO | Z | Pn | E | 2016-09-23 12:04:32 | -0.22 | y | 785 | 39 | |||
| IIEES | BSRN | Z | Pn | E | 2016-09-23 12:04:38 | -0.29 | y | 835 | 78 | |||
