Magnitude |
:2.9 |
| Date & Time (UTC) | 2016-09-21 15:18:19.4 |
| Date & Time (Local) | 1395/6/31 18:48:19.4 |

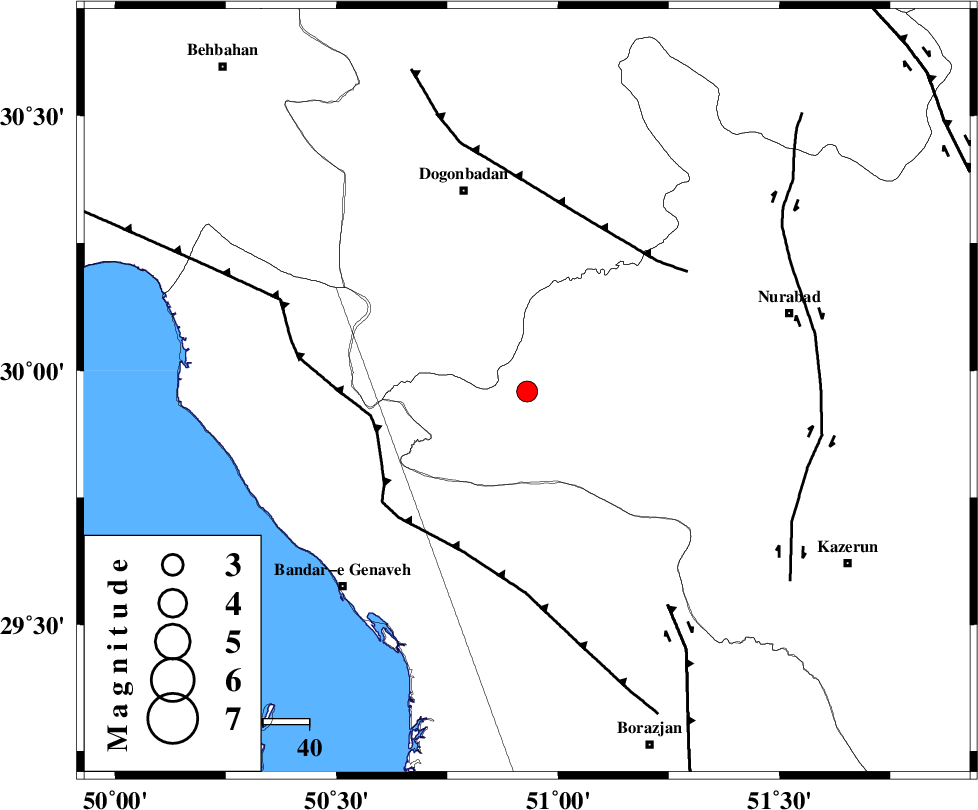

| Location | Lat:29.959 Lon: 50.93 |
| Region | Fars Province, 46 km South-East of Dogonbadan |
Nearest Cities |
|
| 29 km South West of Babamonir, Fars Province | |
| 46 km South East of Dogonbadan, Kohkiluieh va boyerahmad Province | |
| 46 km North East of Mohammad salehi, Bushehr Province | |
| 48 km North East of Chehar rustaee, Bushehr Province | |
| 50 km South West of Basht, Kohkiluieh va boyerahmad Province | |
| Depth | 8 km |
| Agency | |
Faults within 150 km: |
|
| ZFF3 (Length: 125 km) , Distance to epicenter: 34 km | |
| MISHAN_F (Length: 76 km) , Distance to epicenter: 40 km | |
| BORAZJAN_F (Length: 168 km) , Distance to epicenter: 56 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | >3 km |
| Error in Longitude | 4.2 km |
| Error in Depth | 7.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 109416 | IIEES | AHRM | N | 318.4 | 0.42 | 2016-09-21 15:19:01 | 2016-09-24 07:08:00 | n |
| 109417 | IIEES | NASN | E | 12.5 | 0.6 | 2016-09-21 15:19:55 | 2016-09-24 07:08:00 | n |
| 109418 | IIEES | KHMZ | E | 11.7 | 0.47 | 2016-09-21 15:20:10 | 2016-09-24 07:08:00 | n |
| 109419 | IIEES | KHMZ | N | 7.1 | 0.43 | 2016-09-21 15:20:10 | 2016-09-24 07:08:00 | n |
| 109420 | IIEES | YZKH | N | 15.6 | 0.5 | 2016-09-21 15:20:12 | 2016-09-24 07:08:00 | n |
| 109421 | IIEES | YZKH | E | 8.2 | 0.56 | 2016-09-21 15:20:12 | 2016-09-24 07:08:00 | n |
| 109422 | IIEES | ASAO | E | 12 | 0.39 | 2016-09-21 15:20:28 | 2016-09-24 07:08:00 | n |
| 109423 | IIEES | ASAO | N | 11.8 | 0.54 | 2016-09-21 15:20:29 | 2016-09-24 07:08:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pg | E | 2016-09-21 15:18:41 | -0.04 | y | 126 | 164 | |||
| IIEES | AHRM | N | Sg | E | 2016-09-21 15:18:57 | 0.02 | y | 126 | 164 | |||
| IIEES | NASN | Z | Pn | E | 2016-09-21 15:19:12 | -0.13 | y | 362 | 29 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-09-21 15:19:21 | -0.01 | y | 429 | 348 | |||
| IIEES | YZKH | Z | Pn | E | 2016-09-21 15:19:22 | 0.11 | y | 441 | 51 | |||
| IIEES | ASAO | Z | Pn | E | 2016-09-21 15:19:32 | 0.15 | y | 516 | 351 | |||
| IIEES | ASAO | N | S | E | 2016-09-21 15:20:25 | -0.06 | y | 516 | 351 | |||
