Magnitude |
:2.8 |
| Date & Time (UTC) | 2016-09-21 15:25:10.8 |
| Date & Time (Local) | 1395/6/31 18:55:10.8 |

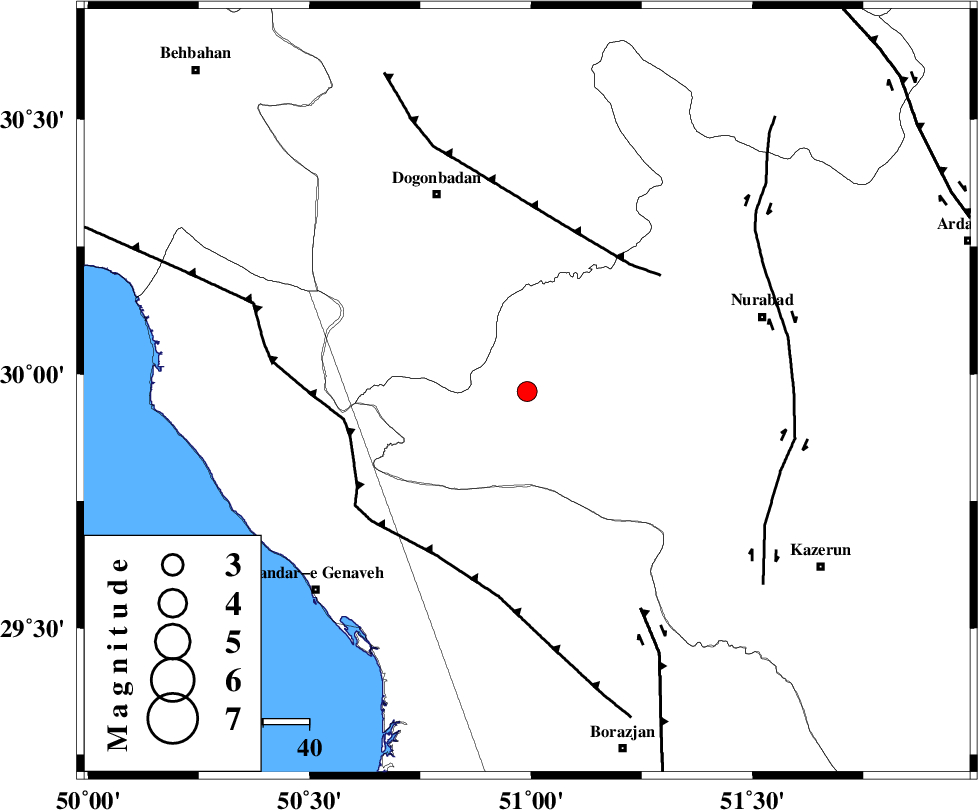

| Location | Lat:29.966 Lon: 50.991 |
| Region | Fars Province, 47 km South-East of Dogonbadan |
Nearest Cities |
|
| 23 km South West of Babamonir, Fars Province | |
| 45 km South West of Ahangari, Fars Province | |
| 47 km South West of Basht, Kohkiluieh va boyerahmad Province | |
| 47 km South East of Dogonbadan, Kohkiluieh va boyerahmad Province | |
| 51 km South West of Kopon olia, Fars Province | |
| Depth | 6 km |
| Agency | |
Faults within 150 km: |
|
| MISHAN_F (Length: 76 km) , Distance to epicenter: 36 km | |
| ZFF3 (Length: 125 km) , Distance to epicenter: 40 km | |
| BORAZJAN_F (Length: 168 km) , Distance to epicenter: 54 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | >3.5 km |
| Error in Longitude | 5 km |
| Error in Depth | 8.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 109424 | IIEES | AHRM | N | 158.2 | 0.56 | 2016-09-21 15:25:53 | 2016-09-24 07:08:00 | n |
| 109425 | IIEES | KHMZ | E | 7.9 | 0.56 | 2016-09-21 15:27:01 | 2016-09-24 07:08:00 | n |
| 109426 | IIEES | YZKH | N | 8.9 | 0.48 | 2016-09-21 15:27:03 | 2016-09-24 07:08:00 | n |
| 109427 | IIEES | YZKH | E | 6 | 0.48 | 2016-09-21 15:27:04 | 2016-09-24 07:08:00 | n |
| 109428 | IIEES | ASAO | E | 7.7 | 0.57 | 2016-09-21 15:27:18 | 2016-09-24 07:08:00 | n |
| 109429 | IIEES | ASAO | N | 9.9 | 0.77 | 2016-09-21 15:27:20 | 2016-09-24 07:08:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pg | E | 2016-09-21 15:25:32 | 0.15 | y | 126 | 166 | |||
| IIEES | AHRM | N | Sg | E | 2016-09-21 15:25:48 | -0.1 | y | 126 | 166 | |||
| IIEES | NASN | Z | Pn | E | 2016-09-21 15:26:04 | -0.15 | y | 359 | 28 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-09-21 15:26:13 | 0.04 | y | 430 | 347 | |||
| IIEES | YZKH | Z | Pn | E | 2016-09-21 15:26:13 | 0.13 | y | 436 | 51 | |||
| IIEES | ASAO | Z | Pn | E | 2016-09-21 15:26:23 | -0.22 | y | 516 | 350 | |||
| IIEES | ASAO | N | S | E | 2016-09-21 15:27:17 | 0.14 | y | 516 | 350 | |||
