Magnitude |
:2.8 |
| Date & Time (UTC) | 2016-09-22 15:39:50.3 |
| Date & Time (Local) | 1395/7/1 19:09:50.3 |
| Location | Lat:28.495 Lon: 57.078 |
| Region | Kerman Province, 67 km South-West of Jiroft |
Nearest Cities |
|
| 25 km South of Dolatabad, Kerman Province | |
| 26 km North East of Sarkhan, Kerman Province | |
| 41 km North West of Hurpasefid, Kerman Province | |
| 51 km North West of Faryab, Kerman Province | |
| 55 km North West of Mehrueye-e paeen, Kerman Province | |
| Depth | 15 km |
| Agency | |

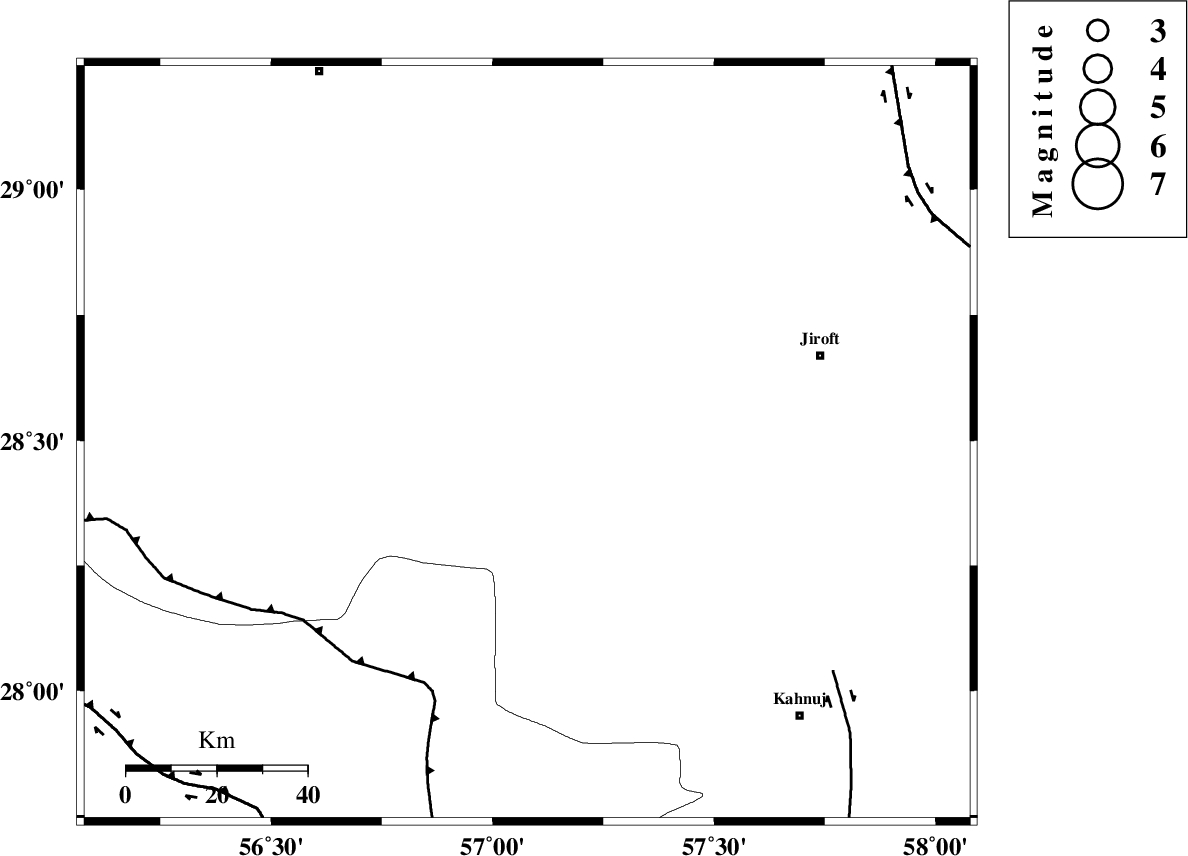

Faults within 150 km: |
|
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 58 km | |
| SABZEVARAN_F (Length: 190 km) , Distance to epicenter: 64 km | |
| JIROFT_F (Length: 144 km) , Distance to epicenter: 84 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 6 |
| Error in Latitude | >7.2 km |
| Error in Longitude | 1.5 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 109447 | IIEES | KRBR | N | 130.7 | 0.33 | 2016-09-22 15:40:47 | 2016-09-24 07:08:00 | n |
| 109448 | IIEES | KRBR | E | 131 | 0.23 | 2016-09-22 15:40:48 | 2016-09-24 07:08:00 | n |
| 109449 | IIEES | BSRN | E | 8.3 | 0.51 | 2016-09-22 15:41:59 | 2016-09-24 07:08:00 | n |
| 109450 | IIEES | BSRN | N | 10.2 | 0.45 | 2016-09-22 15:42:04 | 2016-09-24 07:08:00 | n |
| 109451 | IIEES | TABS | N | 3.5 | 0.56 | 2016-09-22 15:43:03 | 2016-09-24 07:08:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2016-09-22 15:40:17 | -0.92 | n | 4 | 168 | 349 | ||
| IIEES | ZHSF | Z | Pn | E | 2016-09-22 15:40:45 | 0.01 | y | 381 | 70 | |||
| IIEES | BSRN | Z | Pn | E | 2016-09-22 15:40:51 | -0.11 | y | 432 | 27 | |||
| IIEES | YZKH | Z | Pn | E | 2016-09-22 15:40:59 | -0.02 | y | 493 | 332 | |||
| IIEES | TABS | Z | Pn | E | 2016-09-22 15:41:09 | 0.05 | y | 571 | 0 | |||
| IIEES | SHRT | Z | Pn | E | 2016-09-22 15:41:18 | 0.11 | y | 648 | 27 | |||
