Magnitude |
:2.8 |
| Date & Time (UTC) | 2016-09-30 12:42:40.5 |
| Date & Time (Local) | 1395/7/9 16:12:40.5 |

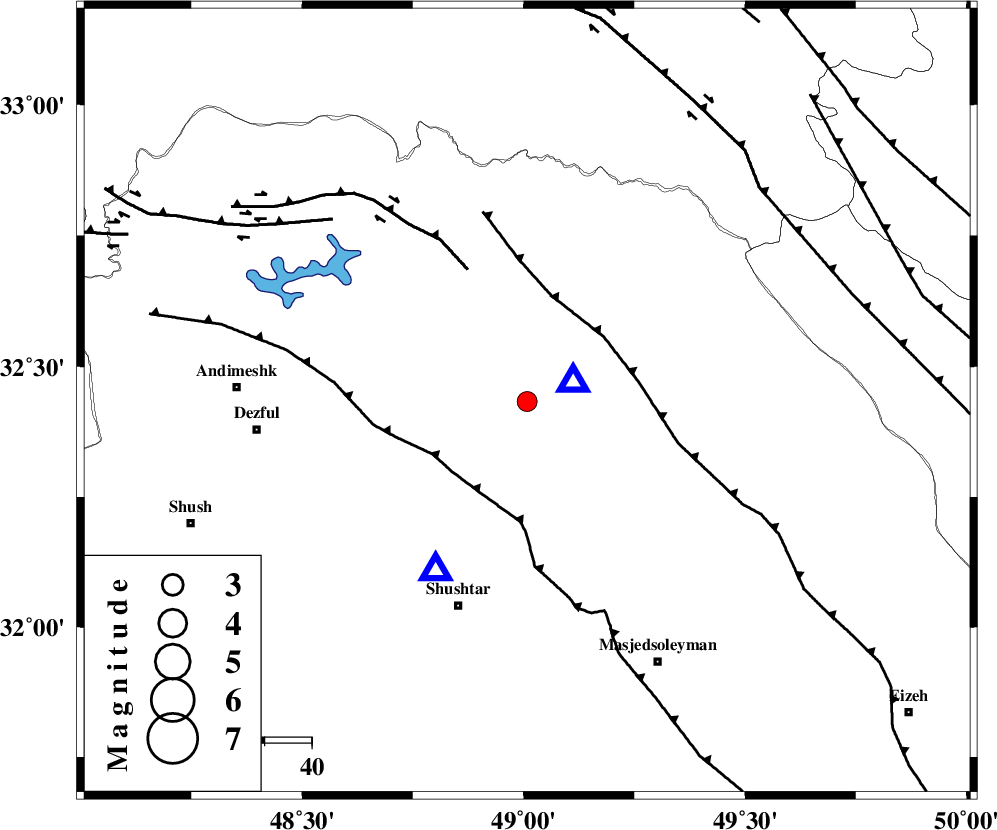

| Location | Lat:32.433 Lon: 49.008 |
| Region | Khoozestan Province, 11 km -West of Lali |
Nearest Cities |
|
| 11 km North West of Lali, Khoozestan Province | |
| 18 km East of Sardasht, Khoozestan Province | |
| 21 km North West of Jaefarabad, Khoozestan Province | |
| 28 km North East of Gatvand, Khoozestan Province | |
| 30 km North East of Samaleh, Khoozestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MFF2 (Length: 205 km) , Distance to epicenter: 21 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 22 km | |
| BALARUD_F_Z2 (Length: 58 km) , Distance to epicenter: 31 km | |
| Number of Phases | 10 |
| RMS | 0.2 |
| Number of Stations | 8 |
| Error in Latitude | >5.1 km |
| Error in Longitude | 5.7 km |
| Error in Depth | 8.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 109535 | IIEES | KHMZ | N | 94.2 | 0.62 | 2016-09-30 12:43:35 | 2016-10-01 06:17:00 | n |
| 109536 | IIEES | KHMZ | E | 168.1 | 0.27 | 2016-09-30 12:43:36 | 2016-10-01 06:17:00 | n |
| 109537 | IIEES | ASAO | E | 46.6 | 0.5 | 2016-09-30 12:44:00 | 2016-10-01 06:17:00 | n |
| 109538 | IIEES | ASAO | N | 45.1 | 0.56 | 2016-09-30 12:44:02 | 2016-10-01 06:17:00 | n |
| 109539 | IIEES | GHVR | N | 23.9 | 0.48 | 2016-09-30 12:44:17 | 2016-10-01 06:17:00 | n |
| 109540 | IIEES | GHVR | E | 36.2 | 0.63 | 2016-09-30 12:44:24 | 2016-10-01 06:17:00 | n |
| 109541 | IIEES | SNGE | N | 24.3 | 0.43 | 2016-09-30 12:44:17 | 2016-10-01 06:17:00 | n |
| 109542 | IIEES | SNGE | E | 42.2 | 0.59 | 2016-09-30 12:44:19 | 2016-10-01 06:17:00 | n |
| 109543 | IIEES | NASN | E | 9.2 | 0.55 | 2016-09-30 12:44:34 | 2016-10-01 06:17:00 | n |
| 109544 | IIEES | CHTH | E | 7.5 | 0.86 | 2016-09-30 12:44:53 | 2016-10-01 06:17:00 | n |
| 109545 | IIEES | DAMV | E | 9.6 | 0.72 | 2016-09-30 12:44:52 | 2016-10-01 06:17:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pg | E | 2016-09-30 12:43:09 | 0.28 | y | 170 | 31 | |||
| IIEES | KHMZ | N | Sg | E | 2016-09-30 12:43:29 | 0.05 | y | 170 | 31 | |||
| IIEES | ASAO | Z | Pn | E | 2016-09-30 12:43:20 | 0.38 | y | 253 | 22 | |||
| IIEES | ASAO | N | Sg | E | 2016-09-30 12:43:51 | -0.33 | y | 253 | 22 | |||
| IIEES | GHVR | Z | Pn | E | 2016-09-30 12:43:26 | 0.07 | y | 308 | 42 | |||
| IIEES | SNGE | Z | Pn | E | 2016-09-30 12:43:29 | -0.27 | y | 333 | 333 | |||
| IIEES | NASN | Z | Pn | E | 2016-09-30 12:43:32 | -0.27 | y | 359 | 82 | |||
| IIEES | CHTH | Z | Pn | E | 2016-09-30 12:43:42 | -0.01 | y | 432 | 26 | |||
| IIEES | DAMV | Z | Pn | E | 2016-09-30 12:43:44 | 0.21 | y | 448 | 37 | |||
| IIEES | YZKH | Z | Pn | E | 2016-09-30 12:43:53 | -0.21 | y | 525 | 89 | |||
