Magnitude |
:2.7 |
| Date & Time (UTC) | 2016-09-30 22:30:16.3 |
| Date & Time (Local) | 1395/7/10 02:00:16.3 |

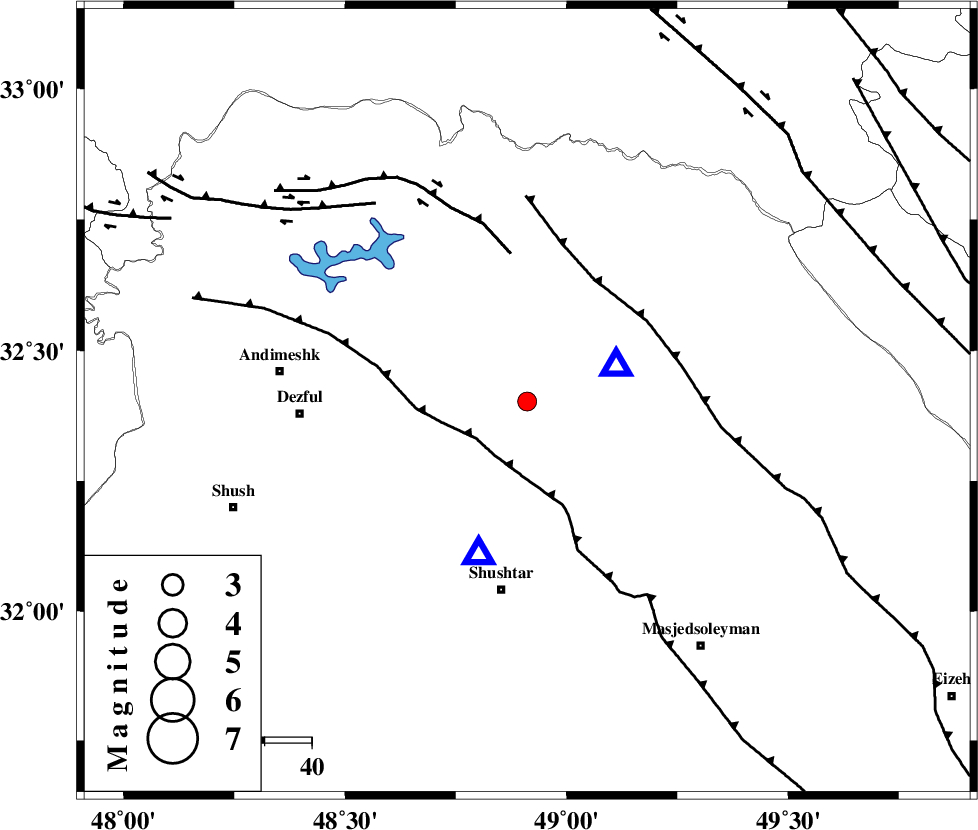

| Location | Lat:32.402 Lon: 48.911 |
| Region | Khoozestan Province, 19 km -West of Lali |
Nearest Cities |
|
| 13 km of Sardasht, Khoozestan Province | |
| 19 km North West of Lali, Khoozestan Province | |
| 20 km North of Gatvand, Khoozestan Province | |
| 23 km North of Samaleh, Khoozestan Province | |
| 23 km North East of Mahur berenji, Khoozestan Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 13 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 30 km | |
| BALARUD_F_Z2 (Length: 58 km) , Distance to epicenter: 32 km | |
| Number of Phases | 10 |
| RMS | 0.3 |
| Number of Stations | 8 |
| Error in Latitude | >5.9 km |
| Error in Longitude | 6.6 km |
| Error in Depth | 9.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 109546 | IIEES | KHMZ | E | 84.5 | 0.27 | 2016-09-30 22:31:12 | 2016-10-01 06:17:00 | n |
| 109547 | IIEES | KHMZ | N | 85.6 | 0.66 | 2016-09-30 22:31:14 | 2016-10-01 06:17:00 | n |
| 109548 | IIEES | ASAO | E | 33.3 | 0.49 | 2016-09-30 22:31:37 | 2016-10-01 06:17:00 | n |
| 109549 | IIEES | ASAO | N | 40.3 | 0.61 | 2016-09-30 22:31:42 | 2016-10-01 06:17:00 | n |
| 109550 | IIEES | GHVR | E | 25.7 | 0.38 | 2016-09-30 22:31:49 | 2016-10-01 06:17:00 | n |
| 109551 | IIEES | GHVR | N | 18.6 | 0.47 | 2016-09-30 22:31:54 | 2016-10-01 06:17:00 | n |
| 109552 | IIEES | SNGE | E | 16.4 | 0.44 | 2016-09-30 22:31:54 | 2016-10-01 06:17:00 | n |
| 109553 | IIEES | SNGE | N | 13.4 | 0.55 | 2016-09-30 22:31:57 | 2016-10-01 06:17:00 | n |
| 109554 | IIEES | NASN | N | 8.6 | 0.63 | 2016-09-30 22:32:09 | 2016-10-01 06:17:00 | n |
| 109555 | IIEES | DAMV | N | 6.7 | 0.55 | 2016-09-30 22:32:33 | 2016-10-01 06:17:00 | n |
| 109556 | IIEES | DAMV | E | 9.8 | 0.66 | 2016-09-30 22:32:34 | 2016-10-01 06:17:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pg | E | 2016-09-30 22:30:45 | 0.18 | y | 178 | 33 | |||
| IIEES | KHMZ | N | Sg | E | 2016-09-30 22:31:07 | -0.09 | y | 178 | 33 | |||
| IIEES | ASAO | Z | Pn | E | 2016-09-30 22:30:56 | 0.33 | y | 260 | 23 | |||
| IIEES | ASAO | N | Sg | E | 2016-09-30 22:31:29 | -0.09 | y | 260 | 23 | |||
| IIEES | GHVR | Z | Pn | E | 2016-09-30 22:31:03 | 0.45 | y | 317 | 43 | |||
| IIEES | SNGE | Z | Pn | E | 2016-09-30 22:31:04 | -0.13 | y | 332 | 335 | |||
| IIEES | NASN | Z | Pn | E | 2016-09-30 22:31:09 | 0.18 | y | 369 | 82 | |||
| IIEES | CHTH | Z | Pn | E | 2016-09-30 22:31:18 | -0.41 | y | 439 | 27 | |||
| IIEES | DAMV | Z | Pn | E | 2016-09-30 22:31:20 | -0.18 | y | 456 | 37 | |||
| IIEES | YZKH | Z | Pn | E | 2016-09-30 22:31:29 | -0.53 | y | 534 | 89 | |||
