Magnitude |
:3.5 |
| Date & Time (UTC) | 2016-09-30 12:35:54.3 |
| Date & Time (Local) | 1395/7/9 16:05:54.3 |

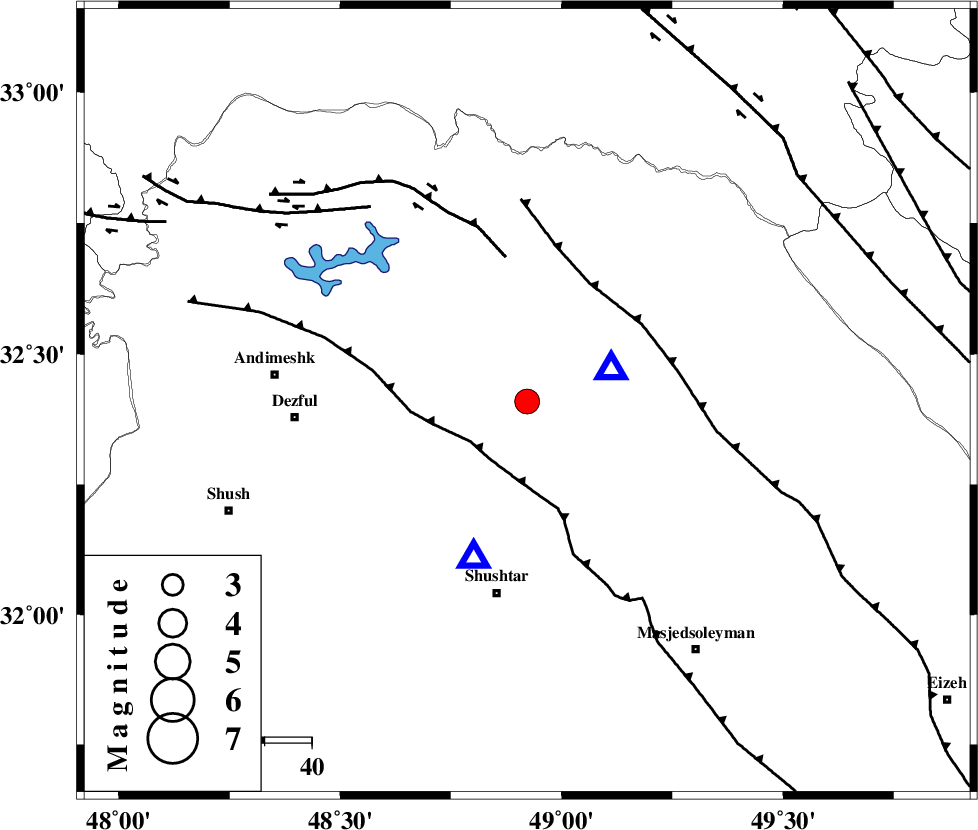

| Location | Lat:32.409 Lon: 48.922 |
| Region | Khoozestan Province, 18 km -West of Lali |
Nearest Cities |
|
| 13 km of Sardasht, Khoozestan Province | |
| 18 km North West of Lali, Khoozestan Province | |
| 21 km North East of Gatvand, Khoozestan Province | |
| 24 km North of Samaleh, Khoozestan Province | |
| 24 km North West of Jaefarabad, Khoozestan Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 15 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 28 km | |
| BALARUD_F_Z2 (Length: 58 km) , Distance to epicenter: 31 km | |
| Number of Phases | 10 |
| RMS | 0.1 |
| Number of Stations | 8 |
| Error in Latitude | >3.8 km |
| Error in Longitude | 4 km |
| Error in Depth | 5.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 109589 | IIEES | KHMZ | N | 472 | 0.44 | 2016-09-30 12:36:49 | 2016-10-01 08:21:00 | n |
| 109590 | IIEES | KHMZ | E | 396.7 | 0.22 | 2016-09-30 12:36:50 | 2016-10-01 08:21:00 | n |
| 109591 | IIEES | ASAO | N | 274.9 | 0.51 | 2016-09-30 12:37:12 | 2016-10-01 08:21:00 | n |
| 109592 | IIEES | ASAO | E | 252.4 | 0.66 | 2016-09-30 12:37:20 | 2016-10-01 08:21:00 | n |
| 109593 | IIEES | GHVR | E | 148.7 | 0.59 | 2016-09-30 12:37:36 | 2016-10-01 08:21:00 | n |
| 109594 | IIEES | SNGE | E | 108.2 | 0.52 | 2016-09-30 12:37:34 | 2016-10-01 08:21:00 | n |
| 109595 | IIEES | SNGE | N | 102.3 | 0.67 | 2016-09-30 12:37:42 | 2016-10-01 08:21:00 | n |
| 109596 | IIEES | DAMV | N | 30.5 | 0.69 | 2016-09-30 12:38:09 | 2016-10-01 08:21:00 | n |
| 109597 | IIEES | DAMV | E | 64.9 | 0.5 | 2016-09-30 12:38:10 | 2016-10-01 08:21:00 | n |
| 109598 | IIEES | GIDE | N | 29 | 0.59 | 2016-09-30 12:38:16 | 2016-10-01 08:21:00 | n |
| 109599 | IIEES | GIDE | E | 20.1 | 0.59 | 2016-09-30 12:38:32 | 2016-10-01 08:21:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pg | E | 2016-09-30 12:36:23 | -0.05 | y | 177 | 33 | |||
| IIEES | KHMZ | N | Sg | E | 2016-09-30 12:36:44 | -0.04 | y | 177 | 33 | |||
| IIEES | ASAO | Z | Pn | E | 2016-09-30 12:36:33 | -0.12 | y | 258 | 23 | |||
| IIEES | ASAO | N | Sg | E | 2016-09-30 12:37:07 | 0.09 | y | 258 | 23 | |||
| IIEES | GHVR | Z | Pn | E | 2016-09-30 12:36:41 | 0.31 | y | 315 | 43 | |||
| IIEES | SNGE | N | Pn | E | 2016-09-30 12:36:43 | 0.07 | y | 331 | 334 | |||
| IIEES | NASN | Z | Pn | E | 2016-09-30 12:36:47 | 0.05 | y | 367 | 82 | |||
| IIEES | CHTH | Z | Pn | E | 2016-09-30 12:36:56 | -0.09 | y | 438 | 27 | |||
| IIEES | DAMV | Z | Pn | E | 2016-09-30 12:36:58 | -0.29 | y | 455 | 37 | |||
| IIEES | GIDE | Z | Pn | E | 2016-09-30 12:37:05 | 0 | y | 509 | 10 | |||
