Magnitude |
:3.5 |
| Date & Time (UTC) | 2016-10-01 08:20:17.3 |
| Date & Time (Local) | 1395/7/10 11:50:17.3 |

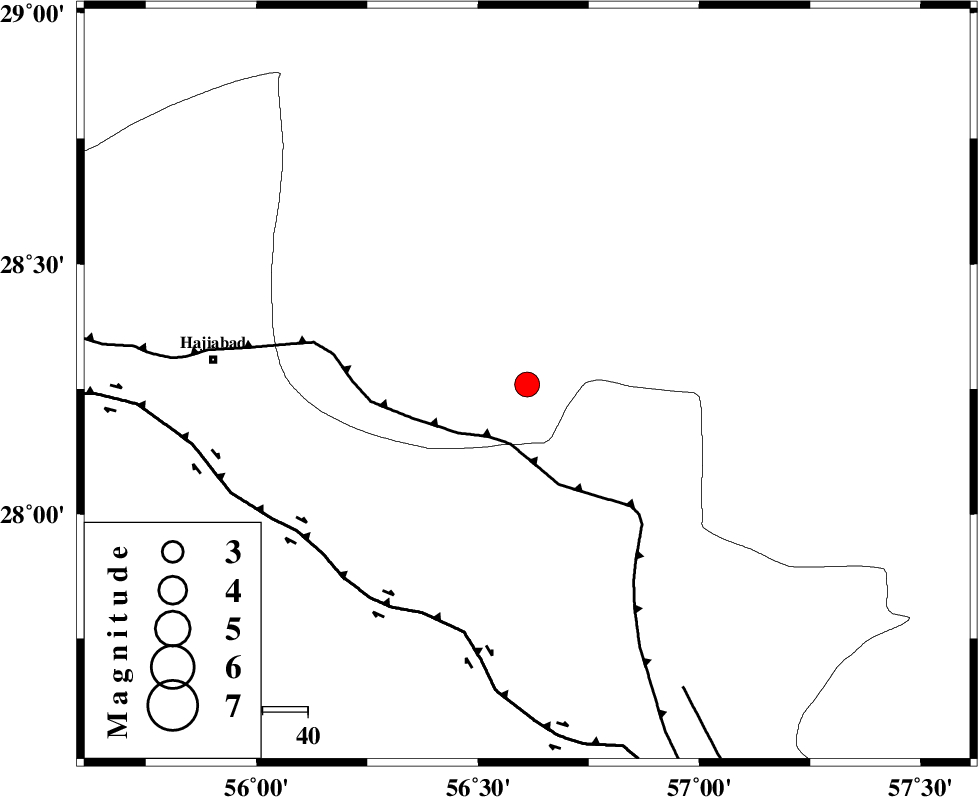

| Location | Lat:28.259 Lon: 56.611 |
| Region | Kerman Province, 70 km -East of Hajiabad |
Nearest Cities |
|
| 28 km West of Sarkhan, Kerman Province | |
| 31 km South East of Shahmaran, Kerman Province | |
| 32 km South East of Arzuieeh, Kerman Province | |
| 46 km North East of Fareqan, Hormozgan Province | |
| 68 km North West of Faryab, Kerman Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 14 km | |
| HZF2 (Length: 437 km) , Distance to epicenter: 56 km | |
| ZENDAN_MINAB_F_Z1 (Length: 183 km) , Distance to epicenter: 76 km | |
| Number of Phases | 15 |
| RMS | 0.3 |
| Number of Stations | 13 |
| Error in Latitude | >4.2 km |
| Error in Longitude | 5.4 km |
| Error in Depth | 8.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 109601 | IIEES | KRBR | E | 707.7 | 0.47 | 2016-10-01 08:21:19 | 2016-10-01 10:55:00 | n |
| 109602 | IIEES | KRBR | N | 435.4 | 0.54 | 2016-10-01 08:21:22 | 2016-10-01 10:55:00 | n |
| 109603 | IIEES | BSRN | N | 25.3 | 0.35 | 2016-10-01 08:22:48 | 2016-10-01 10:55:00 | n |
| 109604 | IIEES | BSRN | E | 41.3 | 0.35 | 2016-10-01 08:22:49 | 2016-10-01 10:55:00 | n |
| 109605 | IIEES | CHBR | N | 28.1 | 0.41 | 2016-10-01 08:22:30 | 2016-10-01 10:55:00 | n |
| 109606 | IIEES | CHBR | E | 31 | 0.55 | 2016-10-01 08:22:33 | 2016-10-01 10:55:00 | n |
| 109607 | IIEES | TABS | N | 15.1 | 0.67 | 2016-10-01 08:23:49 | 2016-10-01 10:55:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2016-10-01 08:20:48 | -0.09 | y | 192 | 4 | |||
| IIEES | KRBR | E | Sg | E | 2016-10-01 08:21:12 | -0.05 | y | 192 | 4 | |||
| IIEES | ZHSF | Z | Pn | E | 2016-10-01 08:21:21 | 2.96 | n | 4 | 433 | 69 | ||
| IIEES | BSRN | Z | Pn | E | 2016-10-01 08:21:24 | 0.46 | y | 477 | 30 | |||
| IIEES | CHBR | Z | Pn | E | 2016-10-01 08:21:24 | -0.15 | y | 485 | 127 | |||
| IIEES | YZKH | Z | Pn | E | 2016-10-01 08:21:27 | 0.58 | y | 497 | 338 | |||
| IIEES | TABS | Z | Pn | E | 2016-10-01 08:21:41 | 1.95 | n | 4 | 600 | 5 | ||
| IIEES | NASN | Z | Pn | E | 2016-10-01 08:21:42 | 0.06 | y | 622 | 325 | |||
| IIEES | SHRT | Z | Pn | E | 2016-10-01 08:21:50 | -0.28 | y | 693 | 30 | |||
| IIEES | SHRO | Z | Pn | E | 2016-10-01 08:22:11 | -0.23 | y | 861 | 356 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-10-01 08:22:14 | -0.19 | y | 878 | 315 | |||
| IIEES | DAMV | Z | Pn | E | 2016-10-01 08:22:19 | -0.42 | y | 927 | 333 | |||
| IIEES | ASAO | Z | Pn | E | 2016-10-01 08:22:21 | -0.54 | y | 937 | 320 | |||
| IIEES | CHTH | Z | Pn | E | 2016-10-01 08:22:28 | -0.07 | y | 993 | 330 | |||
| IIEES | MRVT | Z | Pn | E | 2016-10-01 08:22:34 | -0.01 | y | 1044 | 357 | |||
