Magnitude |
:2.4 |
| Date & Time (UTC) | 2016-10-02 22:45:25.7 |
| Date & Time (Local) | 1395/7/12 02:15:25.7 |

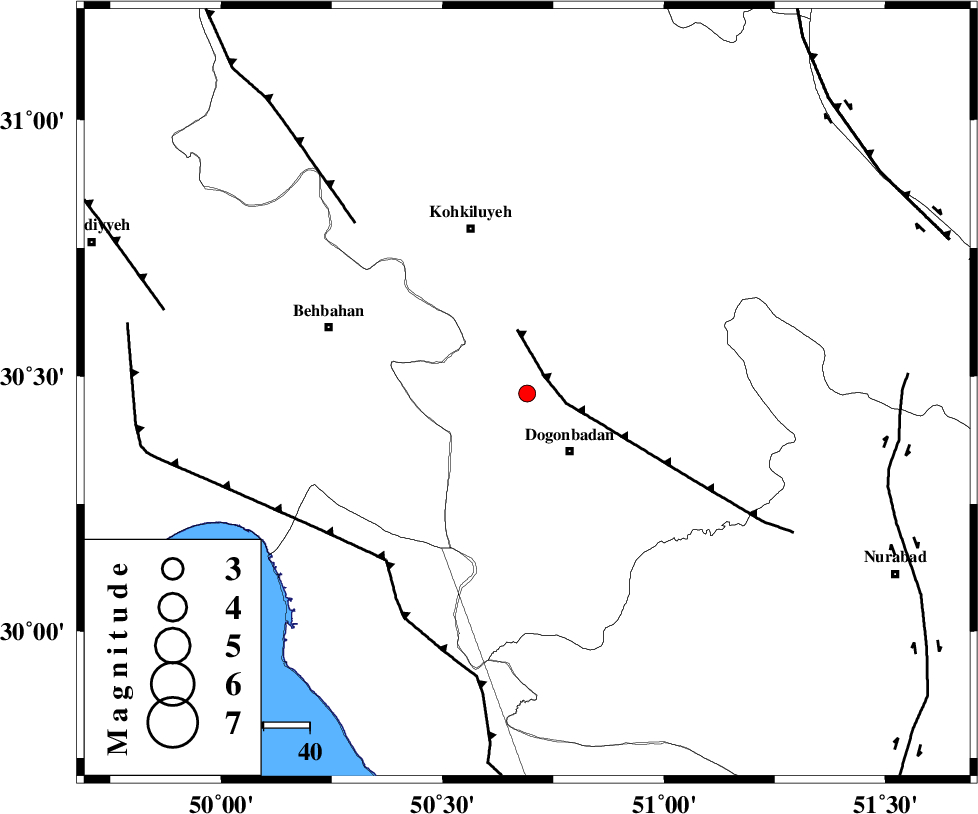

| Location | Lat:30.466 Lon: 50.691 |
| Region | Kohkiluieh va boyerahmad Province, 16 km North of Dogonbadan |
Nearest Cities |
|
| 16 km North of Dogonbadan, Kohkiluieh va boyerahmad Province | |
| 34 km North West of Abdehgah, Kohkiluieh va boyerahmad Province | |
| 38 km South East of Dehdasht, Kohkiluieh va boyerahmad Province | |
| 42 km South East of Mansuriyeh, Khoozestan Province | |
| 45 km South East of Behbahan, Khoozestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MISHAN_F (Length: 76 km) , Distance to epicenter: 5 km | |
| ZFF3 (Length: 125 km) , Distance to epicenter: 47 km | |
| RAG_E_SEFID_F (Length: 84 km) , Distance to epicenter: 47 km | |
| Number of Phases | 9 |
| RMS | 0.1 |
| Number of Stations | 7 |
| Error in Latitude | >3.2 km |
| Error in Longitude | 4 km |
| Error in Depth | 8.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 109638 | IIEES | AHRM | N | 37 | 0.28 | 2016-10-02 22:46:23 | 2016-10-03 07:40:00 | n |
| 109639 | IIEES | NASN | N | 8.4 | 0.18 | 2016-10-02 22:46:57 | 2016-10-03 07:40:00 | n |
| 109640 | IIEES | YZKH | N | 3.5 | 0.43 | 2016-10-02 22:47:16 | 2016-10-03 07:40:00 | n |
| 109641 | IIEES | YZKH | E | 3.8 | 0.77 | 2016-10-02 22:47:21 | 2016-10-03 07:40:00 | n |
| 109642 | IIEES | GHVR | E | 4.2 | 0.42 | 2016-10-02 22:47:21 | 2016-10-03 07:40:00 | n |
| 109643 | IIEES | GHVR | N | 3.5 | 0.47 | 2016-10-02 22:47:26 | 2016-10-03 07:40:00 | n |
| 109644 | IIEES | ASAO | E | 2.9 | 0.23 | 2016-10-02 22:47:27 | 2016-10-03 07:40:00 | n |
| 109645 | IIEES | ASAO | N | 3.5 | 0.61 | 2016-10-02 22:47:33 | 2016-10-03 07:40:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pg | E | 2016-10-02 22:45:56 | -0.09 | y | 187 | 162 | |||
| IIEES | AHRM | N | Sg | E | 2016-10-02 22:46:18 | 0.05 | y | 187 | 162 | |||
| IIEES | NASN | Z | Pn | E | 2016-10-02 22:46:14 | -0.02 | y | 328 | 37 | |||
| IIEES | NASN | N | S | E | 2016-10-02 22:46:49 | -0.05 | y | 328 | 37 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-10-02 22:46:19 | 0.05 | y | 369 | 349 | |||
| IIEES | YZKH | Z | Pn | E | 2016-10-02 22:46:26 | 0.08 | y | 428 | 59 | |||
| IIEES | GHVR | Z | Pn | E | 2016-10-02 22:46:29 | -0.02 | y | 448 | 7 | |||
| IIEES | ASAO | Z | Pn | E | 2016-10-02 22:46:30 | -0.01 | y | 457 | 352 | |||
| IIEES | SHRO | Z | Pn | E | 2016-10-02 22:47:11 | 0.06 | y | 790 | 37 | |||
