Magnitude |
:3.2 |
| Date & Time (UTC) | 2016-10-04 16:05:47.4 |
| Date & Time (Local) | 1395/7/13 19:35:47.4 |

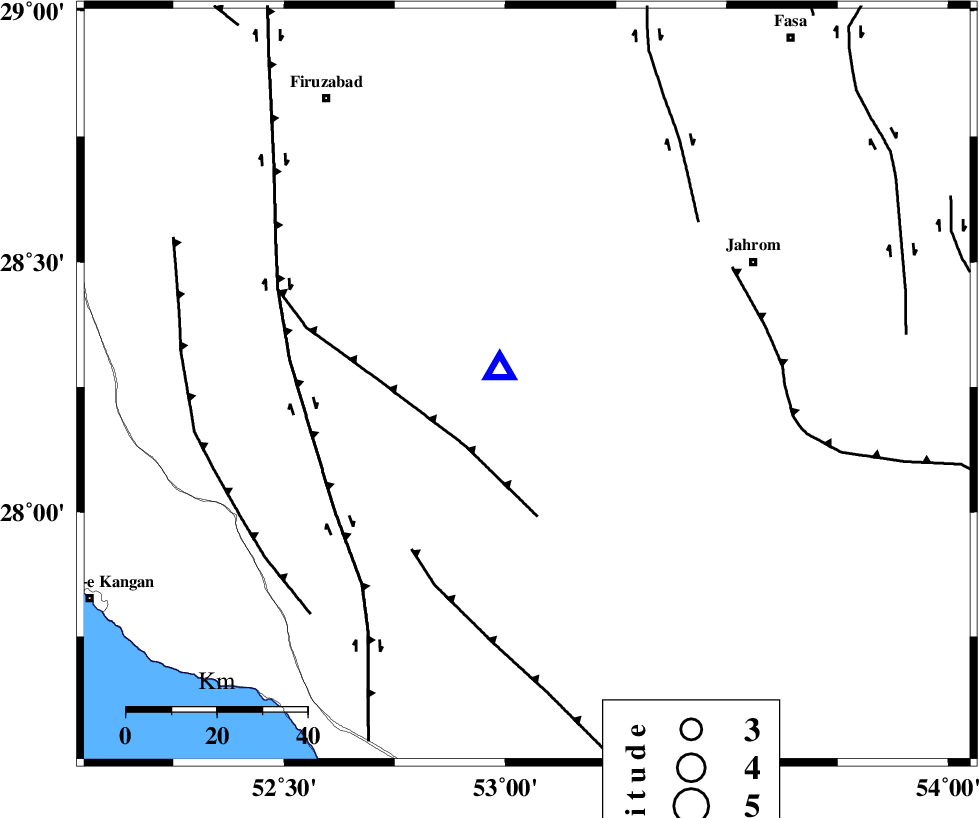

| Location | Lat:28.255 Lon: 53.049 |
| Region | Fars Province, 23 km South of Qir va Karzin |
Nearest Cities |
|
| 14 km North of Seyfabad, Fars Province | |
| 18 km South of Shahrak-e jonubi, Fars Province | |
| 23 km South of Qir va Karzin, Fars Province | |
| 26 km South of Fathabad, Fars Province | |
| 30 km South West of Mobarakabad, Fars Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| QIR_F (Length: 130 km) , Distance to epicenter: 13 km | |
| SABZ_PUSHAN_F_Z2 (Length: 24 km) , Distance to epicenter: 58 km | |
| SABZ_PUSHAN_F_Z1 (Length: 69 km) , Distance to epicenter: 59 km | |
| Number of Phases | 10 |
| RMS | 0.1 |
| Number of Stations | 9 |
| Error in Latitude | >9.5 km |
| Error in Longitude | 4.1 km |
| Error in Depth | 9.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 109709 | IIEES | AHRM | N | 301 | 0.45 | 2016-10-04 16:06:42 | 2016-10-05 06:59:00 | n |
| 109710 | IIEES | KRBR | E | 34.5 | 0.75 | 2016-10-04 16:07:58 | 2016-10-05 06:59:00 | n |
| 109711 | IIEES | KRBR | N | 26.3 | 0.42 | 2016-10-04 16:08:02 | 2016-10-05 06:59:00 | n |
| 109712 | IIEES | NASN | N | 12.4 | 0.48 | 2016-10-04 16:07:53 | 2016-10-05 06:59:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pg | E | 2016-10-04 16:06:17 | 0 | y | 184 | 292 | |||
| IIEES | AHRM | N | Sg | E | 2016-10-04 16:06:39 | -0.01 | y | 184 | 292 | |||
| IIEES | KRBR | Z | Pn | E | 2016-10-04 16:06:45 | 0.02 | y | 409 | 61 | |||
| IIEES | YZKH | Z | Pn | E | 2016-10-04 16:06:54 | 0.17 | y | 482 | 18 | |||
| IIEES | NASN | Z | Pn | E | 2016-10-04 16:06:57 | -0.49 | n | 4 | 504 | 357 | ||
| IIEES | KHMZ | Z | Pn | E | 2016-10-04 16:07:18 | -0.13 | y | 676 | 335 | |||
| IIEES | TABS | Z | Pn | E | 2016-10-04 16:07:23 | -0.14 | y | 713 | 32 | |||
| IIEES | ASAO | Z | Pn | E | 2016-10-04 16:07:28 | 0.08 | y | 755 | 338 | |||
| IIEES | SHRO | Z | Pn | E | 2016-10-04 16:07:46 | -0.18 | y | 904 | 17 | |||
| IIEES | SNGE | Z | Pn | E | 2016-10-04 16:07:50 | 0.07 | y | 931 | 326 | |||
