Magnitude |
:3.3 |
| Date & Time (UTC) | 2016-10-05 07:53:09.6 |
| Date & Time (Local) | 1395/7/14 11:23:09.6 |

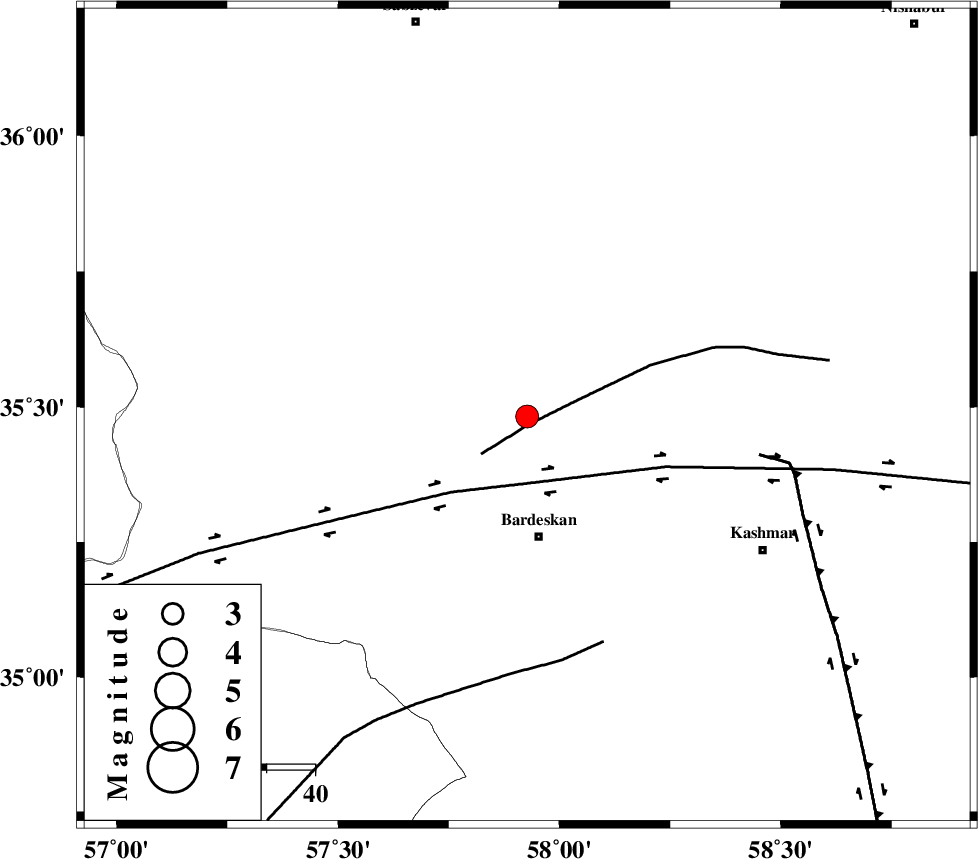

| Location | Lat:35.483 Lon: 57.927 |
| Region | Khorasan(center) Province, 25 km North of Bardeskan |
Nearest Cities |
|
| 13 km North of Kabudan, Khorasan(center) Province | |
| 25 km North of Bardeskan, Khorasan(center) Province | |
| 27 km South West of Ghaleh meidan, Khorasan(center) Province | |
| 36 km North West of Konder, Khorasan(center) Province | |
| 38 km North of Shahrabad, Khorasan(center) Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| BIJVARD_F (Length: 83 km) , Distance to epicenter: 6 km | |
| DORUNEH_F (Length: 713 km) , Distance to epicenter: 23 km | |
| BALHAR_F (Length: 117 km) , Distance to epicenter: 41 km | |
| Number of Phases | 11 |
| RMS | 0.3 |
| Number of Stations | 9 |
| Error in Latitude | >2.6 km |
| Error in Longitude | 5.5 km |
| Error in Depth | 8.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 109713 | IIEES | SHRO | N | 310.7 | 0.36 | 2016-10-05 07:54:02 | 2016-10-05 08:19:00 | n |
| 109714 | IIEES | SHRO | E | 422.6 | 0.43 | 2016-10-05 07:54:08 | 2016-10-05 08:19:00 | n |
| 109715 | IIEES | TABS | N | 299.4 | 0.41 | 2016-10-05 07:54:14 | 2016-10-05 08:19:00 | n |
| 109716 | IIEES | TABS | E | 126.9 | 0.56 | 2016-10-05 07:54:17 | 2016-10-05 08:19:00 | n |
| 109717 | IIEES | BJRD | E | 66.1 | 0.45 | 2016-10-05 07:54:32 | 2016-10-05 08:19:00 | n |
| 109718 | IIEES | SHRT | E | 192 | 0.57 | 2016-10-05 07:54:38 | 2016-10-05 08:19:00 | n |
| 109719 | IIEES | SHRT | N | 126.7 | 0.41 | 2016-10-05 07:54:38 | 2016-10-05 08:19:00 | n |
| 109720 | IIEES | YZKH | N | 39.9 | 0.67 | 2016-10-05 07:55:29 | 2016-10-05 08:19:00 | n |
| 109721 | IIEES | YZKH | E | 34 | 0.54 | 2016-10-05 07:55:34 | 2016-10-05 08:19:00 | n |
| 109722 | IIEES | DAMV | E | 9 | 0.37 | 2016-10-05 07:55:53 | 2016-10-05 08:19:00 | n |
| 109723 | IIEES | NASN | E | 6.8 | 0.44 | 2016-10-05 07:56:00 | 2016-10-05 08:19:00 | n |
| 109724 | IIEES | NASN | N | 7.9 | 0.59 | 2016-10-05 07:56:01 | 2016-10-05 08:19:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHRO | Z | Pg | E | 2016-10-05 07:53:39 | -0.31 | y | 183 | 289 | |||
| IIEES | SHRO | E | Sg | E | 2016-10-05 07:54:01 | -0.08 | y | 183 | 289 | |||
| IIEES | TABS | Z | Pn | E | 2016-10-05 07:53:44 | -0.14 | y | 217 | 200 | |||
| IIEES | TABS | N | Sg | E | 2016-10-05 07:54:11 | 0.34 | y | 217 | 200 | |||
| IIEES | BJRD | Z | Pn | E | 2016-10-05 07:53:48 | -0.15 | y | 250 | 349 | |||
| IIEES | MRVT | Z | Pn | E | 2016-10-05 07:53:54 | 0.83 | y | 292 | 326 | |||
| IIEES | SHRT | Z | Pn | E | 2016-10-05 07:53:54 | -0.12 | y | 298 | 133 | |||
| IIEES | BSRN | Z | Pn | E | 2016-10-05 07:54:07 | -0.21 | y | 406 | 164 | |||
| IIEES | YZKH | Z | Pn | E | 2016-10-05 07:54:14 | 0.06 | y | 461 | 223 | |||
| IIEES | DAMV | Z | Pn | E | 2016-10-05 07:54:24 | -0.13 | y | 540 | 273 | |||
| IIEES | NASN | Z | Pn | E | 2016-10-05 07:54:26 | -0.2 | y | 558 | 239 | |||
