Magnitude |
:2.9 |
| Date & Time (UTC) | 2016-10-06 08:48:59.4 |
| Date & Time (Local) | 1395/7/15 12:18:59.4 |

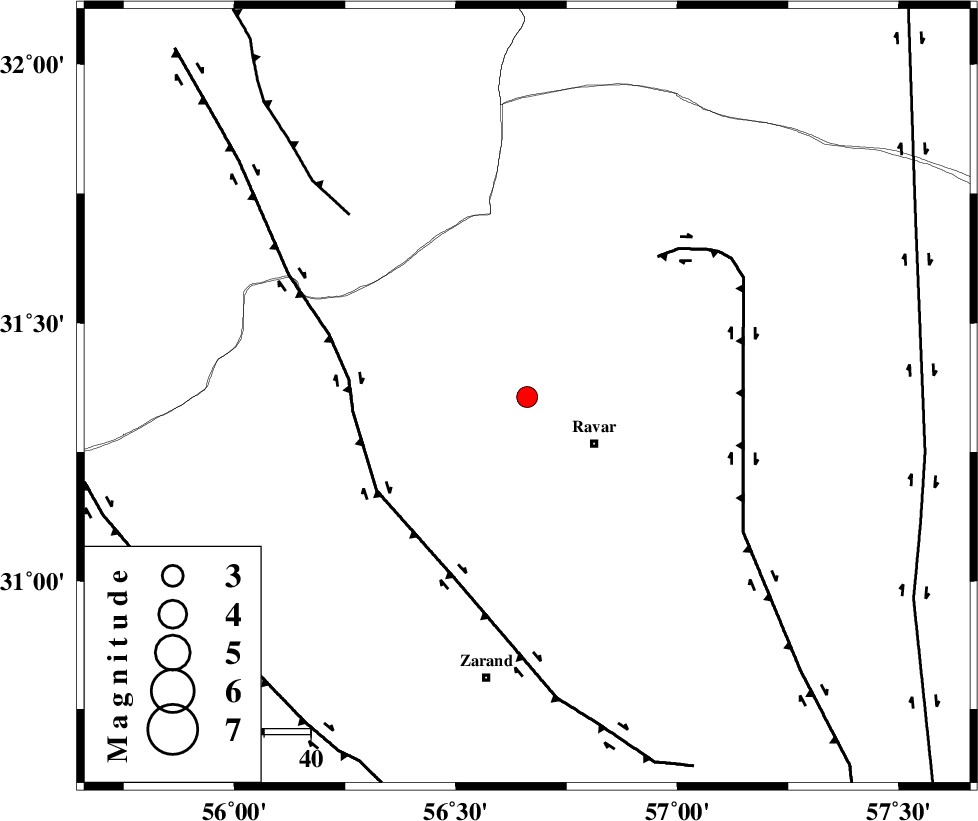

| Location | Lat:31.357 Lon: 56.661 |
| Region | Kerman Province, 18 km -West of Ravar |
Nearest Cities |
|
| 13 km North West of Dehali, Kerman Province | |
| 18 km North West of Ravar, Kerman Province | |
| 33 km North East of Toghroljerd, Kerman Province | |
| 34 km North of Dasht-e khak, Kerman Province | |
| 36 km East of Kuhbanan, Kerman Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 37 km | |
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 41 km | |
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 55 km | |
| Number of Phases | 10 |
| RMS | 0.1 |
| Number of Stations | 9 |
| Error in Latitude | >2.6 km |
| Error in Longitude | 2.1 km |
| Error in Depth | 8.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 109768 | IIEES | KRBR | N | 101.6 | 0.25 | 2016-10-06 08:49:47 | 2016-10-08 06:29:00 | n |
| 109769 | IIEES | KRBR | E | 112 | 0.37 | 2016-10-06 08:49:50 | 2016-10-08 06:29:00 | n |
| 109770 | IIEES | YZKH | E | 213.7 | 0.41 | 2016-10-06 08:50:05 | 2016-10-08 06:29:00 | n |
| 109771 | IIEES | YZKH | N | 75.8 | 0.26 | 2016-10-06 08:50:07 | 2016-10-08 06:29:00 | n |
| 109772 | IIEES | BSRN | E | 101.8 | 0.39 | 2016-10-06 08:50:18 | 2016-10-08 06:29:00 | n |
| 109773 | IIEES | NASN | N | 17.6 | 0.44 | 2016-10-06 08:50:55 | 2016-10-08 06:29:00 | n |
| 109774 | IIEES | SHRO | E | 5.3 | 0.64 | 2016-10-06 08:51:42 | 2016-10-08 06:29:00 | n |
| 109775 | IIEES | SHRO | N | 4.8 | 0.72 | 2016-10-06 08:51:43 | 2016-10-08 06:29:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2016-10-06 08:49:24 | -0.02 | y | 153 | 176 | |||
| IIEES | KRBR | E | Sg | E | 2016-10-06 08:49:43 | -0.04 | y | 153 | 176 | |||
| IIEES | YZKH | Z | Pn | E | 2016-10-06 08:49:35 | 0.05 | y | 227 | 301 | |||
| IIEES | BSRN | Z | Pn | E | 2016-10-06 08:49:37 | -0.2 | y | 243 | 73 | |||
| IIEES | TABS | Z | Pn | E | 2016-10-06 08:49:39 | 0.16 | y | 258 | 9 | |||
| IIEES | NASN | Z | Pn | E | 2016-10-06 08:49:56 | -0.02 | y | 397 | 295 | |||
| IIEES | SHRT | Z | Pn | E | 2016-10-06 08:49:59 | -0.01 | y | 425 | 52 | |||
| IIEES | ZHSF | Z | Pn | E | 2016-10-06 08:50:02 | 0.29 | y | 440 | 115 | |||
| IIEES | SHRO | Z | Pn | E | 2016-10-06 08:50:11 | -0.13 | y | 519 | 354 | |||
| IIEES | MRVT | Z | Pn | E | 2016-10-06 08:50:34 | -0.14 | y | 701 | 356 | |||
