Magnitude |
:2.6 |
| Date & Time (UTC) | 2016-10-06 23:26:01.1 |
| Date & Time (Local) | 1395/7/16 02:56:01.1 |

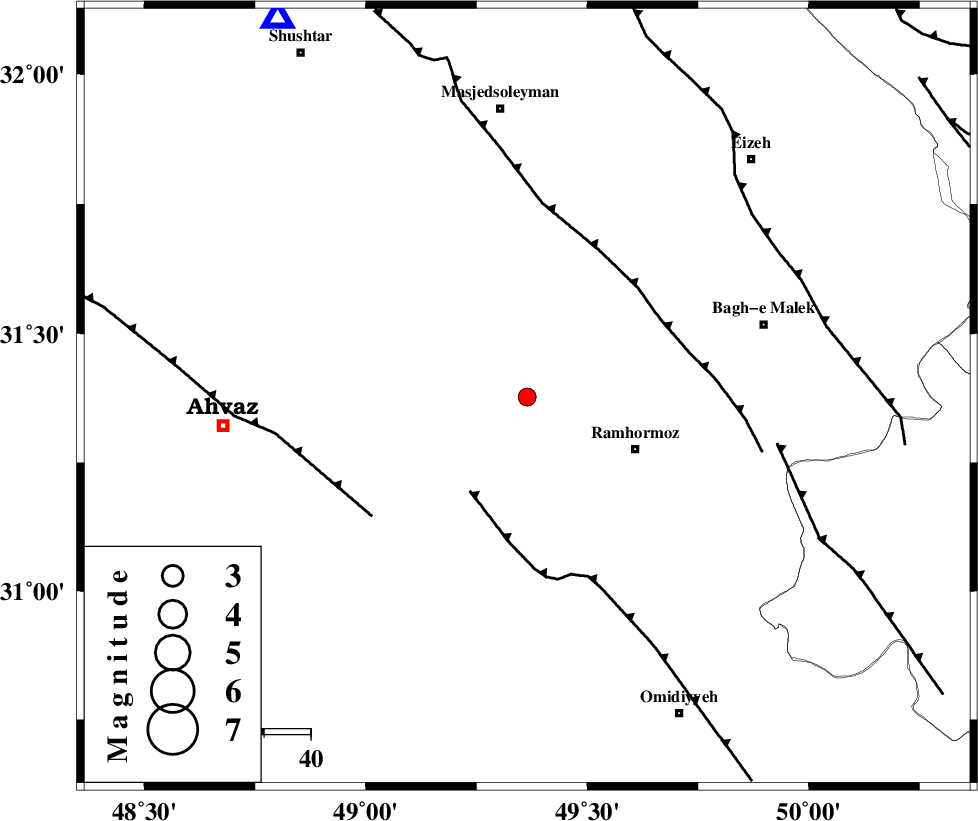

| Location | Lat:31.377 Lon: 49.364 |
| Region | Khoozestan Province, 26 km North-West of Ramhormoz |
Nearest Cities |
|
| 13 km North of Marbacheh, Khoozestan Province | |
| 18 km West of Haftgol, Khoozestan Province | |
| 20 km South of Gazin, Khoozestan Province | |
| 26 km North West of Ramhormoz, Khoozestan Province | |
| 26 km South West of Jaru, Khoozestan Province | |
| Depth | 16 km |
| Agency | |
Faults within 150 km: |
|
| AGHAJARI_F (Length: 88 km) , Distance to epicenter: 24 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 33 km | |
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 42 km | |
| Number of Phases | 9 |
| RMS | 0.1 |
| Number of Stations | 7 |
| Error in Latitude | >2.8 km |
| Error in Longitude | 6.5 km |
| Error in Depth | 3.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 109790 | IIEES | KHMZ | N | 23.5 | 0.74 | 2016-10-06 23:27:27 | 2016-10-08 06:29:00 | n |
| 109791 | IIEES | KHMZ | E | 20.5 | 0.49 | 2016-10-06 23:27:37 | 2016-10-08 06:29:00 | n |
| 109792 | IIEES | ASAO | N | 11.5 | 0.64 | 2016-10-06 23:27:50 | 2016-10-08 06:29:00 | n |
| 109793 | IIEES | ASAO | E | 13.8 | 0.6 | 2016-10-06 23:27:51 | 2016-10-08 06:29:00 | n |
| 109794 | IIEES | NASN | N | 11.1 | 0.18 | 2016-10-06 23:27:38 | 2016-10-08 06:29:00 | n |
| 109795 | IIEES | NASN | E | 12.5 | 0.21 | 2016-10-06 23:27:39 | 2016-10-08 06:29:00 | n |
| 109796 | IIEES | GHVR | N | 12.9 | 0.59 | 2016-10-06 23:28:05 | 2016-10-08 06:29:00 | n |
| 109797 | IIEES | GHVR | E | 10.9 | 0.52 | 2016-10-06 23:28:12 | 2016-10-08 06:29:00 | n |
| 109798 | IIEES | YZKH | E | 3.2 | 0.45 | 2016-10-06 23:28:11 | 2016-10-08 06:29:00 | n |
| 109799 | IIEES | YZKH | N | 2.1 | 0.6 | 2016-10-06 23:28:19 | 2016-10-08 06:29:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pn | E | 2016-10-06 23:26:42 | -0.01 | y | 268 | 12 | |||
| IIEES | KHMZ | N | S | E | 2016-10-06 23:27:12 | -0.02 | y | 268 | 12 | |||
| IIEES | ASAO | Z | Pn | E | 2016-10-06 23:26:53 | -0.09 | y | 357 | 10 | |||
| IIEES | ASAO | N | Sg | E | 2016-10-06 23:27:41 | -0.02 | y | 357 | 10 | |||
| IIEES | NASN | Z | Pn | E | 2016-10-06 23:26:54 | 0.23 | y | 361 | 63 | |||
| IIEES | GHVR | Z | Pn | E | 2016-10-06 23:26:56 | 0.2 | y | 387 | 27 | |||
| IIEES | YZKH | Z | Pn | E | 2016-10-06 23:27:11 | -0.22 | y | 507 | 76 | |||
| IIEES | TABS | Z | Pn | E | 2016-10-06 23:27:44 | -0.12 | y | 771 | 69 | |||
| IIEES | SHRO | Z | Pn | E | 2016-10-06 23:27:48 | -0.15 | y | 802 | 48 | |||
